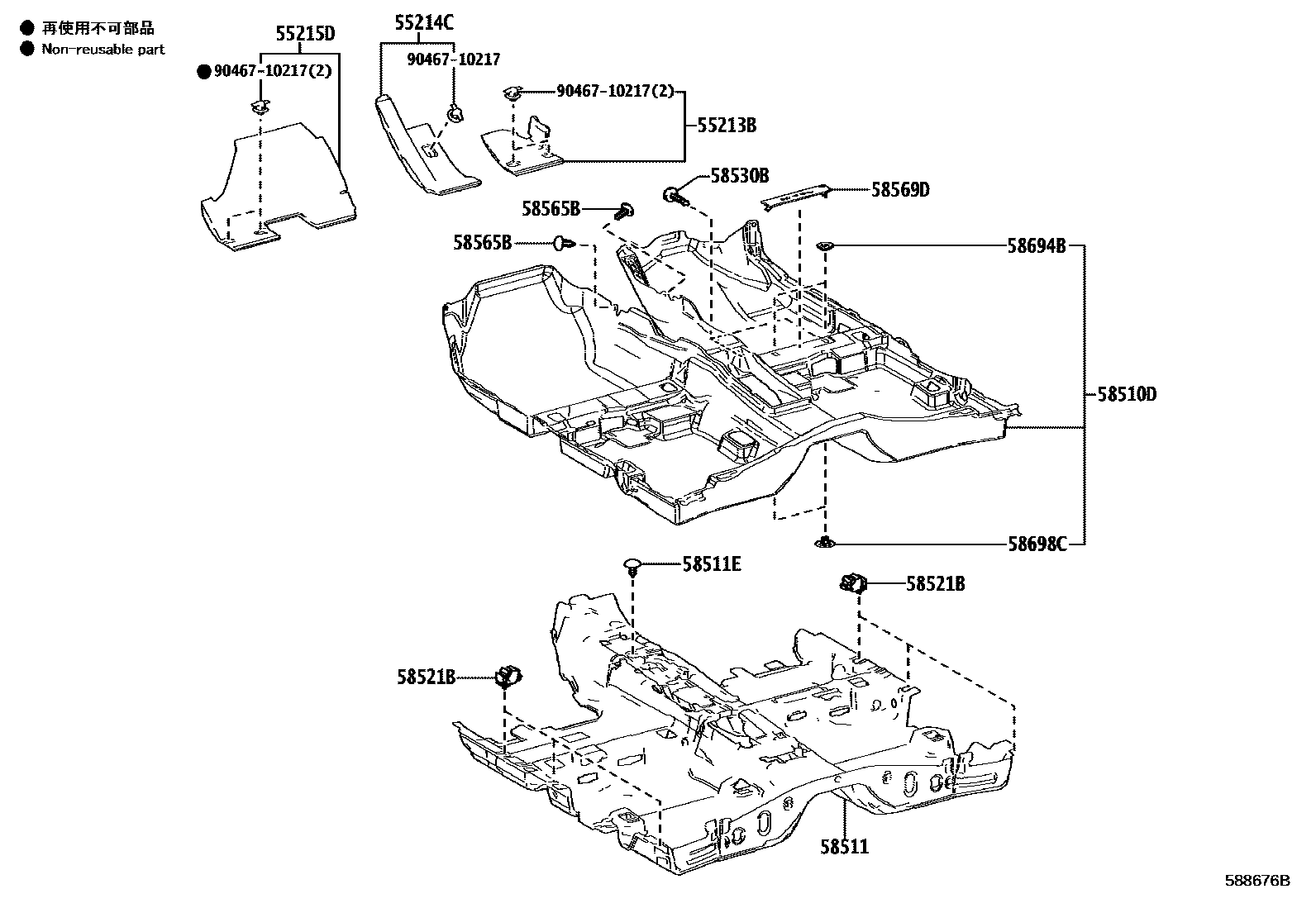

Toyota GR COROLLA — MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM2#,3#
BLACK,TRIM3#
58511MAT, FLOOR, FRONT
58511ECLIP(FOR FRONT FLOOR MAT)
BLACK
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
BLACK,TRIM3#
58565BCLIP
BLACK,TRIM3#
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM3#
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
9046710217
main90467-10217
13 parts on this diagram · 1 diagram in section
MAT & CARPET for Toyota GR COROLLA
This section contains 13 genuine Toyota parts for the MAT & CARPET system of the Toyota GR COROLLA. Key components include: PAD, DASH PANEL INSULATOR, NO.1, PAD, DASH PANEL INSULATOR, NO.2, PAD, DASH PANEL INSULATOR, NO.3, CARPET ASSY, FLOOR, FRONT, MAT, FLOOR, FRONT.
