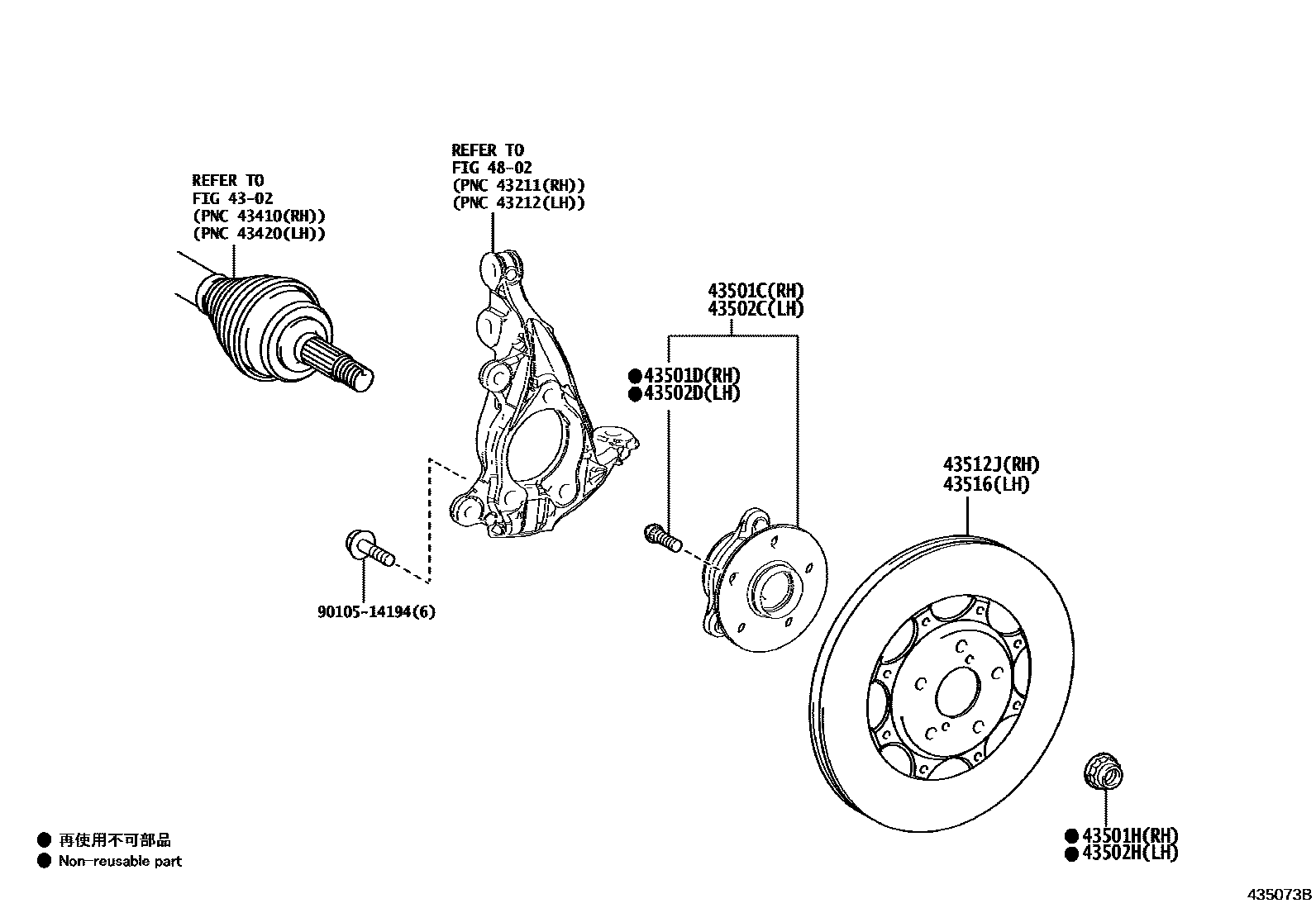

Toyota GR COROLLA — FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-52010i202212-202304

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i202212-202304

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i202212-202304

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-52010i202212-202304

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i202212-202304

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i202212-202304

43512JDISC, FRONT RH

main43512-52180i202212-202304

43516DISC, FRONT LH

main43516-52020i202212-202304

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9010514194

main90105-14194

11 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota GR COROLLA

This section contains 11 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota GR COROLLA. Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), NUT (FOR FRONT AXLE SHAFT RH), HUB SUB-ASSY, FRONT AXLE, LH.
