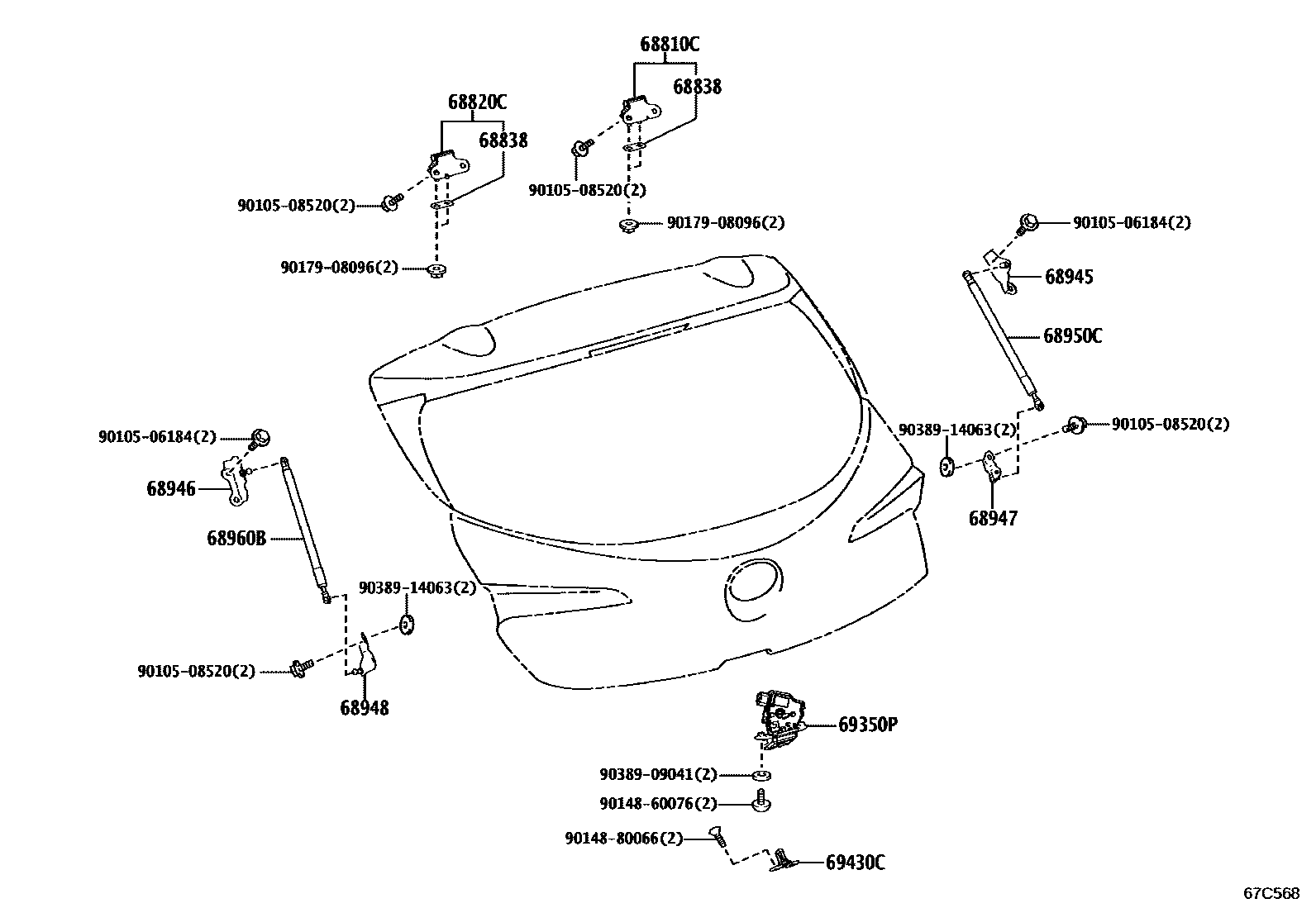

Toyota GR COROLLA — BACK DOOR LOCK & HANDLE
68810CHINGE ASSY, BACK DOOR, RH
68820CHINGE ASSY, BACK DOOR, LH
68838PAD, BACK DOOR HINGE, NO.1
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68950CSTAY ASSY, BACK DOOR, RH
68960BSTAY ASSY, BACK DOOR, LH
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69430CSTRIKER ASSY, BACK DOOR LOCK
9010506184
main90105-06184
9010508520
main90105-08520
9014860076
main90148-60076
9014880066
main90148-80066
9017908096
main90179-08096
9038909041
main90389-09041
9038914063
main90389-14063
18 parts on this diagram · 1 diagram in section
BACK DOOR LOCK & HANDLE for Toyota GR COROLLA
This section contains 18 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota GR COROLLA. Key components include: HINGE ASSY, BACK DOOR, RH, HINGE ASSY, BACK DOOR, LH, PAD, BACK DOOR HINGE, NO.1, BRACKET, BACK DOOR DAMPER STAY, UPPER RH, BRACKET, BACK DOOR DAMPER STAY, UPPER LH.
