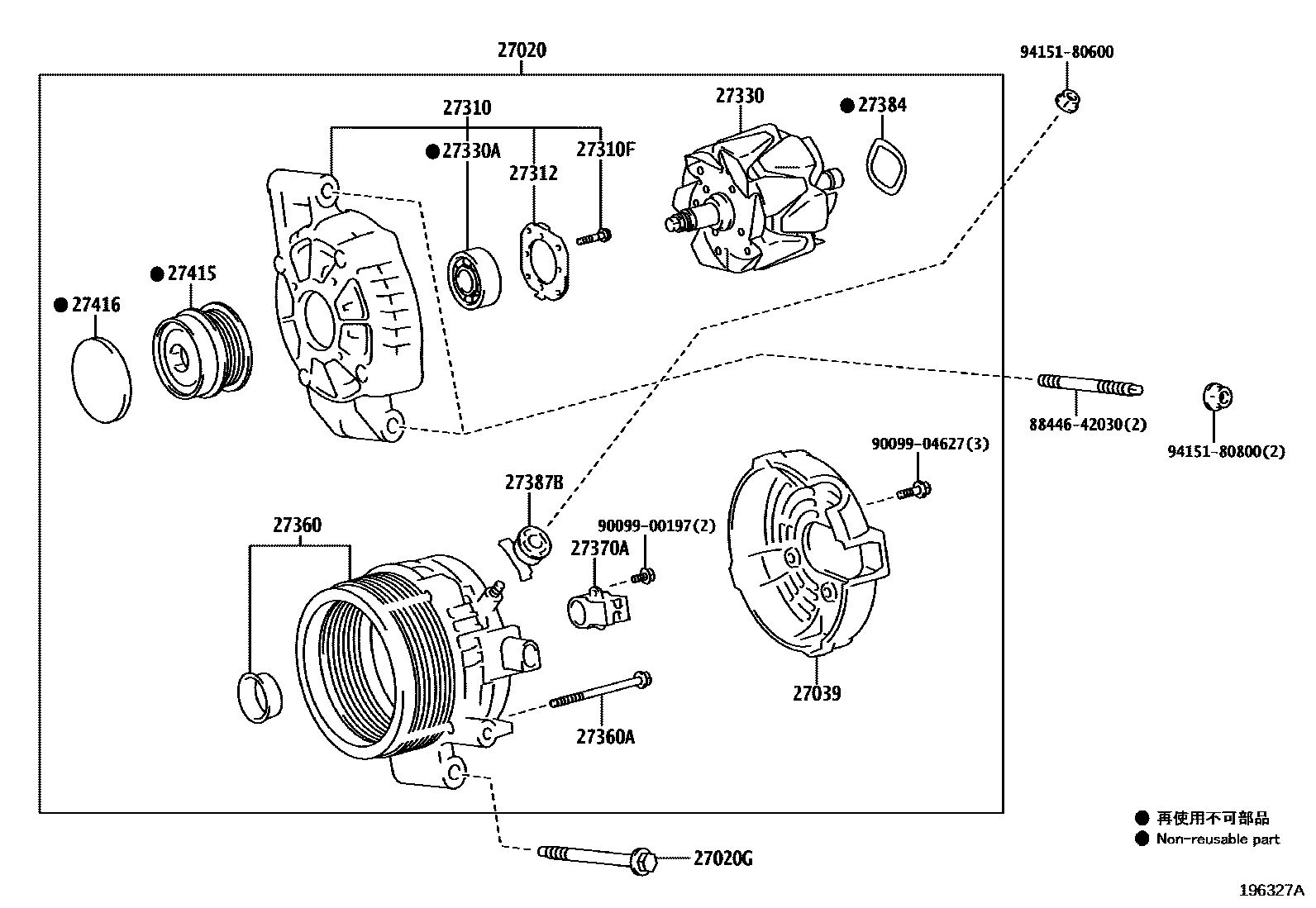

Toyota GR COROLLA — ALTERNATOR

27020ALTERNATOR ASSY

main27060-18020i202212-202304

27020GBOLT, NO.2(FOR ALTERNATOR)

main90119-08C78i202212-202304

27039COVER, ALTERNATOR REAR END

main27039-37220i202212-202304

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-24150i202212-202304

27310FSCREW(FOR ALTERNATOR DRIVE END FRAME)

main90099-00268×4i202212-202304

27312PLATE, RETAINER

main27312-72100i202212-202304

27330ROTOR ASSY, ALTERNATOR

main27330-47330i202212-202304

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10223i202212-202304

27360COIL ASSY, ALTERNATOR

main27360-18040i202212-202304

27360ABOLT(FOR ALTERNATOR COIL)

main90099-04626×4i202212-202304

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i202212-202304

27384WASHER

main27384-38130i202212-202304

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130i202212-202304

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0W280i202212-202304

27416CAP, ALTERNATOR PULLEY

main27416-0W050i202212-202304

8844642030BOLT, IDLE PULLEY

main88446-42030

9009900197

main90099-00197

9009904627

main90099-04627

9415180600

main94151-80600

9415180800

main94151-80800

20 parts on this diagram · 1 diagram in section

ALTERNATOR for Toyota GR COROLLA

This section contains 20 genuine Toyota parts for the ALTERNATOR system of the Toyota GR COROLLA. Key components include: ALTERNATOR ASSY, BOLT, NO.2(FOR ALTERNATOR), COVER, ALTERNATOR REAR END, FRAME ASSY, DRIVE END, ALTERNATOR, SCREW(FOR ALTERNATOR DRIVE END FRAME).
