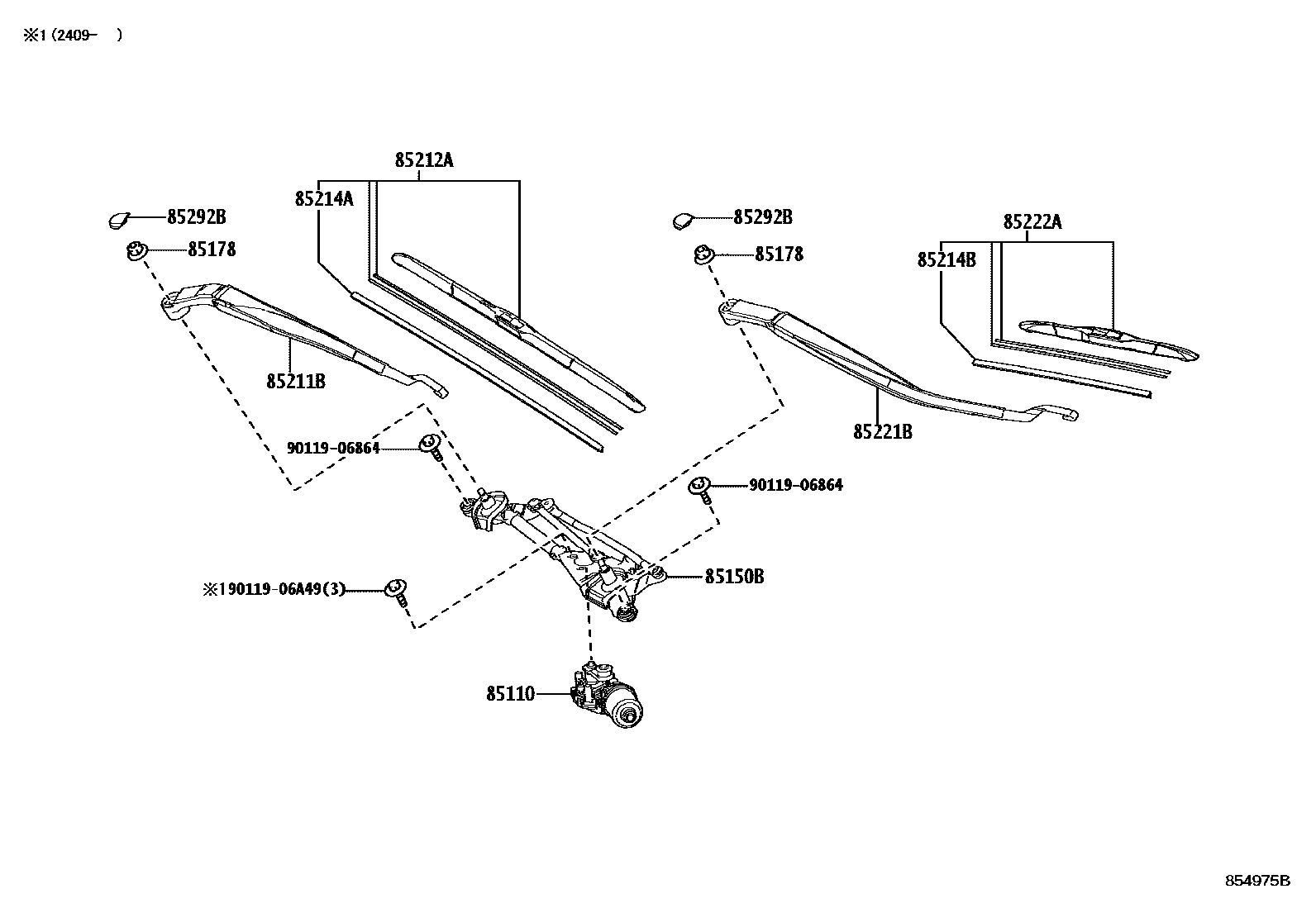

Toyota GR COROLLA — WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12C30iGZEA14..LHD202409

main85110-12C40iGZEA14..RHD202409

85150BLINK ASSY, WIPER

main85150-12B81iGZEA14..LHD202409

main85150-12B90iGZEA14..02S202210-202304

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iGZEA14..02S202210-202304

85211BARM, FRONT WIPER, RH

main85211-12660iGZEA14..LHD202409

main85211-12700iGZEA14..RHD202409

85212ABLADE, FR WIPER, RH

main85212-12610iGZEA14..RHD202409

main85212-52220iGZEA14..LHD202409

85214ARUBBER, WIPER, RH

main85214-28080iGZEA14..02S202210-202304

main85214-68030iGZEA14..LHD202210-202409

85214BRUBBER, WIPER, LH

main85214-28080iGZEA14..LHD202409

main85214-68030iGZEA14..02S202210-202304

85221BARM, FRONT WIPER, LH

main85221-02411iGZEA14..BZ202409

main85221-12591iGZEA14..GEN202210-202409

main85221-12630iGZEA14..RHD..05S202210-202409

85222ABLADE, FR WIPER, LH

main85222-12A80iGZEA14..02S202210-202304

main85222-12A90iGZEA14..GEN202210-202409

main85222-12B00iGZEA14..BZ202409

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iGZEA14202409

9011906864

main90119-06864

9011906A49

main90119-06A49

12 parts on this diagram · 2 diagrams in section
