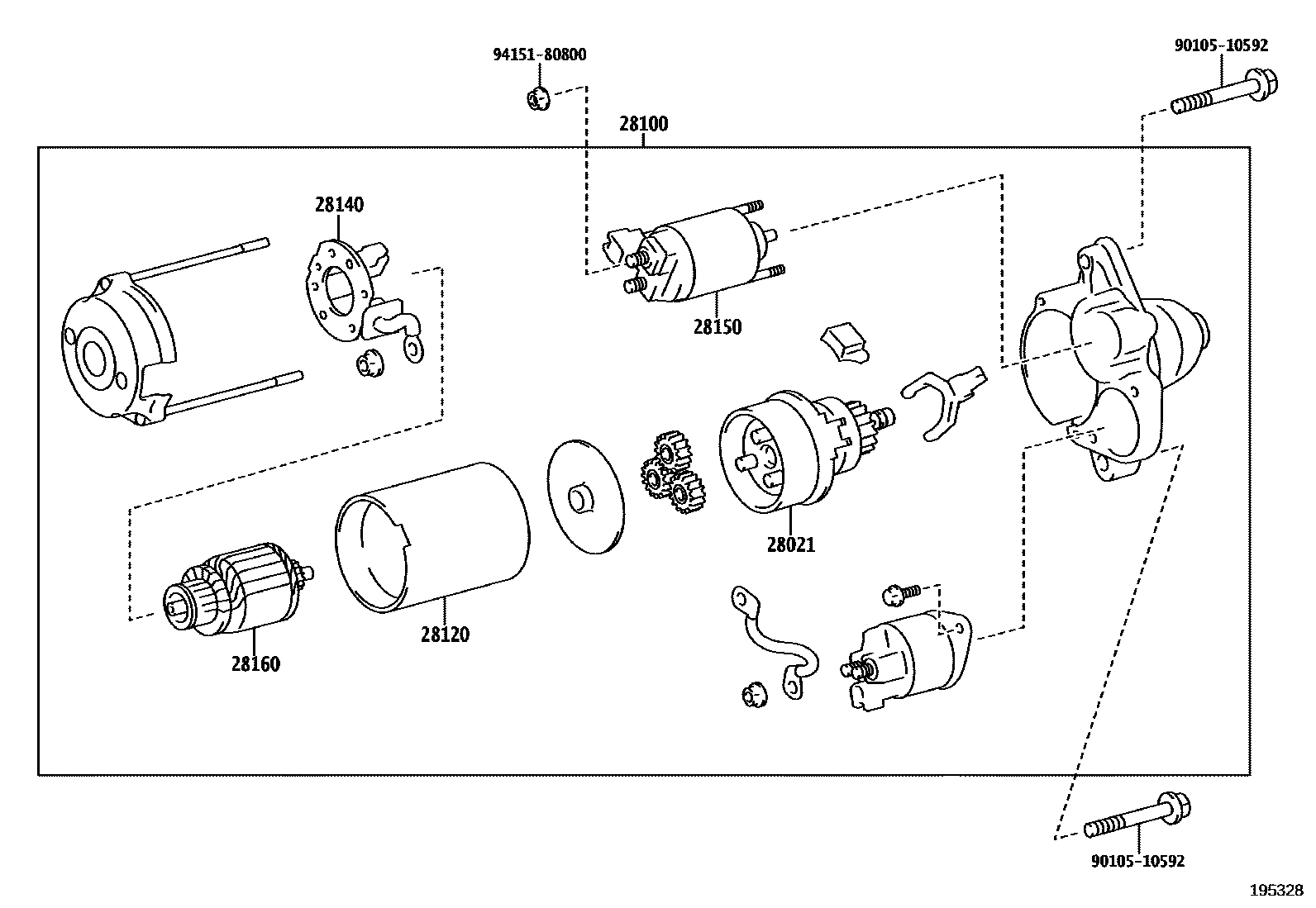

Toyota GR COROLLA — STARTER

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-25070iG16EGTS..GZEA14..02S202210-202304

28100STARTER ASSY

main28100-18010iG16EGTS..GZEA14..02S202210-202304

12V 1.3KW

main28100-18030iG16EGTS..GZEA14..8FC..ARL202409

12V 2.0KW

28120YOKE ASSY, STARTER

main28120-18010iG16EGTS..GZEA14..05S202210-202409

main28120-18030iG16EGTS..GZEA14..8FC..ARL202409

28140HOLDER ASSY, STARTER BRUSH

main28140-37050iG16EGTS..GZEA14..6F..ARL;G16EGTS..GZEA14..BZ,GEN,MA,TH202409

main28140-38070iG16EGTS..GZEA14..8FC..ARL202409

28150SWITCH ASSY, MAGNET STARTER

main28150-18010iG16EGTS..GZEA14..6F..ARL;G16EGTS..GZEA14..BZ,GEN,MA,TH202409

main28150-47260iG16EGTS..GZEA14..8FC..ARL202409

28160ARMATURE ASSY, STARTER

main28160-31090iG16EGTS..GZEA14..02S202210-202304

main28160-36110iG16EGTS..GZEA14..8FC..ARL202409

9010510592

main90105-10592

9415180800

main94151-80800

8 parts on this diagram · 1 diagram in section
