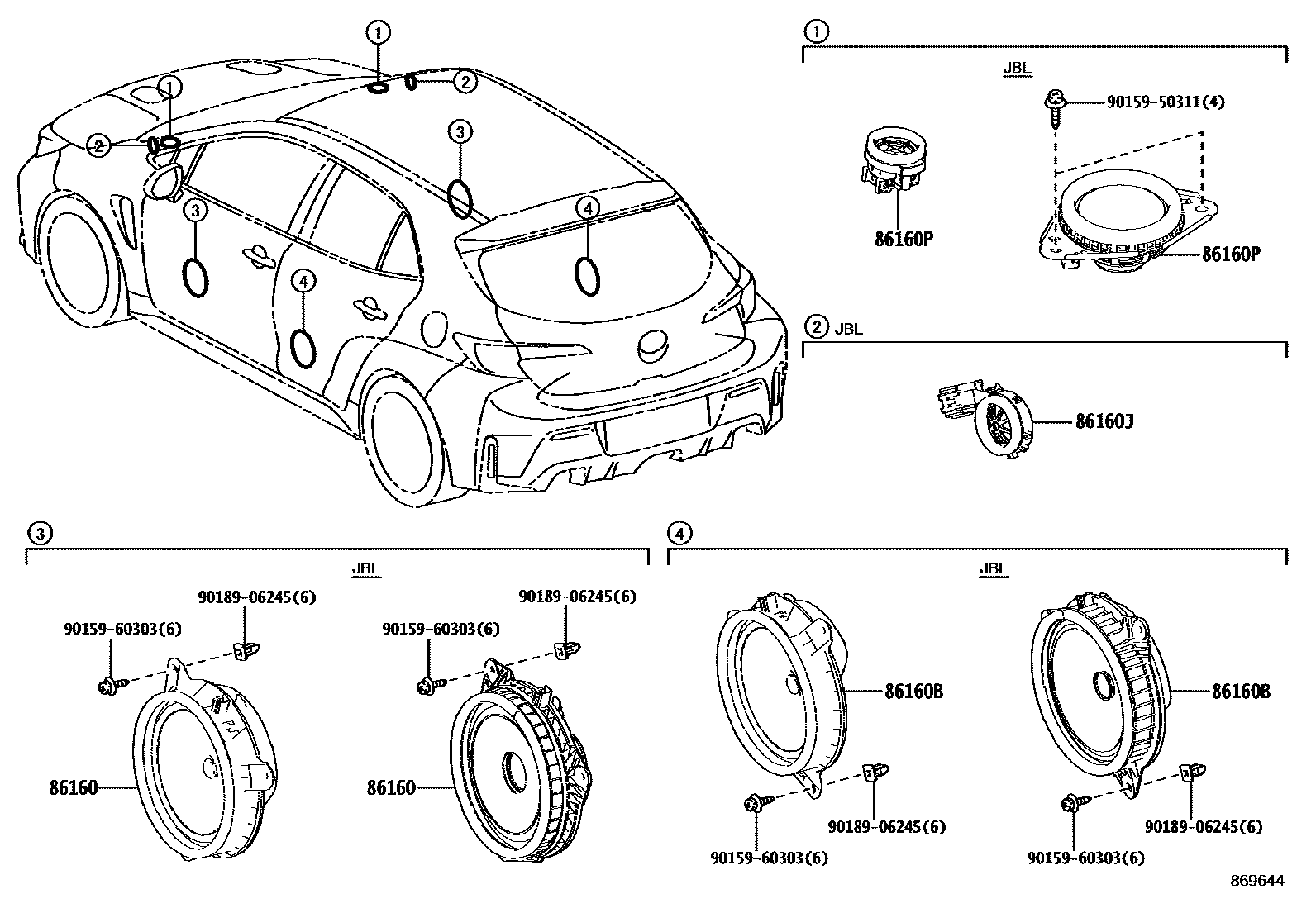

Toyota GR COROLLA — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-12A00×2iGZEA14..ARL202409

main86160-1A210×2iGZEA14..02S202210-202304

86160BSPEAKER ASSY, REAR

main86160-1A210×2iGZEA14..05S202210-202409

main86160-42170×2iGZEA14..ARL202409

86160JSPEAKER ASSY, FRONT NO.3

main86150-12240iGZEA14..ARL202409

RH

main86150-12250iGZEA14..ARL202409

LH

86160PSPEAKER ASSY, FRONT NO.2

main86150-12230×2iGZEA14..ARL202409

main86160-52340×2iGZEA14..05S202210-202409

9015950311

main90159-50311

9015960303

main90159-60303

9018906245

main90189-06245

7 parts on this diagram · 1 diagram in section
