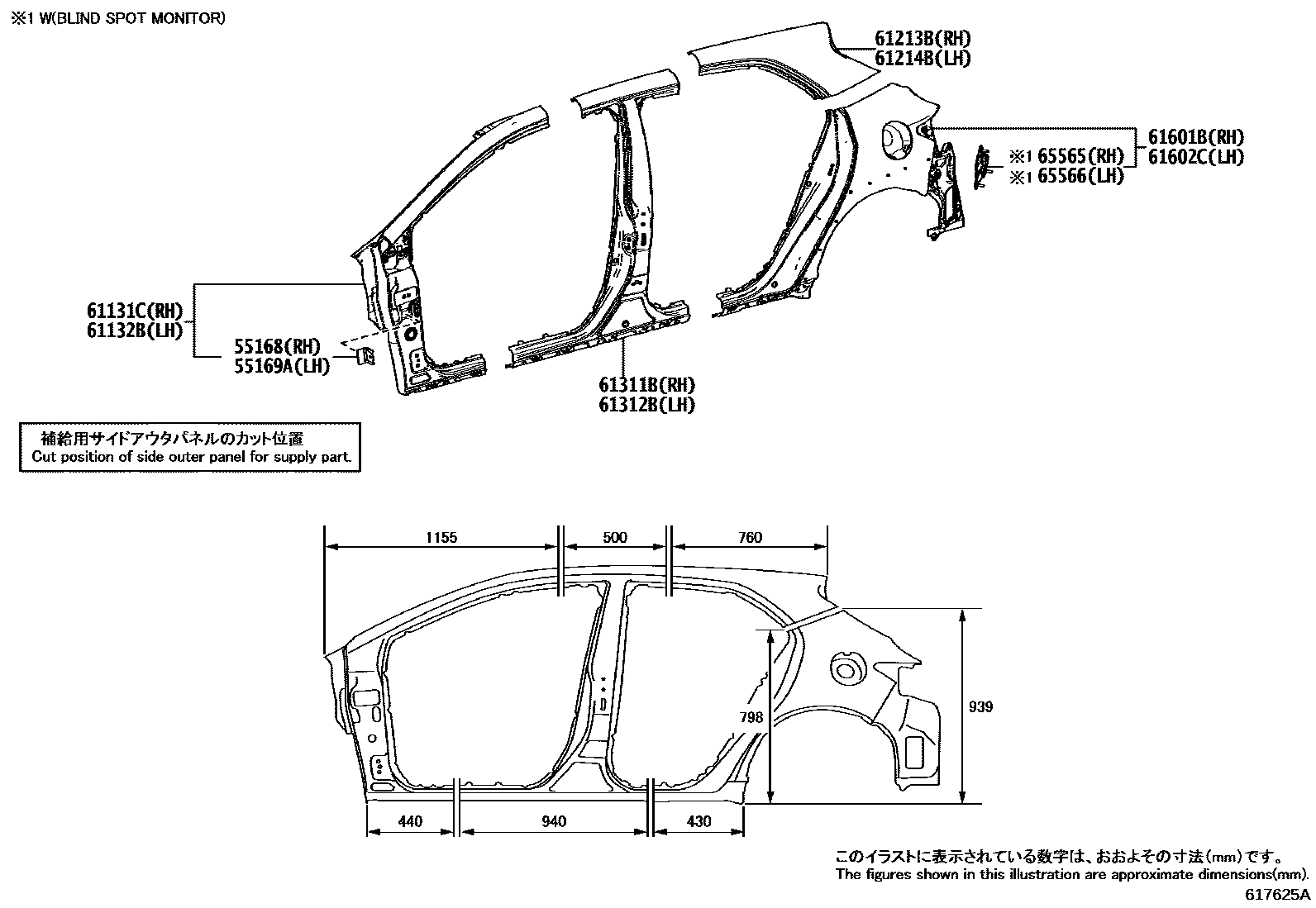

Toyota GR COROLLA — SIDE MEMBER
55168BRACKET, FRONT FENDER MOUNTING, RH
55169ABRACKET, FRONT FENDER MOUNTING, LH
61131CPILLAR, FRONT BODY, OUTER RH
61132BPILLAR, FRONT BODY, OUTER LH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61214BRAIL, ROOF SIDE, OUTER NO.2 LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61601BPANEL SUB-ASSY, QUARTER, RH
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
61602CPANEL SUB-ASSY, QUARTER, LH
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
65565PATCH, SIDE PANEL REAR END, RH
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
65566PATCH, SIDE PANEL REAR END, LH
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
12 parts on this diagram · 3 diagrams in section
SIDE MEMBER for Toyota GR COROLLA
This section contains 82 genuine Toyota parts for the SIDE MEMBER system of the Toyota GR COROLLA. Key components include: BRACKET, FRONT FENDER MOUNTING, RH, BRACKET, FRONT FENDER MOUNTING, LH, PILLAR SUB-ASSY, FRONT BODY, INNER RH, PILLAR SUB-ASSY, FRONT BODY, INNER LH, REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH.
