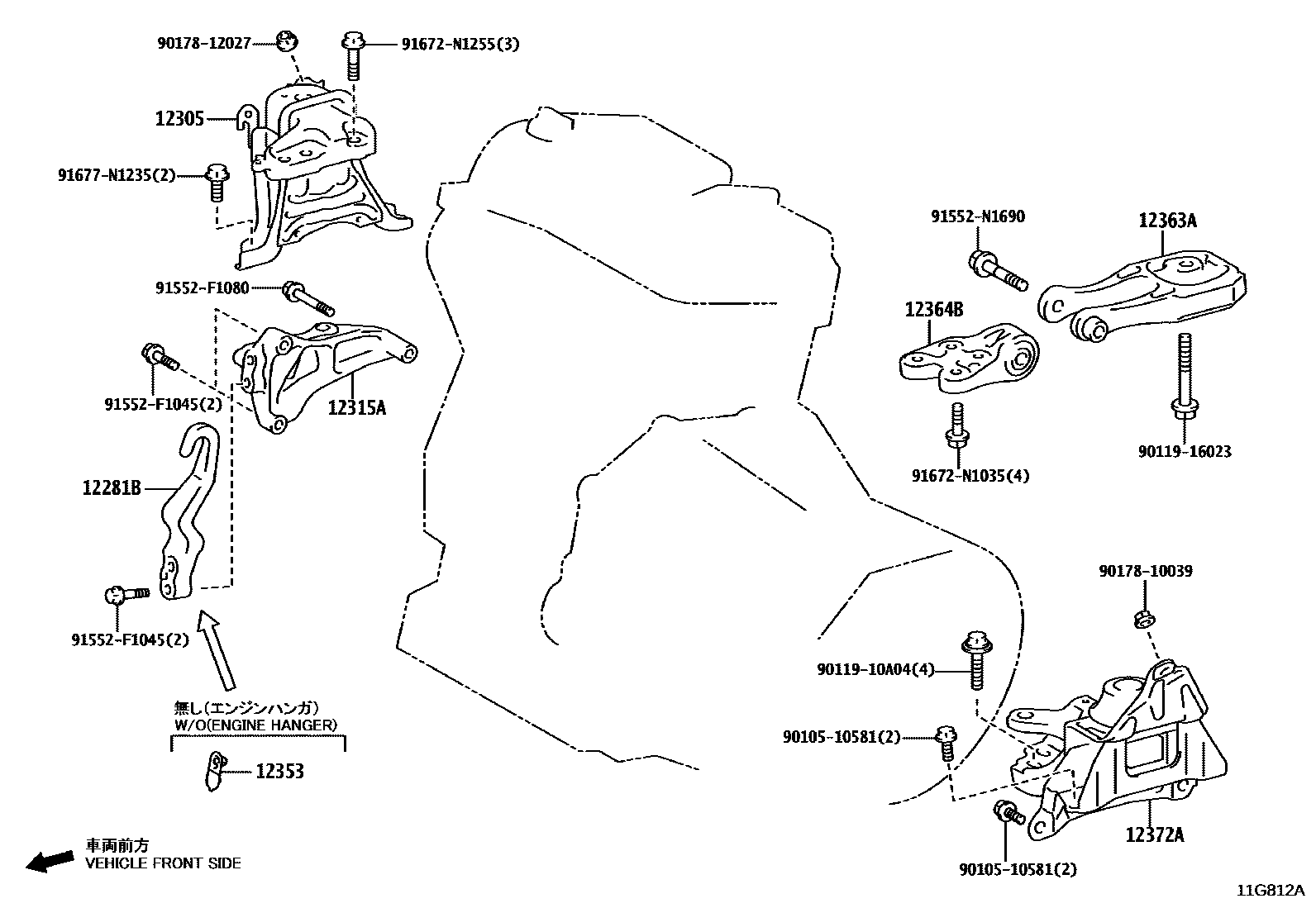

Toyota GR COROLLA — MOUNTING

12281BHANGER, ENGINE, NO.1

main12281-25030iG16EGTS..GZEA14..05S202210-202409

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-18060iG16EGTS..GZEA14..02S202210-202304

main12305-18090iG16EGTS..GZEA14..8FC202409

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-18010iG16EGTS..GZEA14..05S202210-202409

12353CAP, ENGINE MOUNTING BRACKET

main12353-15010iG16EGTS..GZEA14..05S202210-202409

12363AROD, ENGINE MOVING CONTROL

main12363-18010iG16EGTS..GZEA14..05S202210-202409

main12363-18030iG16EGTS..GZEA14..8FC202409

12364BROD, ENGINE MOVING CONTROL, NO.2

main12364-18020iG16EGTS..GZEA14..05S202210-202409

main12364-18040iG16EGTS..GZEA14..8FC202409

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-18020iG16EGTS..GZEA14202210-202408

main12372-18021iG16EGTS..GZEA14..6F202409

main12372-18070iG16EGTS..GZEA14..8FC202409

9010510581

main90105-10581

9011910A04

main90119-10A04

9011916023

main90119-16023

9017810039

main90178-10039

9017812027

main90178-12027

91552F1045

main91552-F1045

91552F1080

main91552-F1080

91552N1690

main91552-N1690

91672N1035

main91672-N1035

91672N1255

main91672-N1255

91677N1235

main91677-N1235

18 parts on this diagram · 1 diagram in section
