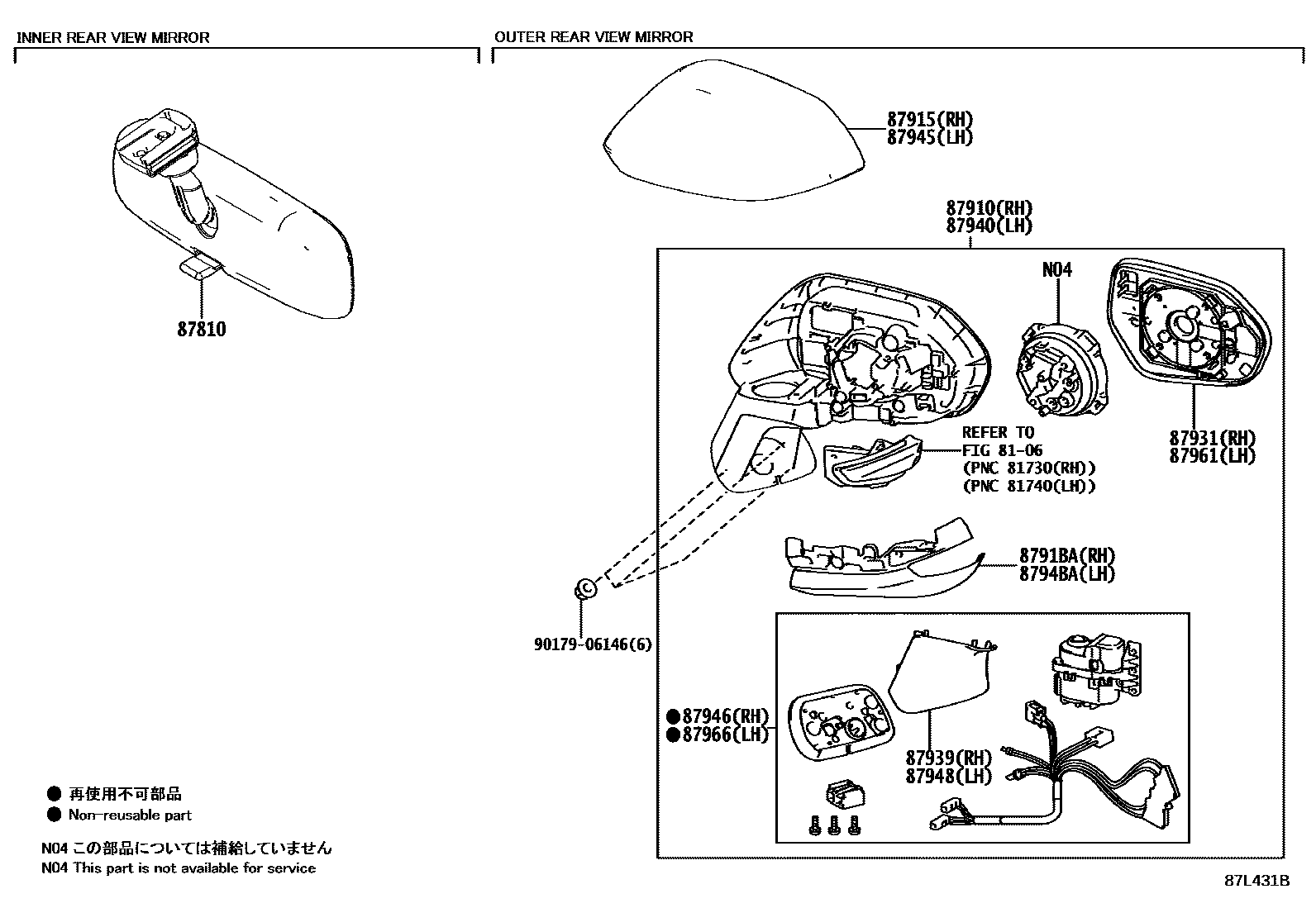

Toyota GR COROLLA — MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
87915COVER, OUTER MIRROR, RH
BLACK,040 ,1L5 ,202 ,3U5 ,8W9
8791BACOVER, OUTER MIRROR, RH NO.3
87931OUTER MIRROR, RH
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
87945COVER, OUTER MIRROR, LH
BLACK,040 ,1L5 ,202 ,3U5 ,8W9
87946RETRACTOR, OUTER MIRROR, RH
8794BACOVER, OUTER MIRROR, LH NO.3
87961MIRROR OUTER, LH
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)
87966RETRACTOR, OUTER MIRROR, LH
9017906146
main90179-06146
15 parts on this diagram · 1 diagram in section
