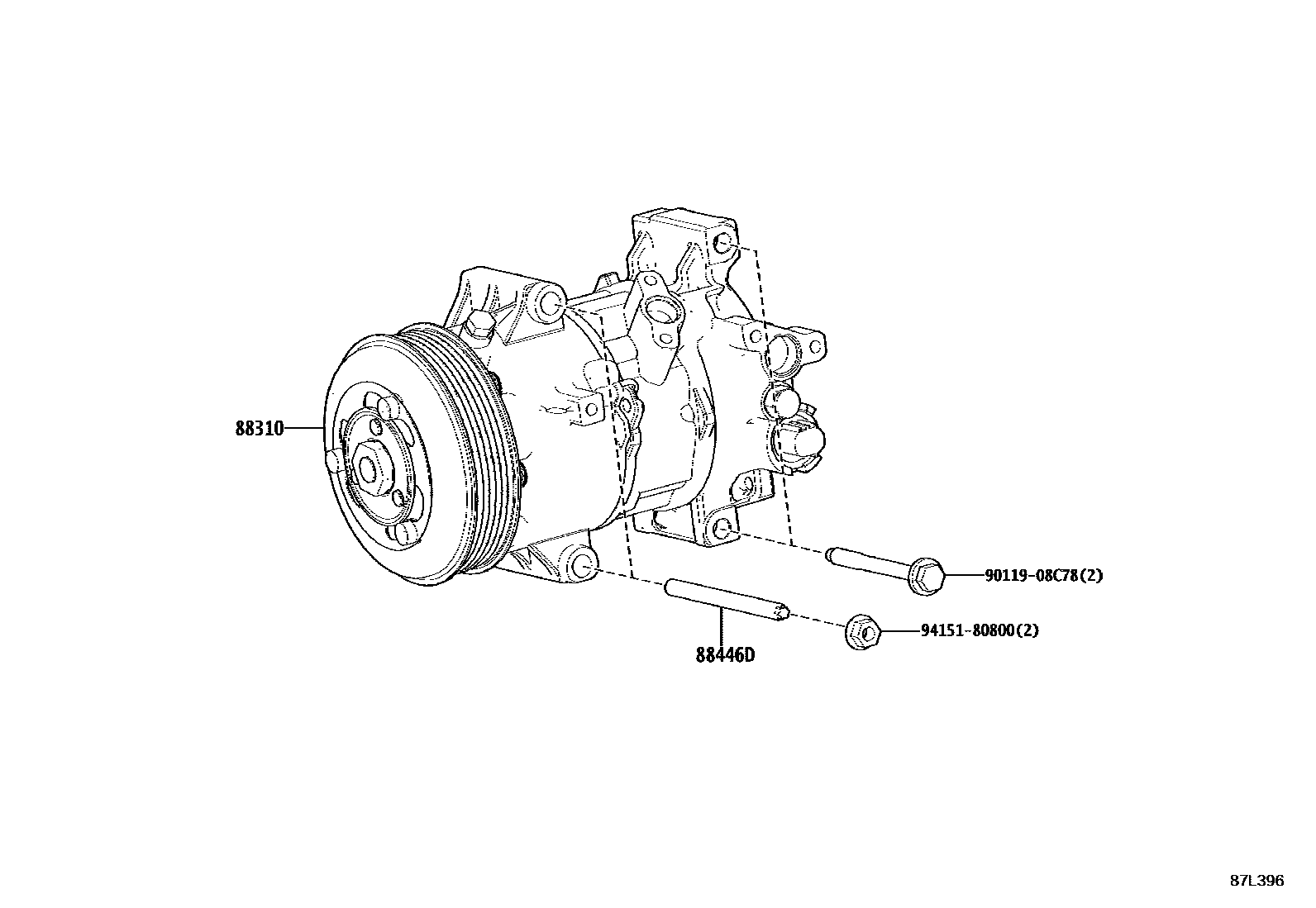

Toyota GR COROLLA — HEATING & AIR CONDITIONING - COMPRESSOR

88310COMPRESSOR ASSY, W/PULLEY

main88310-12B60i202409

main88310-12B70i202409

88446DBOLT, COOLER

main88446-42030×2i202409

9011908C78

main90119-08C78

9415180800

main94151-80800

4 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota GR COROLLA

This section contains 4 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota GR COROLLA. Key components include: COMPRESSOR ASSY, W/PULLEY, BOLT, COOLER.
