Toyota GR COROLLA — FRONT DOOR WINDOW REGULATOR & HINGE

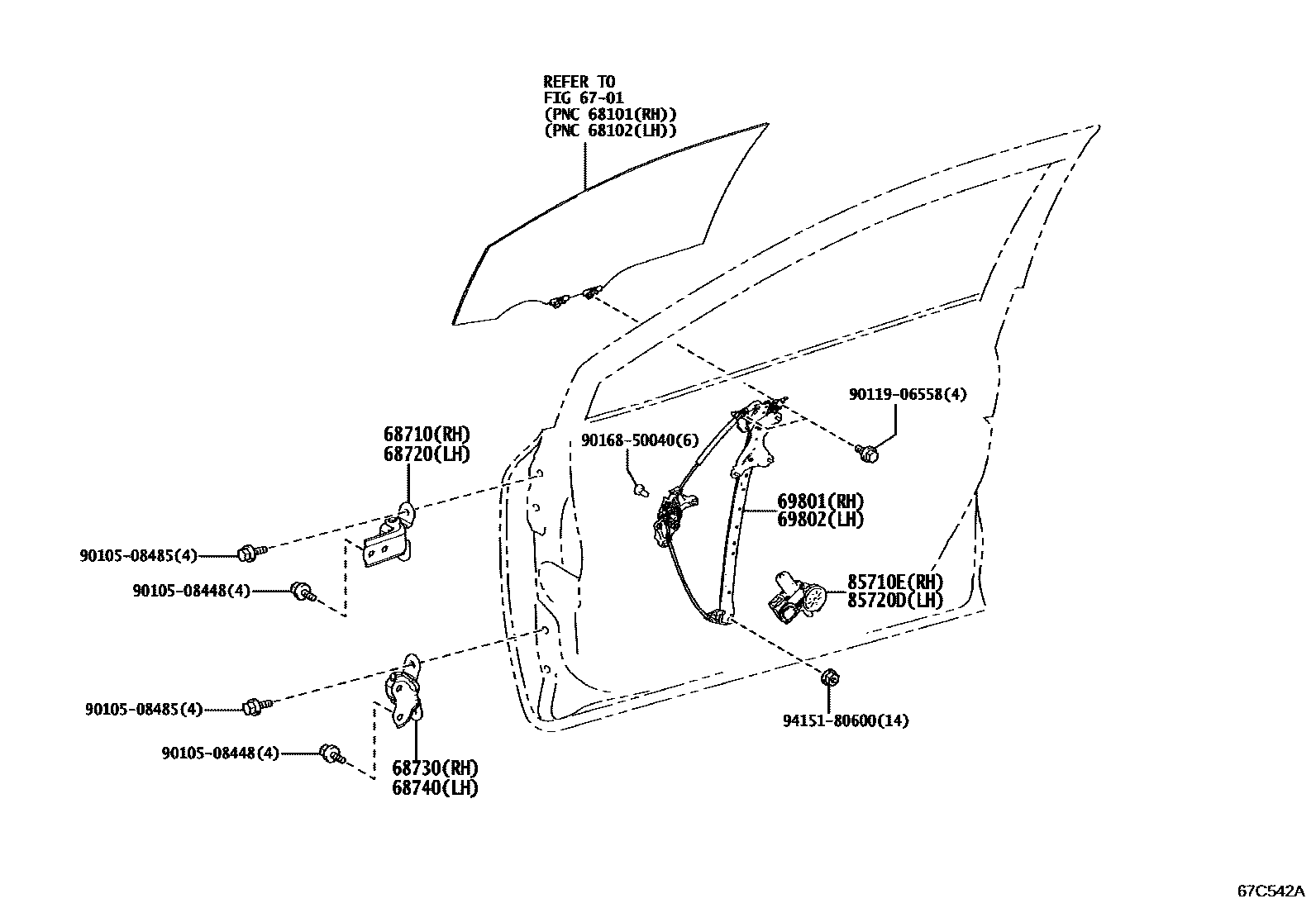

Parts diagram

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151i202210-202304

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151i202409

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120i202409

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120i202409

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12273i202210-202304

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12273i202409

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-12531i202210-202306

main85710-12560i202409

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-12521i202210-202304

main85720-12570i202409

9010508448

main90105-08448

9010508485

main90105-08485

9011906558

main90119-06558

9016850040

main90168-50040

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota GR COROLLA

This section contains 14 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota GR COROLLA. Key components include: FRONT DOOR PANEL & GLASS, HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH.
