Toyota GR COROLLA — ABS & VSC

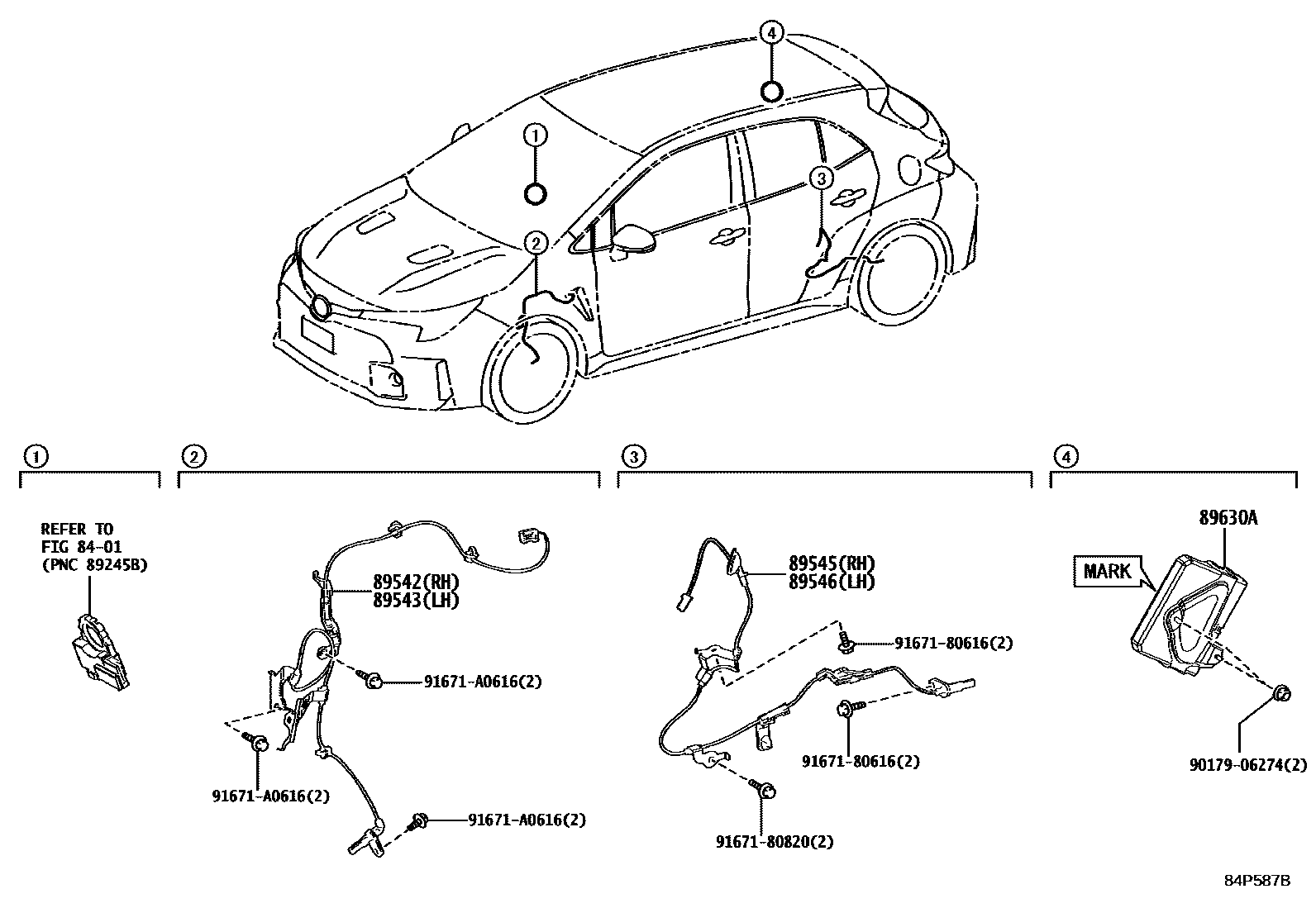

Parts diagram

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89542SENSOR, SPEED, FRONT RH

main89542-12150i202210-202304

89543SENSOR, SPEED, FRONT LH

main89543-12150i202409

89545SENSOR, SPEED, REAR RH

main89545-52080i202210-202304

89546SENSOR, SPEED, REAR LH

main89546-52080i202409

89630ACOMPUTER ASSY, 4WD

main89630-12100i202210-202304

P/N LABEL=8963012100

main89630-12101i202409

9017906274

main90179-06274

9167180616

main91671-80616

9167180820

main91671-80820

91671A0616

main91671-A0616

10 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota GR COROLLA

This section contains 10 genuine Toyota parts for the ABS & VSC system of the Toyota GR COROLLA. Key components include: SWITCH & RELAY & COMPUTER, SENSOR, SPEED, FRONT RH, SENSOR, SPEED, FRONT LH, SENSOR, SPEED, REAR RH, SENSOR, SPEED, REAR LH.
