Toyota GR 86 — WINDSHIELD WIPER

85010MOTOR & LINK ASSY, FR WIPER

mainSU00310020i202110-202312

85159CUSHION, WINDSHIELD WIPER MOTOR

mainSU00302686i202110-202312

85178NUT (FOR FRONT WIPER ARM SETTING)

mainSU00304731i202110-202312

85192COVER, WINDSHIELD WIPER ARM

mainSU00302675i202110-202312

85211BARM, FRONT WIPER, RH

mainSU00310021i202110-202312

85212ABLADE, FR WIPER, RH

mainSU00310023i202110-202312

85213ARUBBER, WIPER BLADE, RH

mainSU00309466i202110-202312

85214ARUBBER, WIPER, RH

mainSU00309467i202110-202312

85214BRUBBER, WIPER, LH

mainSU00304215i202110-202312

85221BARM, FRONT WIPER, LH

mainSU00302670i202110-202312

85222ABLADE, FR WIPER, LH

mainSU00310022i202110-202312

85223ARUBBER, FRONT WIPER BLADE, LH

mainSU00309465i202110-202312

SU00302665

mainSU003-02665

SU00302684

mainSU003-02684

SU00302860

mainSU003-02860

SU00305816

mainSU003-05816

SU00308507

mainSU003-08507

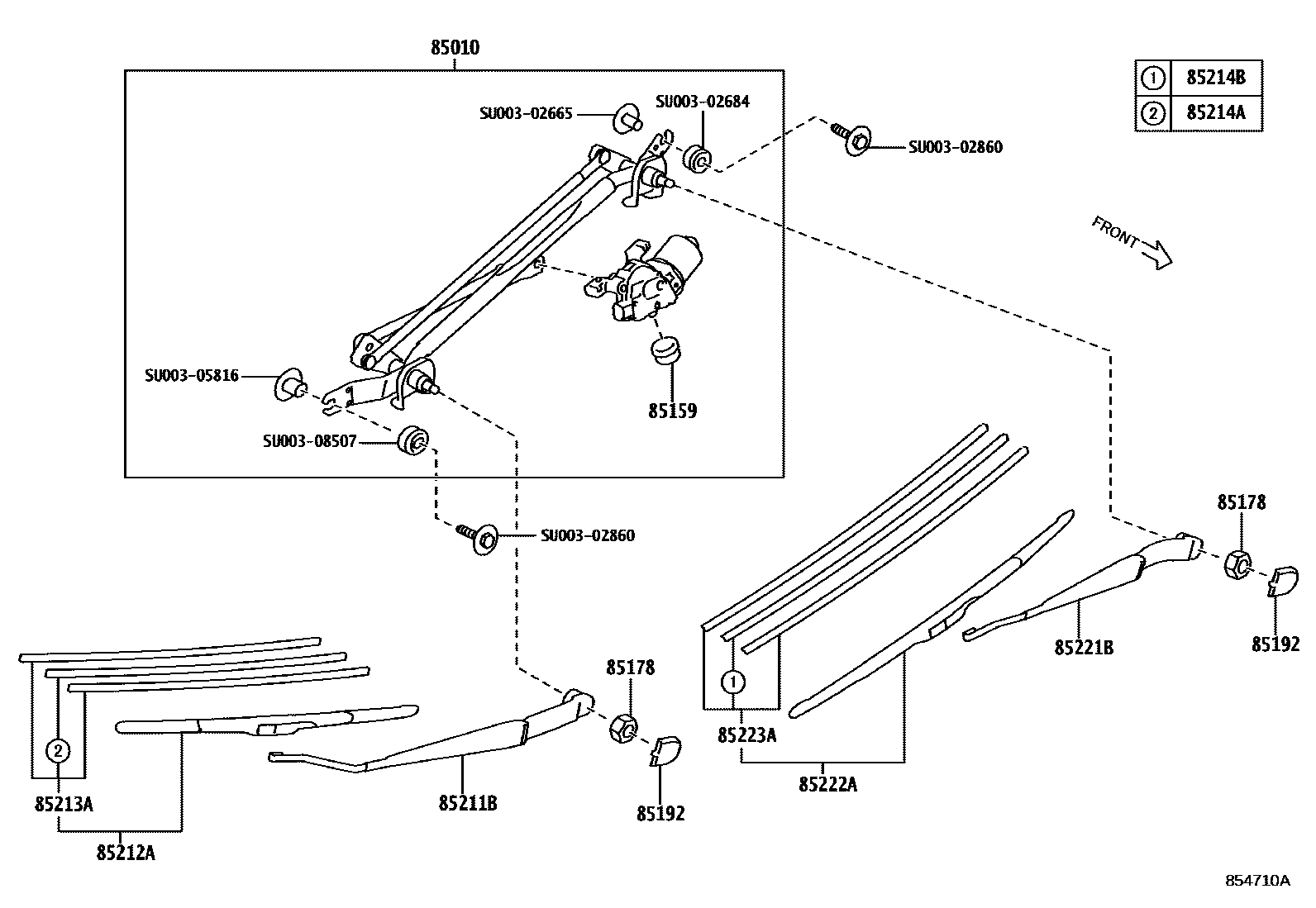

17 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota GR 86

This section contains 17 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota GR 86. Key components include: MOTOR & LINK ASSY, FR WIPER, CUSHION, WINDSHIELD WIPER MOTOR, NUT (FOR FRONT WIPER ARM SETTING), COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH.
