Toyota GR 86 — WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

mainSU00308512i202110-202312

85031DVALVE SUB-ASSY, WASHER NO.2

mainSU00308511i202110-202312

85035NOZZLE SUB-ASSY, WASHER

mainSU00308513i202110-202312

85301INLET SUB-ASSY, WASHER

mainSU00310025i202110-202312

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

mainSU00309357i202110-202312

85330JAR ASSY, WINDSHIELD WASHER

mainSU00309358i202110-202312

85330ABUSH, WINDSHIELD WASHER JAR

mainSU00308510i202110-202312

85332CAP, WINDSHIELD WASHER JAR

mainSU00302690i202110-202312

85336DPACKING, WINDSHIELD WASHER JAR

mainSU00308509i202110-202312

85336GGAGE, WATER LEVEL

mainSU00308508i202110-202312

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

mainSU00302717i202110-202312

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

mainSU00308514i202110-202312

85370HOSE ASSY, WINDSHIELD WASHER

mainSU00310024i202110-202312

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

mainSU00309361i202110-202312

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

mainSU00303006i202110-202312

85387ACLAMP, WASHER, NO.2

mainSU00302691i202110-202312

SU00301553

mainSU003-01553

SU00302831

mainSU003-02831

SU00311352

mainSU003-11352

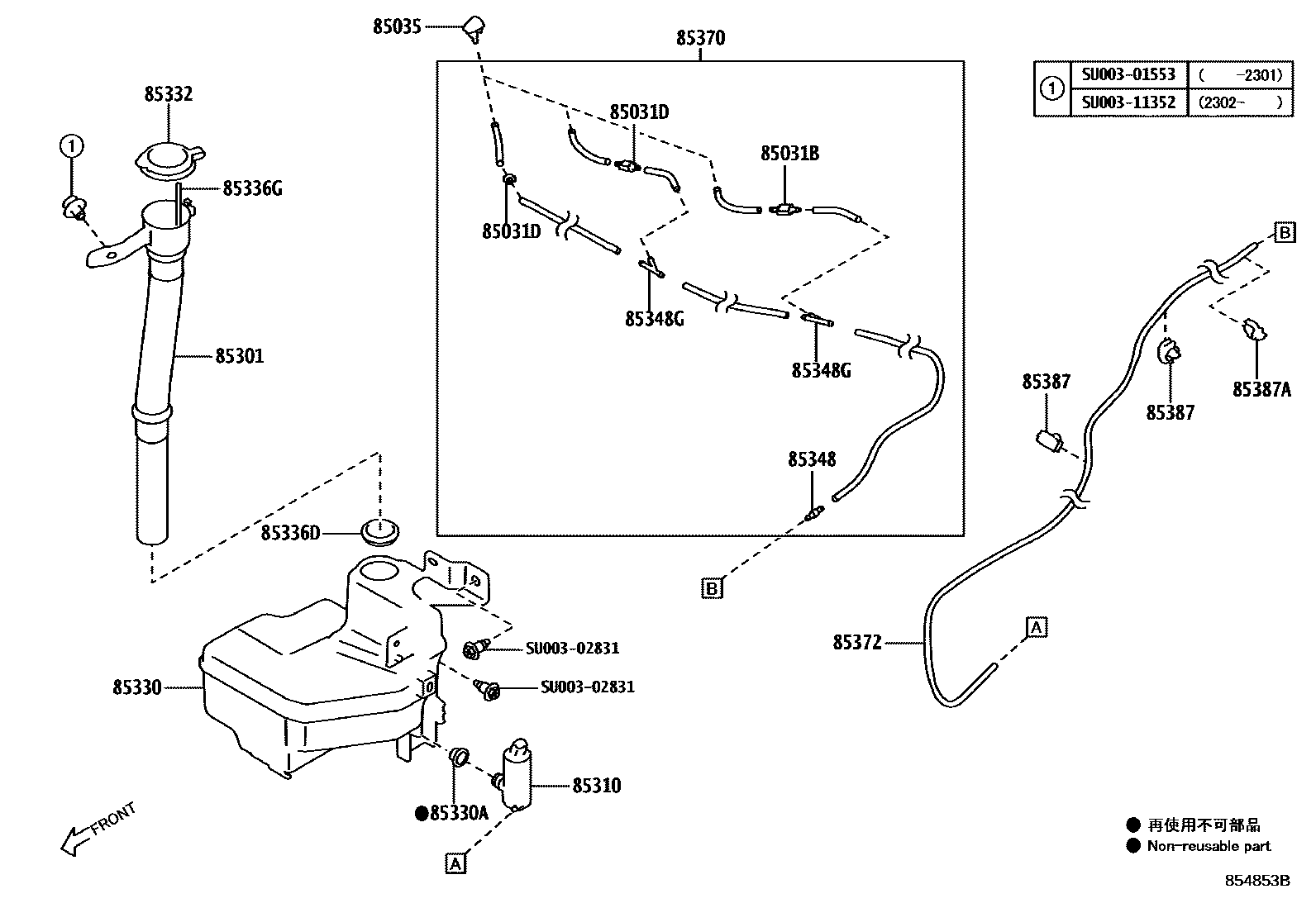

19 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota GR 86

This section contains 19 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota GR 86. Key components include: VALVE SUB-ASSY, WASHER, VALVE SUB-ASSY, WASHER NO.2, NOZZLE SUB-ASSY, WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER.
