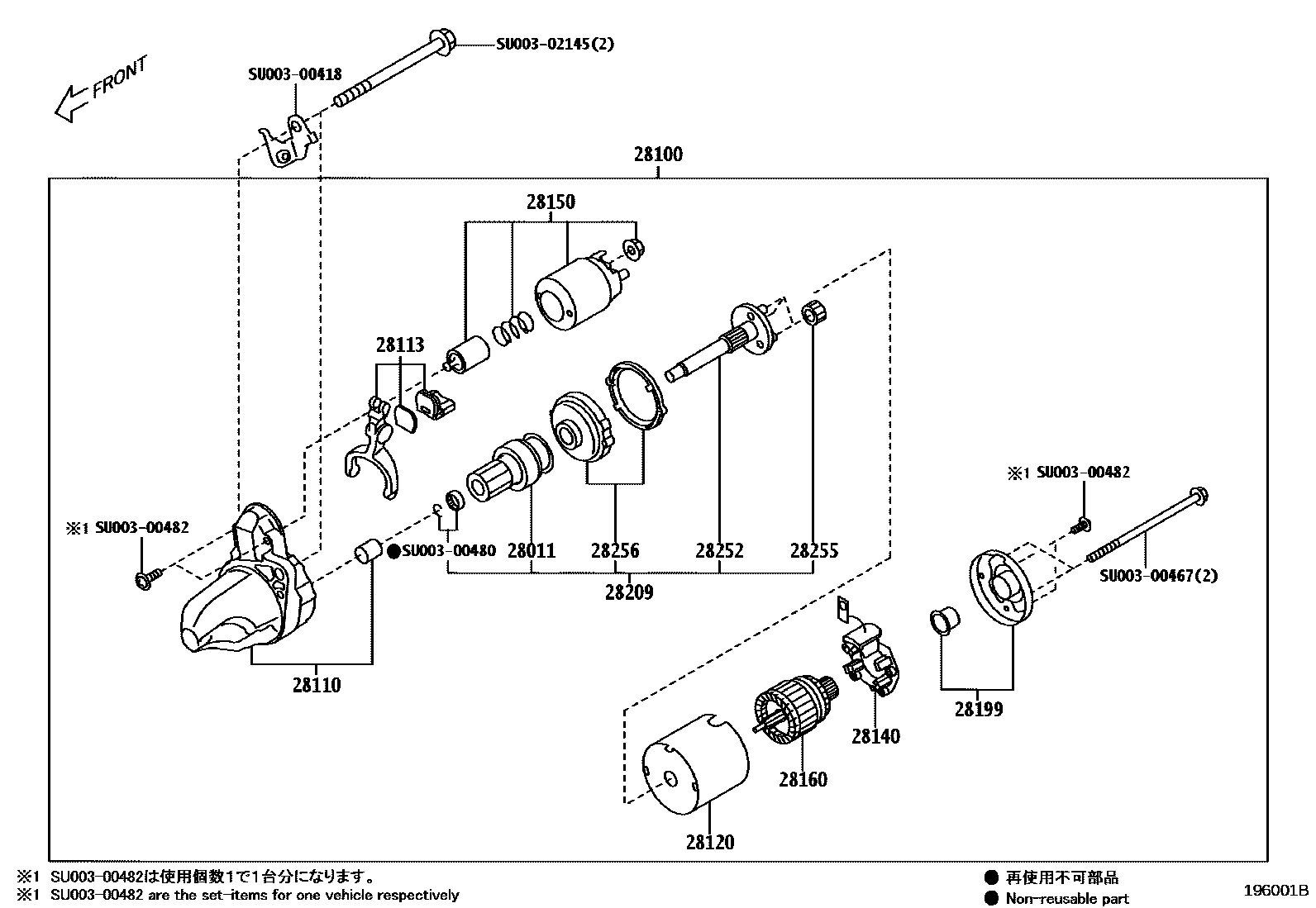

Toyota GR 86 — STARTER
28011CLUTCH SUB-ASSY, STARTER
28100STARTER ASSY
12V 1.6KW
12V 1.0KW
28110HOUSING ASSY, STARTER DRIVE
28113LEVER, STARTER PINION DRIVE
28120YOKE ASSY, STARTER
28140HOLDER ASSY, STARTER BRUSH
28150SWITCH ASSY, MAGNET STARTER
28160ARMATURE ASSY, STARTER
28199COVER, STARTER
28209SHAFT SUB-ASSY, STARTER
28252GEAR, STARTER IDLE
28255GEAR, PLANET
28256GEAR, STARTER INTERNAL
SU00300418
mainSU003-00418
SU00300467
mainSU003-00467
SU00300480
mainSU003-00480
SU00300482
mainSU003-00482
SU00302145
mainSU003-02145
18 parts on this diagram · 2 diagrams in section
STARTER for Toyota GR 86
This section contains 29 genuine Toyota parts for the STARTER system of the Toyota GR 86. Key components include: CLUTCH SUB-ASSY, STARTER, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, LEVER, STARTER PINION DRIVE, YOKE ASSY, STARTER.
