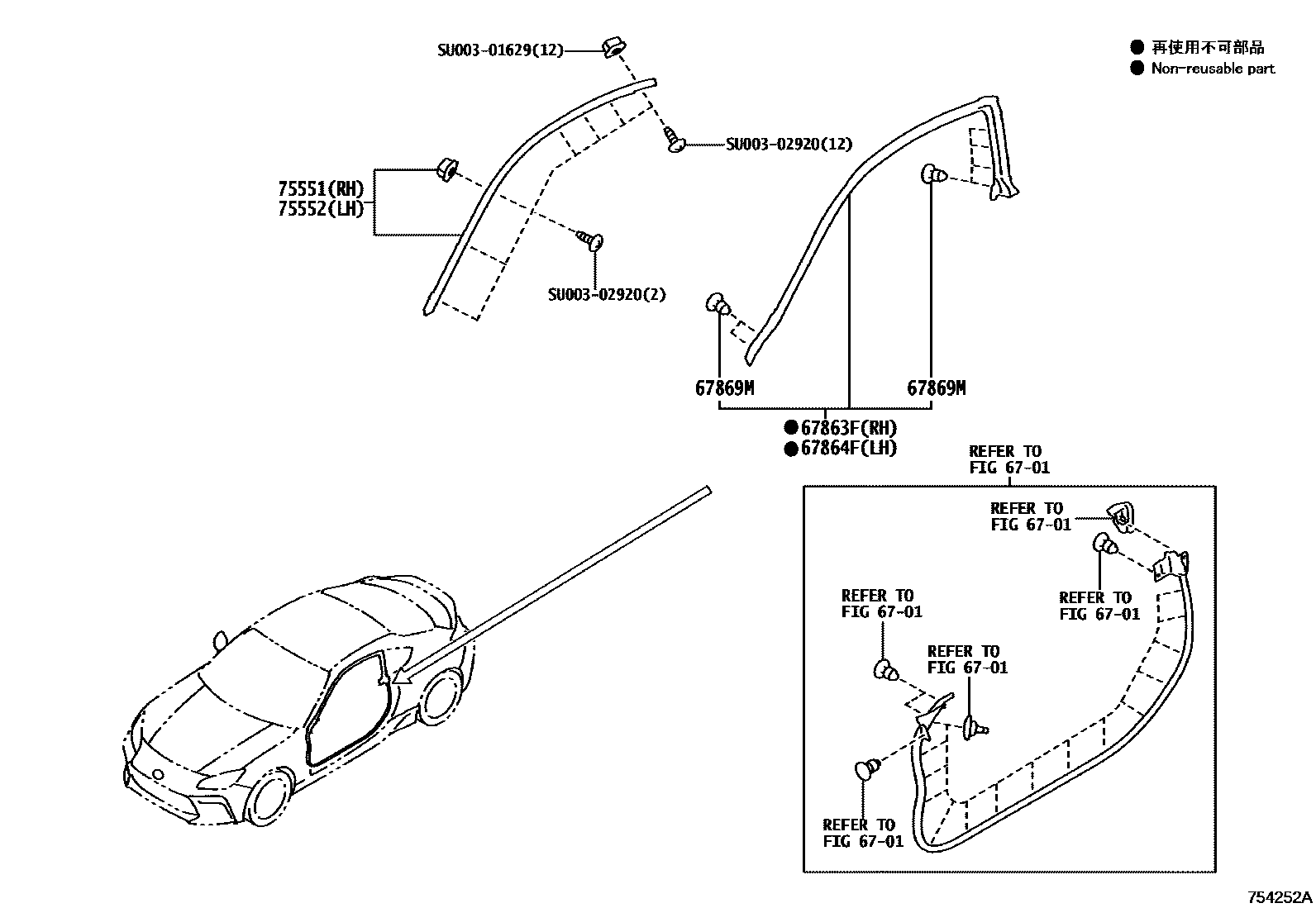

Toyota GR 86 — SIDE MOULDING

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

67863FWEATHERSTRIP, FRONT DOOR, NO.2 RH

mainSU00308599i202409

67864FWEATHERSTRIP, FRONT DOOR, NO.2 LH

mainSU00308600i202110-202206

67869MCLIP, DOOR WEATHERSTRIP

mainSU00308553×12i202110-202206

75551MOULDING, ROOF DRIP SIDE FINISH, RH

mainSU00308601i202110-202206

NO PAINT REQ

75552MOULDING, ROOF DRIP SIDE FINISH, LH

mainSU00308602i202110-202206

NO PAINT REQ

SU00301629

mainSU003-01629

SU00302920

mainSU003-02920

8 parts on this diagram · 4 diagrams in section

SIDE MOULDING for Toyota GR 86

This section contains 34 genuine Toyota parts for the SIDE MOULDING system of the Toyota GR 86. Key components include: FRONT DOOR PANEL & GLASS, WEATHERSTRIP, FRONT DOOR, NO.2 RH, WEATHERSTRIP, FRONT DOOR, NO.2 LH, CLIP, DOOR WEATHERSTRIP, MOULDING, ROOF DRIP SIDE FINISH, RH.
