Toyota GR 86 — MIRROR

87910MIRROR ASSY, OUTER REAR VIEW, RH

mainSU00310536i202110-202206

DESTINATION CODE=C6

mainSU00310540i202110-202206

DESTINATION CODE=C6

mainSU00310546i202110-202206

DESTINATION CODE=C0; DESTINATION CODE=U4; DESTINATION CODE=U7

mainSU00310548i202409

DESTINATION CODE=C0; DESTINATION CODE=U4; DESTINATION CODE=U7

87915COVER, OUTER MIRROR, RH

mainSU00308784i202110-202206

CRYSTAL BLACK SILICA; DESTINATION CODE=C0,CRYSTAL BLACK SILICA; DESTINATION CODE=C6,CRYSTAL BLACK SILICA; DESTINATION CODE=U4,CRYSTAL BLACK SILICA; DESTINATION CODE=U7,CRYSTAL BLACK SILICA

mainSU00310485i202110-202206

DESTINATION CODE=C0; DESTINATION CODE=C6; DESTINATION CODE=U4; DESTINATION CODE=U7

87915ACOVER, OUTER MIRROR, RH

mainSU00309571i202110-202206

8791ACOVER, OUTER MIRROR, RH NO.2

mainSU00308939i202110-202206

87931OUTER MIRROR, RH

mainSU00308934i202110-202206

DESTINATION CODE=C6

mainSU00309569i202110-202206

DESTINATION CODE=C0; DESTINATION CODE=U4; DESTINATION CODE=U7

87940MIRROR ASSY, OUTER REAR VIEW, LH

mainSU00310535i202110-202206

DESTINATION CODE=C6

mainSU00310539i202206-202312

DESTINATION CODE=C6

mainSU00310545i202110-202206

DESTINATION CODE=C0; DESTINATION CODE=U4; DESTINATION CODE=U7

mainSU00310547i202206-202312

DESTINATION CODE=C0; DESTINATION CODE=U4; DESTINATION CODE=U7

87945COVER, OUTER MIRROR, LH

mainSU00308778i202312

CRYSTAL BLACK SILICA; DESTINATION CODE=C0,CRYSTAL BLACK SILICA; DESTINATION CODE=C6,CRYSTAL BLACK SILICA; DESTINATION CODE=U4,CRYSTAL BLACK SILICA; DESTINATION CODE=U7,CRYSTAL BLACK SILICA

mainSU00310484i202206-202312

DESTINATION CODE=C0; DESTINATION CODE=C6; DESTINATION CODE=U4; DESTINATION CODE=U7

87945BCOVER, OUTER MIRROR, LH

mainSU00309570i202110-202206

8794ACOVER, OUTER MIRROR, LH NO.2

mainSU00308938i202110-202206

87961MIRROR OUTER, LH

mainSU00308933i202206-202312

DESTINATION CODE=C6

mainSU00309568i202206-202312

DESTINATION CODE=C0; DESTINATION CODE=U4; DESTINATION CODE=U7

SU00308674

mainSU003-08674

SU00308935

mainSU003-08935

SU00308940

mainSU003-08940

SU00308941

mainSU003-08941

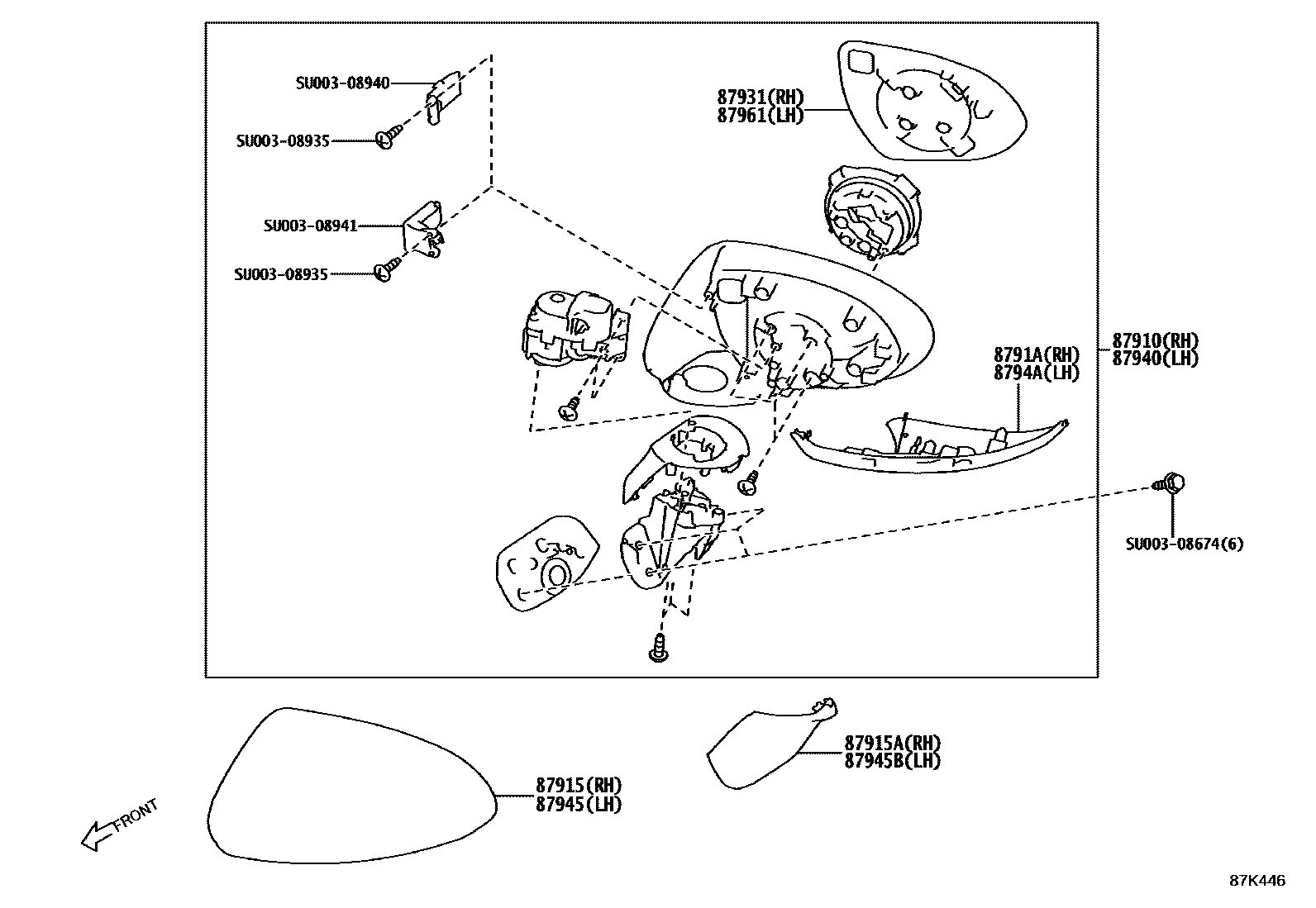

14 parts on this diagram · 2 diagrams in section

MIRROR for Toyota GR 86

This section contains 16 genuine Toyota parts for the MIRROR system of the Toyota GR 86. Key components include: MIRROR ASSY, INNER REAR VIEW, BASE, INNER REAR VIEW MIRROR, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
