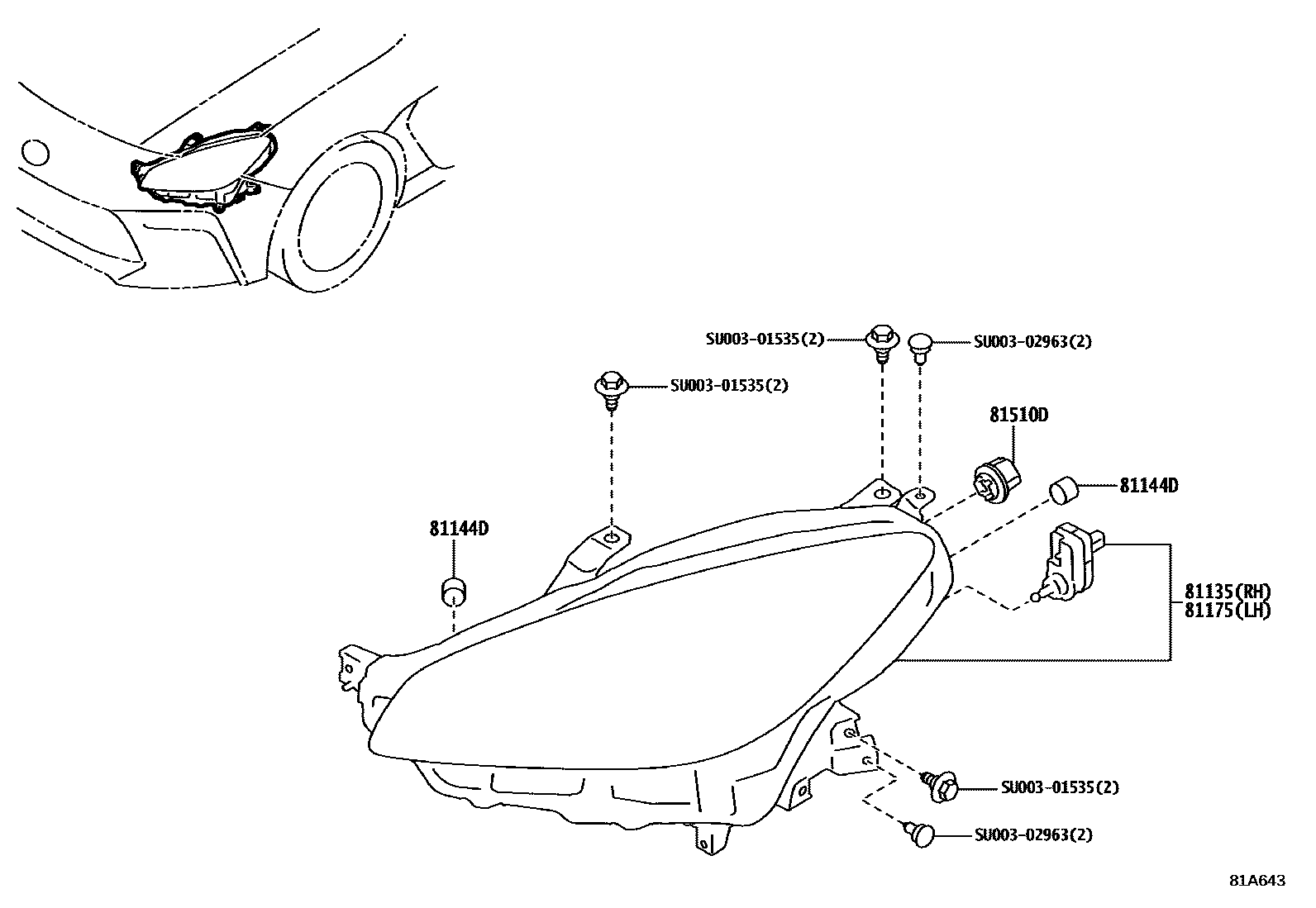

Toyota GR 86 — HEADLAMP

81135UNIT ASSY, HEADLAMP, RH

mainSU00309631i202110-202206

DESTINATION CODE=C6

mainSU00309633i202110-202206

DESTINATION CODE=C6

mainSU00310114i202110-202206

DESTINATION CODE=C0; DESTINATION CODE=U4; DESTINATION CODE=U7

mainSU00310120i202409

DESTINATION CODE=C0; DESTINATION CODE=U4; DESTINATION CODE=U7

81144DCAP, HEADLAMP LOCKING

mainSU00307932×4i202110-202206

81175UNIT ASSY, HEADLAMP, LH

mainSU00309632i202110-202206

DESTINATION CODE=C6

mainSU00309634i202110-202206

DESTINATION CODE=C6

mainSU00310115i202110-202206

DESTINATION CODE=C0; DESTINATION CODE=U4; DESTINATION CODE=U7

mainSU00310121i202409

DESTINATION CODE=C0; DESTINATION CODE=U4; DESTINATION CODE=U7

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

mainSU00308632×2i202110-202205

12V 6W

mainSU00311100×2i202205-202206

SU00301535

mainSU003-01535

SU00302963

mainSU003-02963

6 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota GR 86

This section contains 6 genuine Toyota parts for the HEADLAMP system of the Toyota GR 86. Key components include: UNIT ASSY, HEADLAMP, RH, CAP, HEADLAMP LOCKING, UNIT ASSY, HEADLAMP, LH, BULB (FOR FRONT TURN SIGNAL LAMP).
