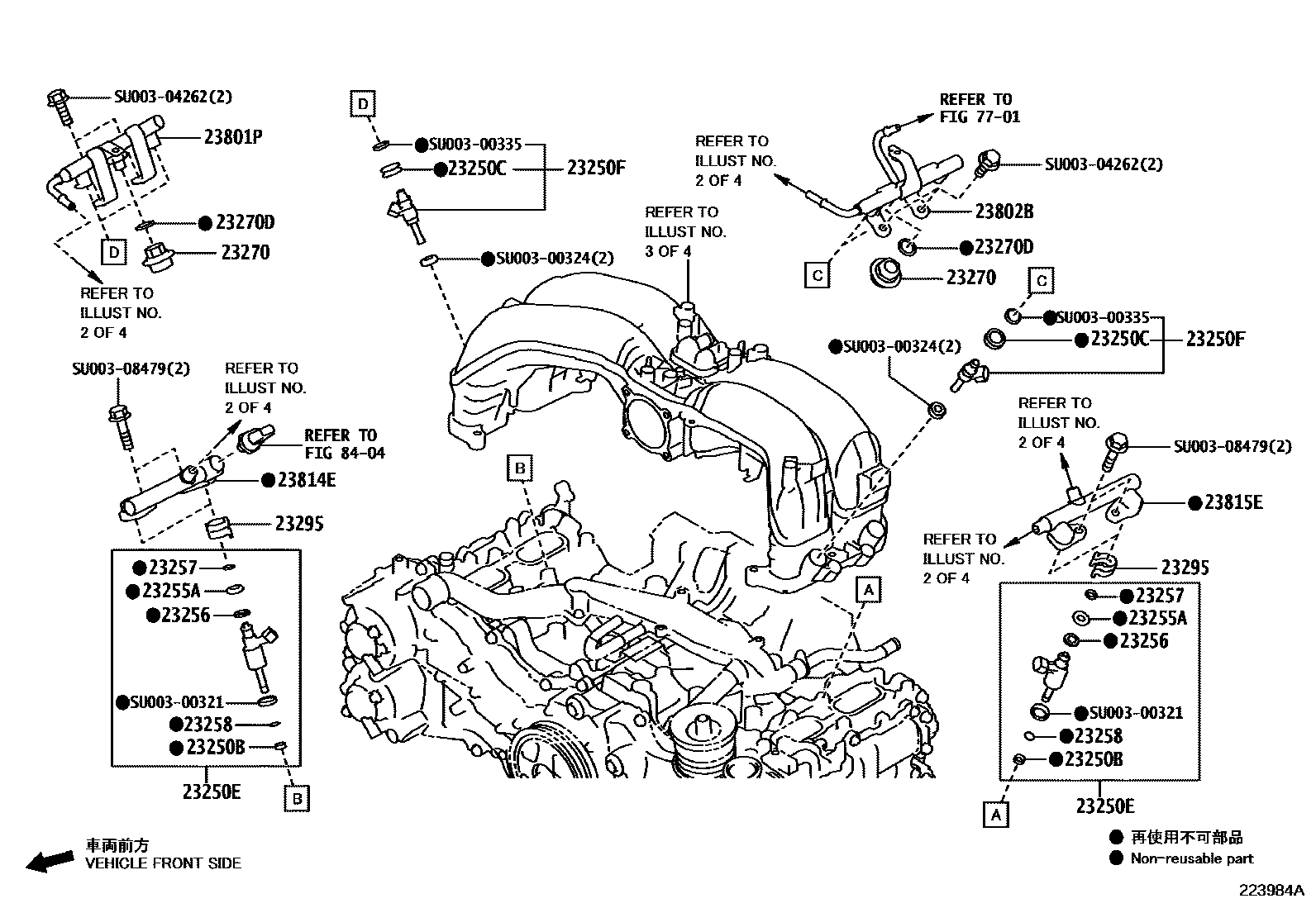

Toyota GR 86 — FUEL INJECTION SYSTEM

23250BRING, O(FOR FUEL INJECTOR)

mainSU00300322×4i202312

23250CGROMMET(FOR FUEL INJECTOR)

mainSU00300317×4i202110-202206

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

mainSU00310912×4i202206-202312

MARK 1

mainSU00310913×4i202312

MARK 2

mainSU00310914×4i202312

MARK 3

23250FINJECTOR ASSY, FUEL(FOR PORT)

mainSU00300326×4i202110-202206

23255ASEAL, FUEL INJECTOR

mainSU00300323×4i202110-202206

23256RING, FUEL INJECTOR BACK-UP, NO.1

mainSU00300333×4i202110-202206

23257RING, FUEL INJECTOR BACK-UP, NO.2

mainSU00309032×4i202110-202206

23258RING, FUEL INJECTOR BACK-UP, NO.3

mainSU00305632×4i202110-202206

23270DAMPER ASSY, FUEL PRESSURE PULSATION

mainSU00300331×2i202110-202206

23270DGASKET(FOR PULSATION DAMPER)

mainSU00300346×2i202110-202206

23295HOLDER, INJECTOR, NO.1

mainSU00300320×4i202110-202206

23801PPIPE SUB-ASSY, FUEL, NO.1

mainSU00308675i202110-202206

23802BPIPE SUB-ASSY, FUEL, NO.2

mainSU00308676i202110-202206

23814EPIPE, FUEL DELIVERY, RH

mainSU00308415i202110-202206

23815PIPE, FUEL DELIVERY, NO.2

mainSU00309033i202110-202206

23815EPIPE, FUEL DELIVERY, LH

mainSU00308416i202110-202206

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

SU00300321

mainSU003-00321

SU00300324

mainSU003-00324

SU00300335

mainSU003-00335

SU00304262

mainSU003-04262

SU00308479

mainSU003-08479

23 parts on this diagram · 4 diagrams in section

FUEL INJECTION SYSTEM for Toyota GR 86

This section contains 47 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota GR 86. Key components include: MANIFOLD, VACUUM PIPING, BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR, GASKET, THROTTLE BODY, PUMP ASSY, FUEL (ENGINE ROOM SIDE).
