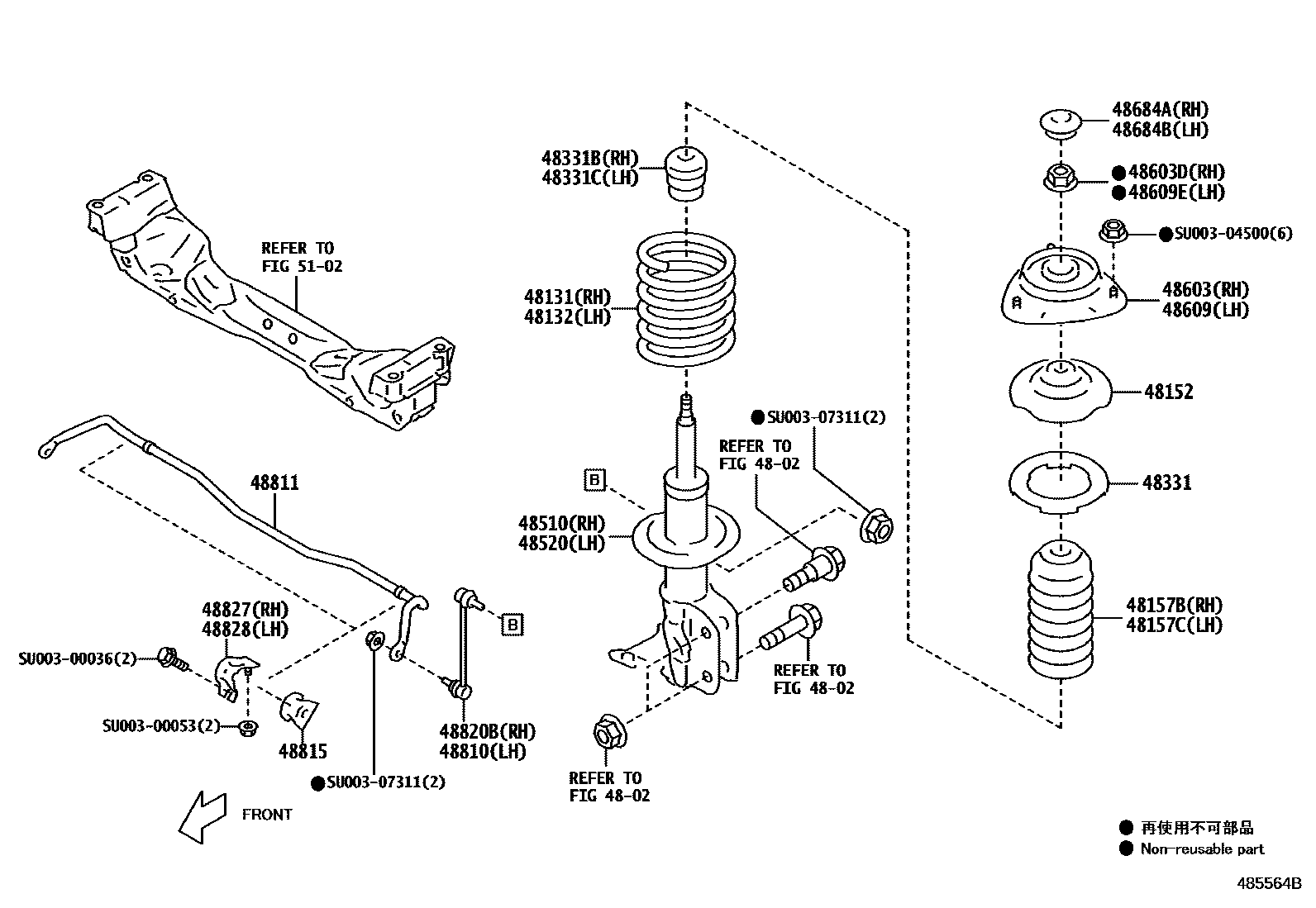

Toyota GR 86 — FRONT SPRING & SHOCK ABSORBER
4802FRONT AXLE ARM & STEERING KNUCKLE
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48152SEAT, FRONT SPRING
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48331BUMPER, FRONT SPRING, NO.1
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 20310-CC020
MARK 20310-CC060,OPTION CODE=BH
MARK 20310-CC060
MARK 20310-CC060,OPTION CODE=FH
MARK 20310-CC060,OPTION CODE=CH
MARK 20310-CC060,OPTION CODE=AH
MARK 20310-CC060,OPTION CODE=XH
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 20310-CC030
MARK 20310-CC070,OPTION CODE=FH
MARK 20310-CC070
MARK 20310-CC070,OPTION CODE=CH
MARK 20310-CC070,OPTION CODE=XH
MARK 20310-CC070,OPTION CODE=AH
MARK 20310-CC070,OPTION CODE=BH
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820BLINK ASSY, FRONT STABILIZER, RH
48827BRACKET, FRONT STABILIZER, NO.2 RH
48828BRACKET, FRONT STABILIZER, NO.2 LH
5102SUSPENSION CROSSMEMBER & UNDER COVER
SU00300036
mainSU003-00036
SU00300053
mainSU003-00053
SU00304500
mainSU003-04500
SU00307311
mainSU003-07311
28 parts on this diagram · 1 diagram in section
FRONT SPRING & SHOCK ABSORBER for Toyota GR 86
This section contains 28 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota GR 86. Key components include: FRONT AXLE ARM & STEERING KNUCKLE, SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH, SEAT, FRONT SPRING, INSULATOR, FRONT COIL SPRING, UPPER RH.
