Toyota GR 86 — STANDARD TOOL

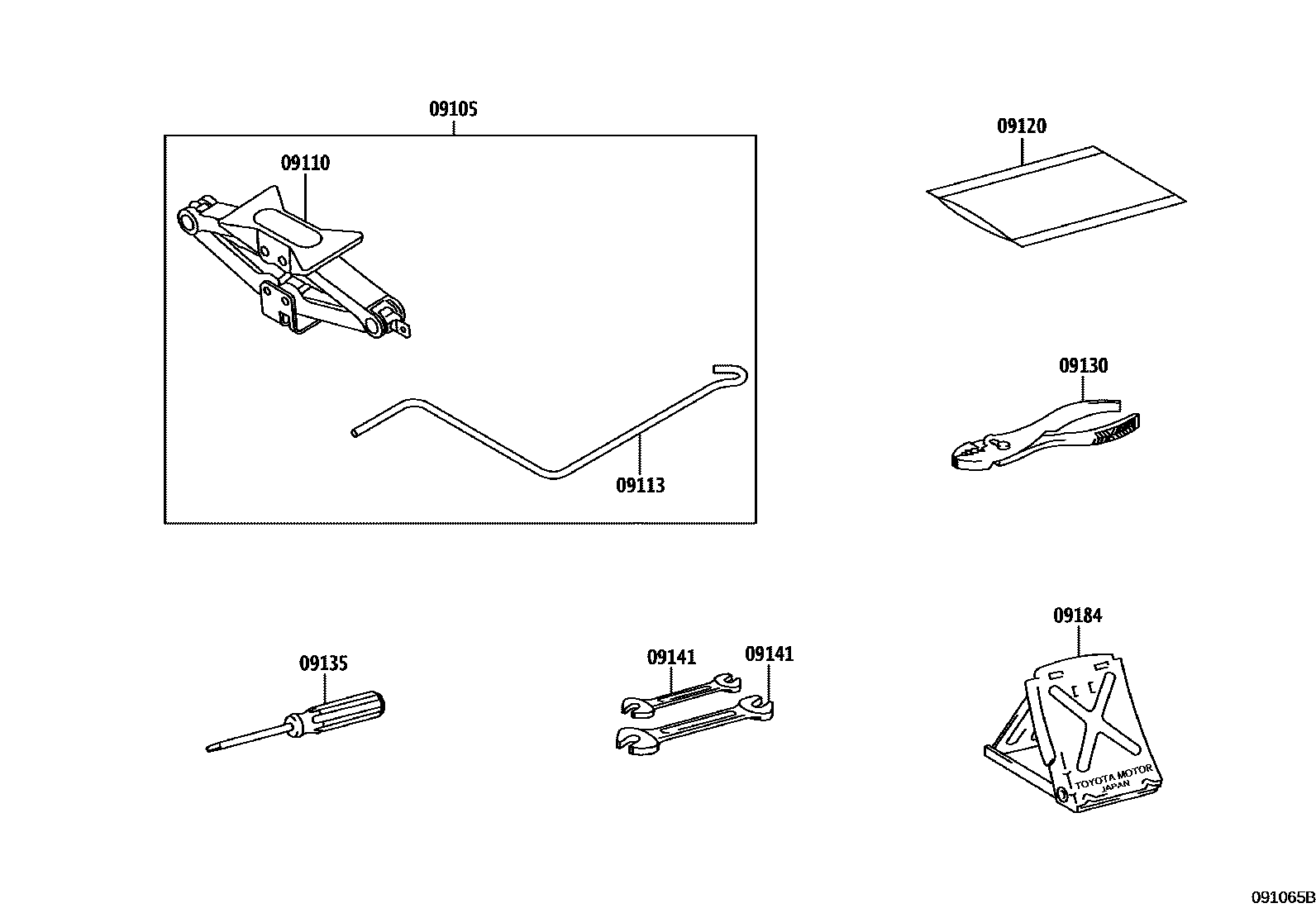

Parts diagram

09105BOX SET, JACK

main09105-18010i202205

09110JACK ASSY

main09110-18020i202311

mainSU00309481i202110-202205

09113HANDLE, JACK

main09113-18010i202311

mainSU00303402i202110-202205

09120BAG, TOOL

main09120-28040i202205

mainSU00308082i202205-202308

09130PLIERS

main99913-11500i202311

09135DRIVER, SCREW

main99915-10700i202311

mainSU00301988i202407

09141SPANNER

main99914-10810i202311

main99914-11214i202311

09184STOPPER, WHEEL

main09184-00010i202110

8 parts on this diagram · 2 diagrams in section

STANDARD TOOL for Toyota GR 86

This section contains 16 genuine Toyota parts for the STANDARD TOOL system of the Toyota GR 86. Key components include: BOX SET, JACK, JACK ASSY, HANDLE, JACK, LABEL, JACK CAUTION, BAG, TOOL.
