Toyota GR 86 — HEADLAMP

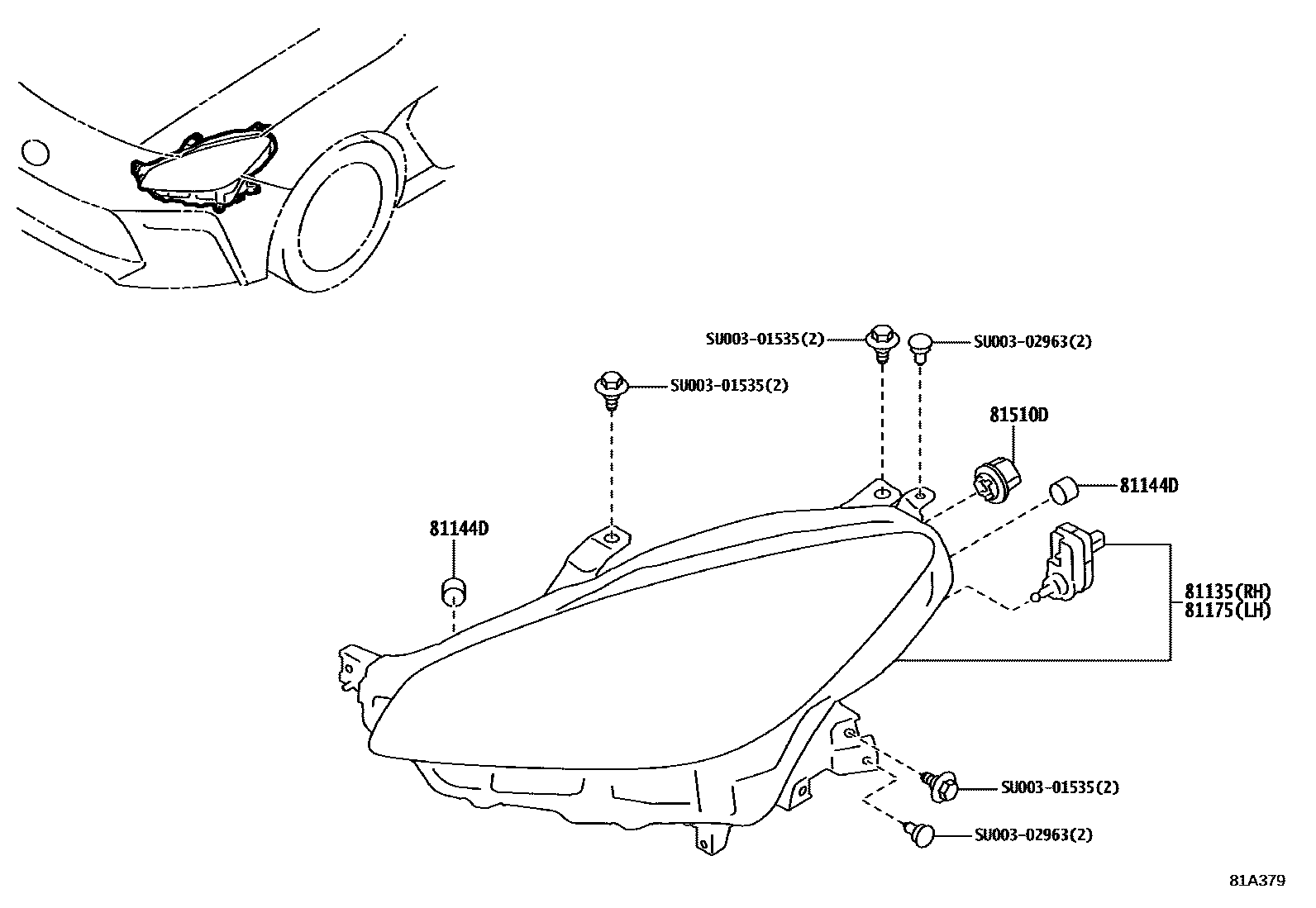

Parts diagram

81135UNIT ASSY, HEADLAMP, RH

mainSU00308626i202205-202308

mainSU00308628i202311

mainSU00308630i202311

mainSU00310110i202407

81144DCAP, HEADLAMP LOCKING

mainSU00307932×4i202110-202205

81175UNIT ASSY, HEADLAMP, LH

mainSU00308627i202110-202205

mainSU00308629i202311

mainSU00308631i202110-202205

mainSU00310111i202407

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

mainSU00308632×2i202110-202205

mainSU00311100×2i202205-202308

SU00301535

mainSU003-01535

SU00302963

mainSU003-02963

6 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota GR 86

This section contains 6 genuine Toyota parts for the HEADLAMP system of the Toyota GR 86. Key components include: UNIT ASSY, HEADLAMP, RH, CAP, HEADLAMP LOCKING, UNIT ASSY, HEADLAMP, LH, BULB (FOR FRONT TURN SIGNAL LAMP).
