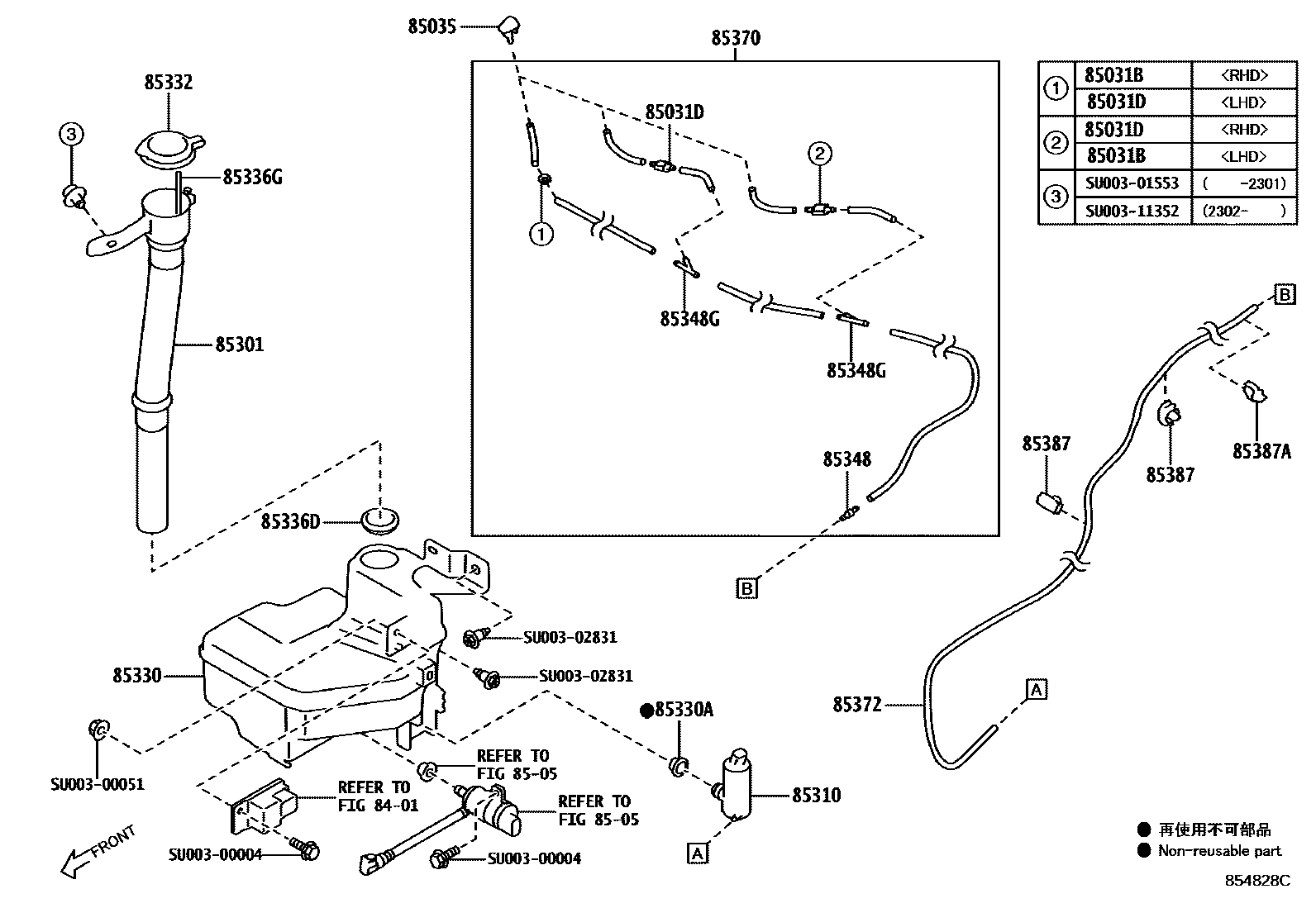

Toyota GR 86 — WINDSHIELD WASHER

8401

85031BVALVE SUB-ASSY, WASHER

mainSU00308512iZN8202203-202206

85031DVALVE SUB-ASSY, WASHER NO.2

mainSU00308511×2iZN8202203-202206

85035NOZZLE SUB-ASSY, WASHER

mainSU00308513×3iZN8202203-202206

8505

85301INLET SUB-ASSY, WASHER

mainSU00310025iZN8202203-202206

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

mainSU00309357iZN8202203-202206

85330JAR ASSY, WINDSHIELD WASHER

mainSU00310149iZN8202203-202206

85330ABUSH, WINDSHIELD WASHER JAR

mainSU00308510iZN8202203-202206

85332CAP, WINDSHIELD WASHER JAR

mainSU00302690iZN8202203-202206

85336DPACKING, WINDSHIELD WASHER JAR

mainSU00308509iZN8202203-202206

85336GGAGE, WATER LEVEL

mainSU00308508iZN8202203-202206

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

mainSU00302717iZN8202203-202206

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

mainSU00308514×2iZN8..LHD..B202206-202310

mainSU00309359×2iZN8..RHD..D202408

85370HOSE ASSY, WINDSHIELD WASHER

mainSU00309360iZN8..RHD..C202311

mainSU00310024iZN8..LHD202203-202206

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

mainSU00309361iZN8202203-202206

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

mainSU00303006×2iZN8202203-202206

85387ACLAMP, WASHER, NO.2

mainSU00302691iZN8202203-202206

SU00300004

mainSU003-00004

SU00300051

mainSU003-00051

SU00301553

mainSU003-01553

SU00302831

mainSU003-02831

SU00311352

mainSU003-11352

23 parts on this diagram · 1 diagram in section
