Toyota GR 86 — MIRROR

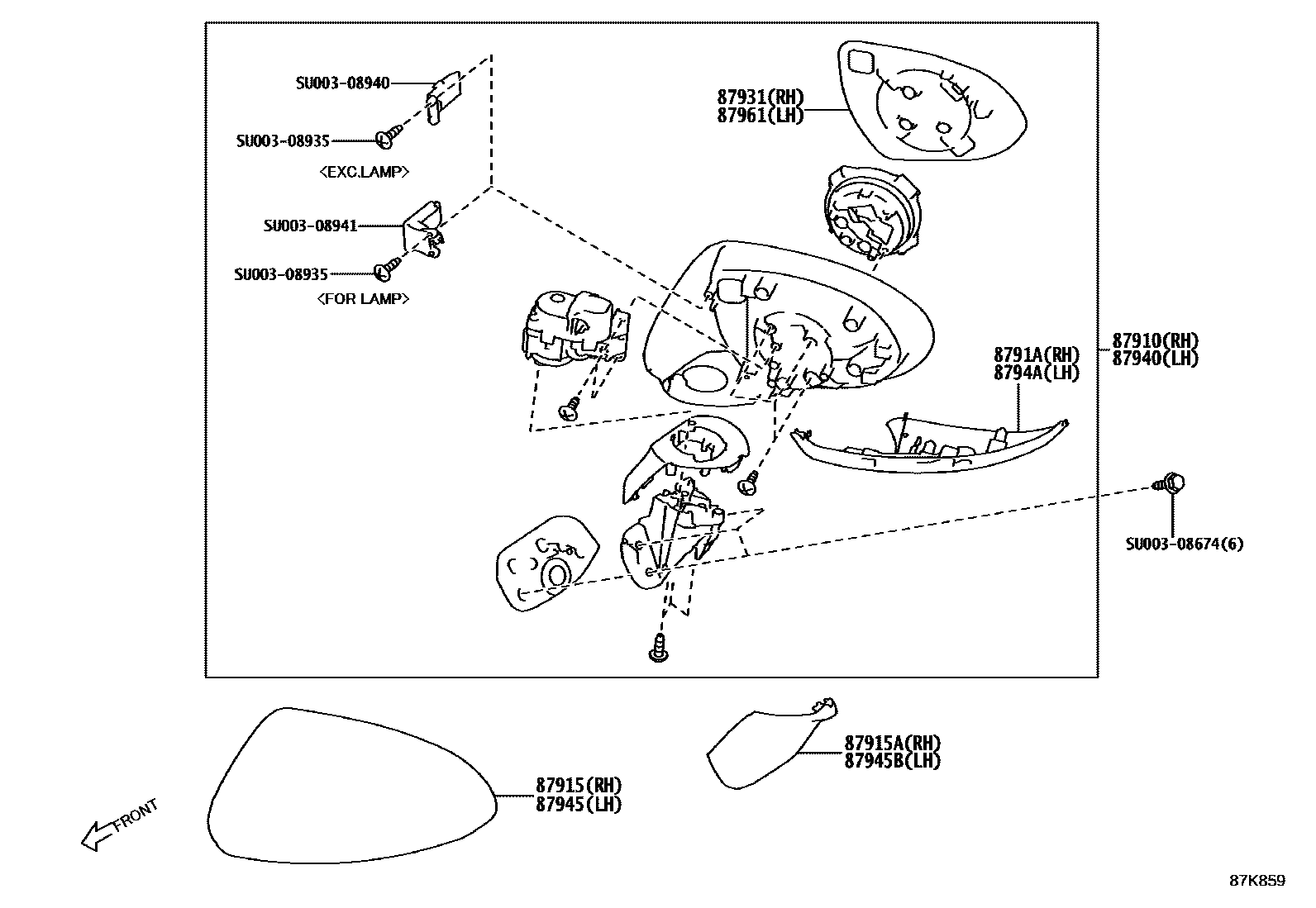

87910MIRROR ASSY, OUTER REAR VIEW, RH
DESTINATION CODE=KA
DESTINATION CODE=E1; DESTINATION CODE=EC
mainSU00310540iZN8..(HIGH,ORA)..CHI..B; ZN8..LHD..(HIGH,ORA)..EUR..B; ZN8..LHD..HIGH..EUR..B202206-202310
DESTINATION CODE=E1; DESTINATION CODE=EC
DESTINATION CODE=EK; DESTINATION CODE=ER; DESTINATION CODE=KA
DESTINATION CODE=K2; DESTINATION CODE=KC; DESTINATION CODE=KV; DESTINATION CODE=KY
DESTINATION CODE=K2; DESTINATION CODE=KC; DESTINATION CODE=KV; DESTINATION CODE=KY
DESTINATION CODE=E3; DESTINATION CODE=KF
DESTINATION CODE=E3; DESTINATION CODE=KF
DESTINATION CODE=KG; DESTINATION CODE=KR; DESTINATION CODE=KS
DESTINATION CODE=KG; DESTINATION CODE=KR; DESTINATION CODE=KS
87915COVER, OUTER MIRROR, RH
mainSU00308784iZN8..CHI..B; ZN8..LHD..(BASE,HIGH)..EUR..B; ZN8..LHD..EUR..B; ZN8..RHD..(BASE,HIGH)..B; ZN8..RHD..B202206-202310
CRYSTAL BLACK SILICA; DESTINATION CODE=E1,CRYSTAL BLACK SILICA; DESTINATION CODE=E3,CRYSTAL BLACK SILICA; DESTINATION CODE=EC,CRYSTAL BLACK SILICA; DESTINATION CODE=EK,CRYSTAL BLACK SILICA; DESTINATION CODE=ER,CRYSTAL BLACK SILICA; DESTINATION CODE=K2,CRYSTAL BLACK SILICA; DESTINATION CODE=KA,CRYSTAL BLACK SILICA; DESTINATION CODE=KC,CRYSTAL BLACK SILICA; DESTINATION CODE=KF,CRYSTAL BLACK SILICA; DESTINATION CODE=KG,CRYSTAL BLACK SILICA; DESTINATION CODE=KR,CRYSTAL BLACK SILICA; DESTINATION CODE=KS,CRYSTAL BLACK SILICA; DESTINATION CODE=KV,CRYSTAL BLACK SILICA; DESTINATION CODE=KY,CRYSTAL BLACK SILICA
mainSU00310485iZN8..CHI..B; ZN8..LHD..(BASE,HIGH)..EUR..B; ZN8..LHD..EUR..B; ZN8..RHD..(BASE,HIGH)..B; ZN8..RHD..B202206-202310
DESTINATION CODE=E1; DESTINATION CODE=E3; DESTINATION CODE=EC; DESTINATION CODE=EK; DESTINATION CODE=ER; DESTINATION CODE=K2; DESTINATION CODE=KA; DESTINATION CODE=KC; DESTINATION CODE=KF; DESTINATION CODE=KG; DESTINATION CODE=KR; DESTINATION CODE=KS; DESTINATION CODE=KV; DESTINATION CODE=KY
8791ACOVER, OUTER MIRROR, RH NO.2
87931OUTER MIRROR, RH
mainSU00308934iZN8..CHI..B; ZN8..LHD..(BASE,HIGH)..EUR..B; ZN8..LHD..EUR..B; ZN8..RHD..(BASE,HIGH)..B; ZN8..RHD..B202206-202310
DESTINATION CODE=E1; DESTINATION CODE=EC; DESTINATION CODE=EK; DESTINATION CODE=ER; DESTINATION CODE=KA
DESTINATION CODE=E3; DESTINATION CODE=K2; DESTINATION CODE=KC; DESTINATION CODE=KF; DESTINATION CODE=KV; DESTINATION CODE=KY
DESTINATION CODE=KG; DESTINATION CODE=KR; DESTINATION CODE=KS
87940MIRROR ASSY, OUTER REAR VIEW, LH
DESTINATION CODE=KA
DESTINATION CODE=E1; DESTINATION CODE=EC
mainSU00310539iZN8..(HIGH,ORA)..CHI..B; ZN8..LHD..(HIGH,ORA)..EUR..B; ZN8..LHD..HIGH..EUR..B202206-202310
DESTINATION CODE=E1; DESTINATION CODE=EC
DESTINATION CODE=EK; DESTINATION CODE=ER; DESTINATION CODE=KA
DESTINATION CODE=K2; DESTINATION CODE=KC; DESTINATION CODE=KV; DESTINATION CODE=KY
DESTINATION CODE=K2; DESTINATION CODE=KC; DESTINATION CODE=KV; DESTINATION CODE=KY
DESTINATION CODE=E3; DESTINATION CODE=KF
DESTINATION CODE=E3; DESTINATION CODE=KF
DESTINATION CODE=KG; DESTINATION CODE=KR; DESTINATION CODE=KS
DESTINATION CODE=KG; DESTINATION CODE=KR; DESTINATION CODE=KS
87945COVER, OUTER MIRROR, LH
mainSU00308778iZN8..CHI..B; ZN8..LHD..(BASE,HIGH)..EUR..B; ZN8..LHD..EUR..B; ZN8..RHD..(BASE,HIGH)..B; ZN8..RHD..B202206-202310
CRYSTAL BLACK SILICA; DESTINATION CODE=E1,CRYSTAL BLACK SILICA; DESTINATION CODE=E3,CRYSTAL BLACK SILICA; DESTINATION CODE=EC,CRYSTAL BLACK SILICA; DESTINATION CODE=EK,CRYSTAL BLACK SILICA; DESTINATION CODE=ER,CRYSTAL BLACK SILICA; DESTINATION CODE=K2,CRYSTAL BLACK SILICA; DESTINATION CODE=KA,CRYSTAL BLACK SILICA; DESTINATION CODE=KC,CRYSTAL BLACK SILICA; DESTINATION CODE=KF,CRYSTAL BLACK SILICA; DESTINATION CODE=KG,CRYSTAL BLACK SILICA; DESTINATION CODE=KR,CRYSTAL BLACK SILICA; DESTINATION CODE=KS,CRYSTAL BLACK SILICA; DESTINATION CODE=KV,CRYSTAL BLACK SILICA; DESTINATION CODE=KY,CRYSTAL BLACK SILICA
mainSU00310484iZN8..CHI..B; ZN8..LHD..(BASE,HIGH)..EUR..B; ZN8..LHD..EUR..B; ZN8..RHD..(BASE,HIGH)..B; ZN8..RHD..B202206-202310
DESTINATION CODE=E1; DESTINATION CODE=E3; DESTINATION CODE=EC; DESTINATION CODE=EK; DESTINATION CODE=ER; DESTINATION CODE=K2; DESTINATION CODE=KA; DESTINATION CODE=KC; DESTINATION CODE=KF; DESTINATION CODE=KG; DESTINATION CODE=KR; DESTINATION CODE=KS; DESTINATION CODE=KV; DESTINATION CODE=KY
8794ACOVER, OUTER MIRROR, LH NO.2
87961MIRROR OUTER, LH
DESTINATION CODE=E1; DESTINATION CODE=KA
DESTINATION CODE=E3; DESTINATION CODE=K2; DESTINATION CODE=KC; DESTINATION CODE=KF; DESTINATION CODE=KV; DESTINATION CODE=KY
DESTINATION CODE=KG; DESTINATION CODE=KR; DESTINATION CODE=KS
SU00308674
mainSU003-08674
SU00308935
mainSU003-08935
SU00308940
mainSU003-08940
SU00308941
mainSU003-08941
14 parts on this diagram · 2 diagrams in section
MIRROR for Toyota GR 86
This section contains 16 genuine Toyota parts for the MIRROR system of the Toyota GR 86. Key components include: MIRROR ASSY, INNER REAR VIEW, BASE, INNER REAR VIEW MIRROR, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
