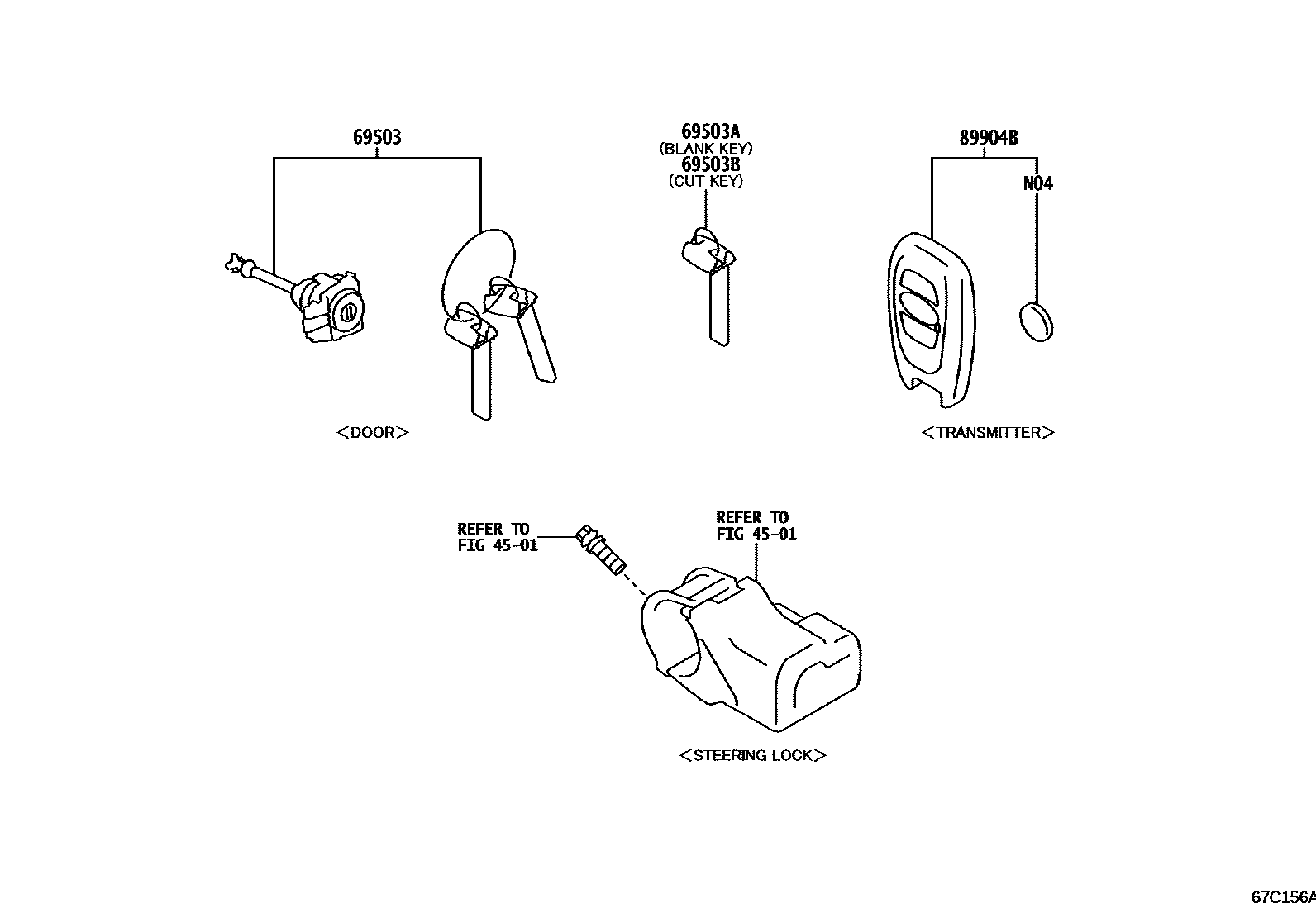

Toyota GR 86 — LOCK CYLINDER SET

4501STEERING COLUMN & SHAFT

→ Go to FIG 45-01

69503CYLINDER SET, LOCK

mainSU00309885i202206-202310

mainSU00311997i202408

mainSU00311999i202408

DESTINATION CODE=KA

mainSU00310080i202206-202310

DESTINATION CODE=K2; DESTINATION CODE=KC; DESTINATION CODE=KV; DESTINATION CODE=KY

mainSU00310193i202203-202206

DESTINATION CODE=EK; DESTINATION CODE=ER

mainSU00310978i202206-202310

DESTINATION CODE=KA

mainSU00311998i202408

DESTINATION CODE=K2; DESTINATION CODE=KC; DESTINATION CODE=KV; DESTINATION CODE=KY

69503AKEY, BLANK

mainSU00308456×2i202206-202310

MASTER KEY,W(*68)

mainSU00311829×2i202408

MASTER KEY,W(*68)

69503BKEY, CUT

mainSU00308453×2i202311

MASTER KEY,W(*68)

mainSU00311828×2i202408

MASTER KEY,W(*68)

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

mainSU00310310×2i202206-202211

DESTINATION CODE=E1; DESTINATION CODE=E3; DESTINATION CODE=EC; DESTINATION CODE=EK; DESTINATION CODE=ER; DESTINATION CODE=K2; DESTINATION CODE=KA; DESTINATION CODE=KC; DESTINATION CODE=KF; DESTINATION CODE=KY

mainSU00310312×2i202401-202402

mainSU00311363×2i202211-202401

DESTINATION CODE=EK; DESTINATION CODE=ER; DESTINATION CODE=K2; DESTINATION CODE=KA; DESTINATION CODE=KC; DESTINATION CODE=KY

mainSU00311777×2i202408

DESTINATION CODE=E1; DESTINATION CODE=E3; DESTINATION CODE=K2; DESTINATION CODE=KA; DESTINATION CODE=KC; DESTINATION CODE=KF; DESTINATION CODE=KY

mainSU00310311×2i202311

DESTINATION CODE=KG; DESTINATION CODE=KR; DESTINATION CODE=KS

mainSU00311810×2i202402

DESTINATION CODE=KV

5 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota GR 86

This section contains 5 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota GR 86. Key components include: STEERING COLUMN & SHAFT, CYLINDER SET, LOCK, KEY, BLANK, KEY, CUT, TRANSMITTER SUB-ASSY, ELECTRICAL KEY.
