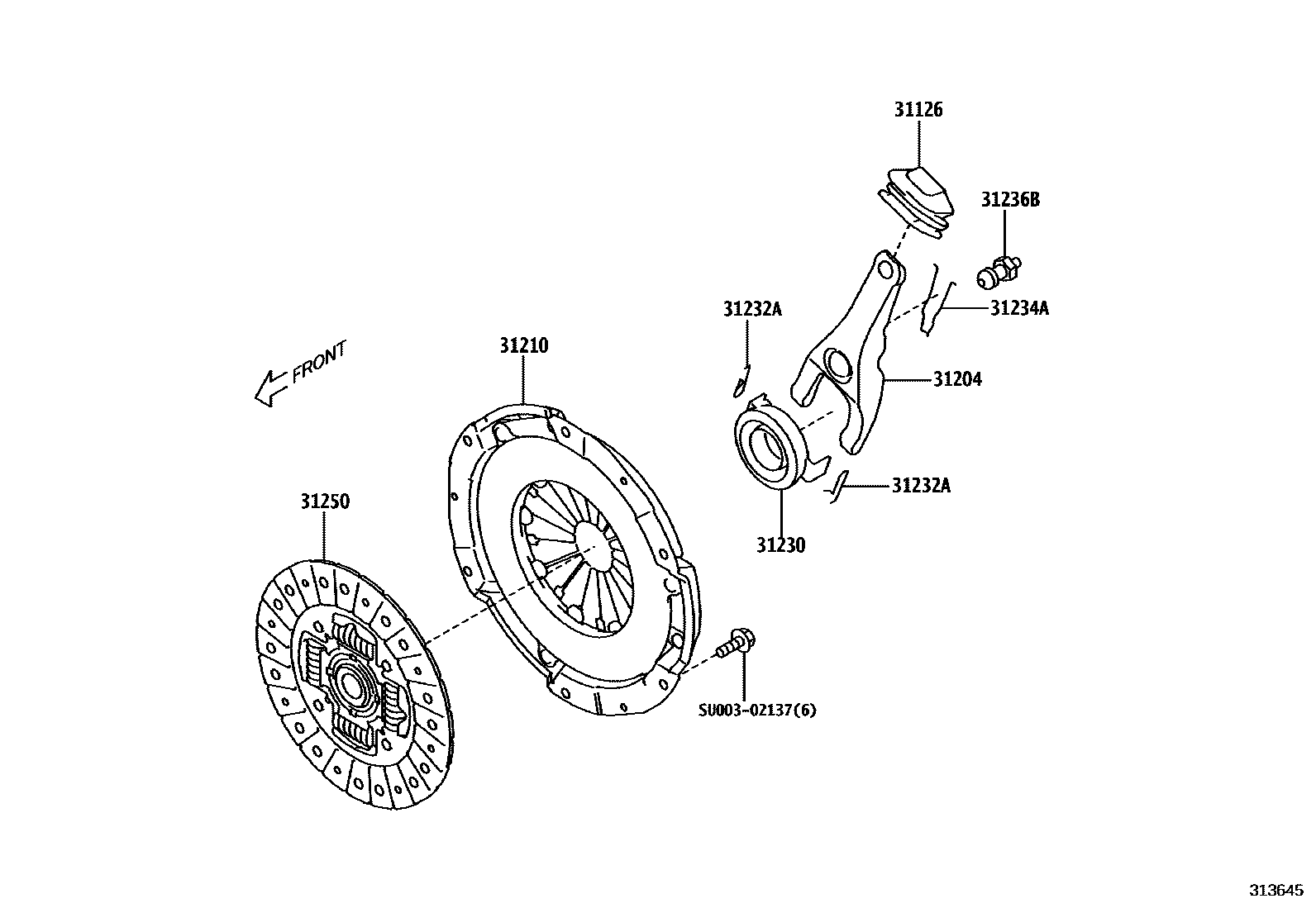

Toyota GR 86 — CLUTCH & RELEASE FORK
31126BOOT, CLUTCH RELEASE FORK
31204FORK SUB-ASSY, CLUTCH RELEASE
31210COVER ASSY, CLUTCH
31230BEARING ASSY, CLUTCH RELEASE
31232ACLIP, RELEASE BEARING HUB
31234ASPRING, RELEASE FORK SUPPORT
31236BSUPPORT, RELEASE FORK
31250DISC ASSY, CLUTCH
SU00302137
mainSU003-02137
9 parts on this diagram · 1 diagram in section
