Toyota GR 86 — WINDSHIELD WASHER

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85031BVALVE SUB-ASSY, WASHER

mainSU00308512i202203-202206

85031DVALVE SUB-ASSY, WASHER NO.2

mainSU00308511×2i202203-202206

85035NOZZLE SUB-ASSY, WASHER

mainSU00308513×3i202203-202206

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85301INLET SUB-ASSY, WASHER

mainSU00310025i202203-202206

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

mainSU00309357i202203-202206

85330JAR ASSY, WINDSHIELD WASHER

mainSU00310149i202203-202206

85330ABUSH, WINDSHIELD WASHER JAR

mainSU00308510i202203-202206

85332CAP, WINDSHIELD WASHER JAR

mainSU00302690i202203-202206

85336DPACKING, WINDSHIELD WASHER JAR

mainSU00308509i202203-202206

85336GGAGE, WATER LEVEL

mainSU00308508i202203-202206

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

mainSU00302717i202203-202206

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

mainSU00308514×2i202206-202310

mainSU00309359×2i202408

85370HOSE ASSY, WINDSHIELD WASHER

mainSU00309360i202311

mainSU00310024i202203-202206

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

mainSU00309361i202203-202206

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

mainSU00303006×2i202203-202206

85387ACLAMP, WASHER, NO.2

mainSU00302691i202203-202206

SU00300004

mainSU003-00004

SU00300051

mainSU003-00051

SU00301553

mainSU003-01553

SU00302831

mainSU003-02831

SU00311352

mainSU003-11352

23 parts on this diagram · 1 diagram in section

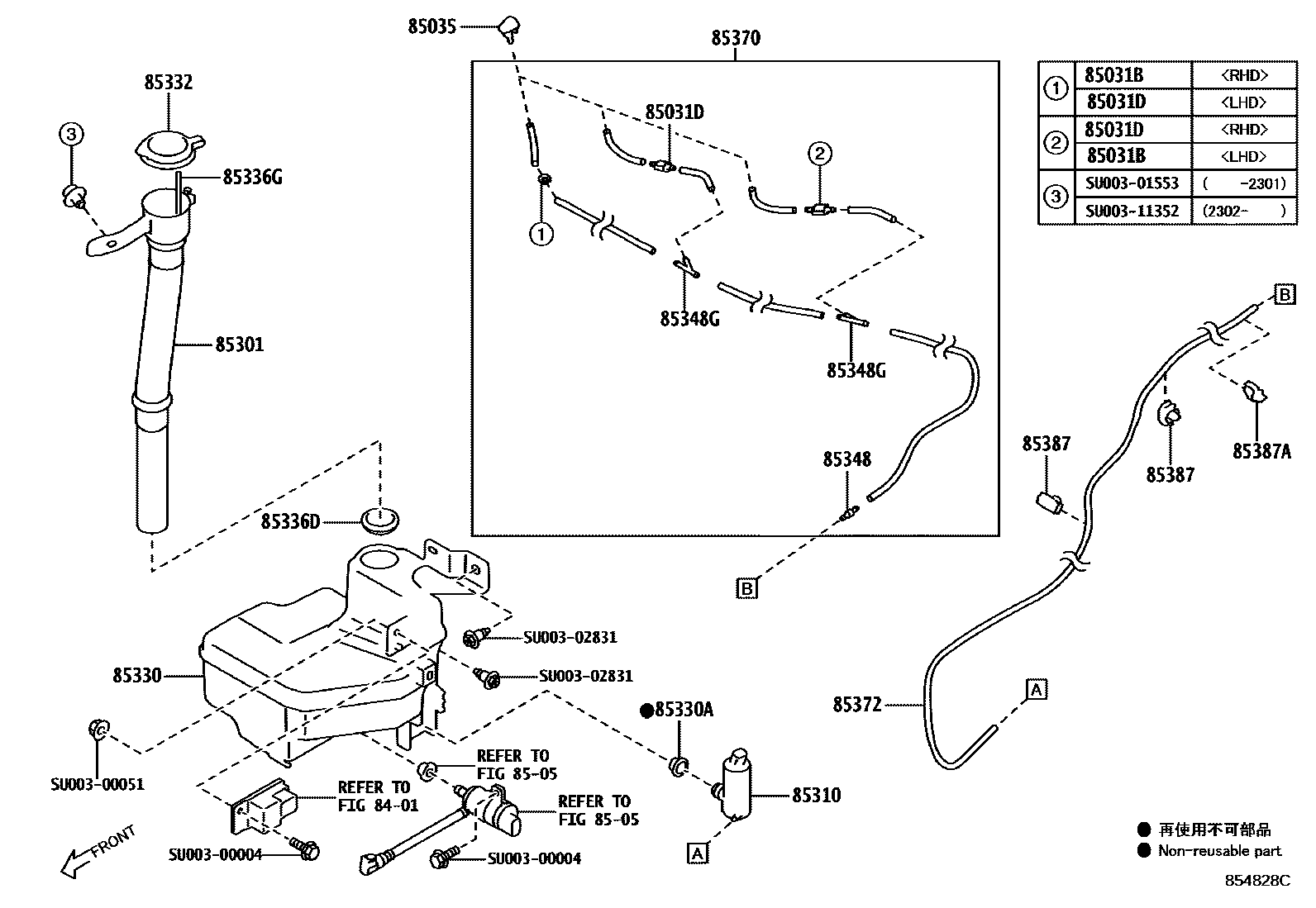

WINDSHIELD WASHER for Toyota GR 86

This section contains 23 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota GR 86. Key components include: SWITCH & RELAY & COMPUTER, VALVE SUB-ASSY, WASHER, VALVE SUB-ASSY, WASHER NO.2, NOZZLE SUB-ASSY, WASHER, HEADLAMP CLEANER.
