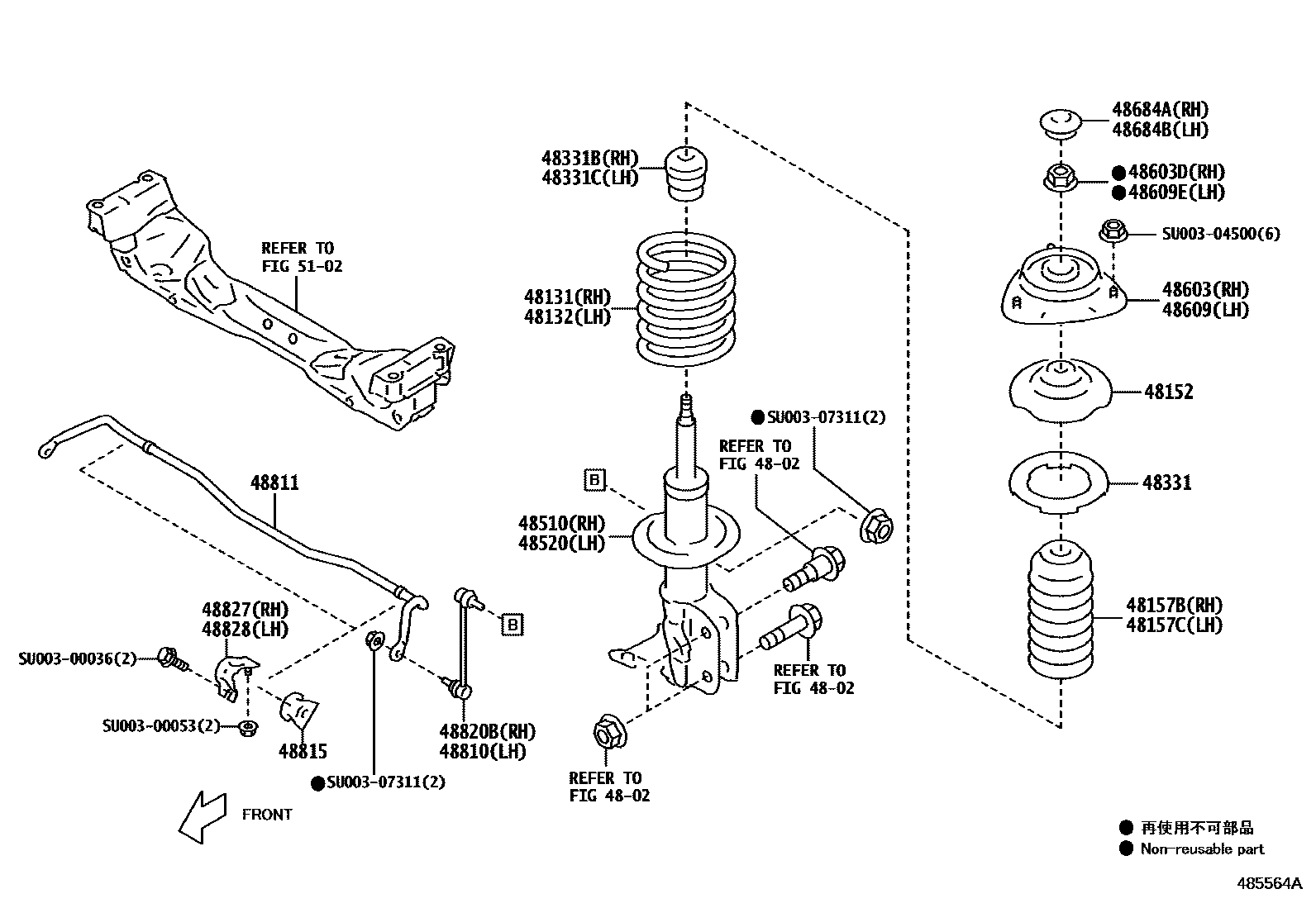

Toyota GR 86 — FRONT SPRING & SHOCK ABSORBER

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

48131SPRING, FRONT COIL, RH

mainSU00310776i202206-202310

mainSU00310777i202206-202310

48132SPRING, FRONT COIL, LH

mainSU00310776i202311

mainSU00310777i202311

48152SEAT, FRONT SPRING

mainSU00300376×2i202203-202206

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

mainSU00300375i202203-202206

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

mainSU00300375i202408

48331BUMPER, FRONT SPRING, NO.1

mainSU00300377×2i202206-202310

48331BBUMPER, FRONT SPRING, RH

mainSU00300374i202203-202206

48331CBUMPER, FRONT SPRING, LH

mainSU00300374i202206-202310

48510ABSORBER ASSY, SHOCK, FRONT RH

mainSU00309576i202311

MARK 20310-CC020; MARK 20310-CC020,OPTION CODE=AB; MARK 20310-CC020,OPTION CODE=AD; MARK 20310-CC020,OPTION CODE=AX; MARK 20310-CC020,OPTION CODE=FB; MARK 20310-CC020,OPTION CODE=FD; MARK 20310-CC020,OPTION CODE=FX; MARK 20310-CC020,OPTION CODE=XB; MARK 20310-CC020,OPTION CODE=XD; MARK 20310-CC020,OPTION CODE=XX

mainSU00311419i202408

MARK 20310-CC060; MARK 20310-CC060,OPTION CODE=FF; MARK 20310-CC060,OPTION CODE=FH

mainSU00311830i202408

MARK 20310-CC100; MARK 20310-CC100,OPTION CODE=AB; MARK 20310-CC100,OPTION CODE=AD; MARK 20310-CC100,OPTION CODE=AX; MARK 20310-CC100,OPTION CODE=FB; MARK 20310-CC100,OPTION CODE=FD; MARK 20310-CC100,OPTION CODE=FX; MARK 20310-CC100,OPTION CODE=XB; MARK 20310-CC100,OPTION CODE=XD; MARK 20310-CC100,OPTION CODE=XX

48520ABSORBER ASSY, SHOCK, FRONT LH

mainSU00309577i202203-202206

MARK 20310-CC030

mainSU00311420i202408

MARK 20310-CC070; MARK 20310-CC070,OPTION CODE=FF; MARK 20310-CC070,OPTION CODE=FH

mainSU00311831i202408

MARK 20310-CC110; MARK 20310-CC110,OPTION CODE=AB; MARK 20310-CC110,OPTION CODE=AD; MARK 20310-CC110,OPTION CODE=AX; MARK 20310-CC110,OPTION CODE=FB; MARK 20310-CC110,OPTION CODE=FD; MARK 20310-CC110,OPTION CODE=FX; MARK 20310-CC110,OPTION CODE=XB; MARK 20310-CC110,OPTION CODE=XD; MARK 20310-CC110,OPTION CODE=XX

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

mainSU00309509i202203-202206

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

mainSU00302868i202203-202206

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

mainSU00309509i202203-202206

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

mainSU00302868i202203-202206

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

mainSU00300378i202203-202206

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

mainSU00300378i202203-202206

48810LINK ASSY, FRONT STABILIZER, LH

mainSU00300394i202203-202206

48811BAR, STABILIZER, FRONT

mainSU00300391i202203-202206

48815BUSH, FRONT STABILIZER BAR, NO.1

mainSU00300392×2i202203-202206

48820BLINK ASSY, FRONT STABILIZER, RH

mainSU00300394i202203-202206

48827BRACKET, FRONT STABILIZER, NO.2 RH

mainSU00300393i202203-202206

48828BRACKET, FRONT STABILIZER, NO.2 LH

mainSU00300393i202203-202206

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

SU00300036

mainSU003-00036

SU00300053

mainSU003-00053

SU00304500

mainSU003-04500

SU00307311

mainSU003-07311

28 parts on this diagram · 1 diagram in section

FRONT SPRING & SHOCK ABSORBER for Toyota GR 86

This section contains 28 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota GR 86. Key components include: FRONT AXLE ARM & STEERING KNUCKLE, SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH, SEAT, FRONT SPRING, INSULATOR, FRONT COIL SPRING, UPPER RH.
