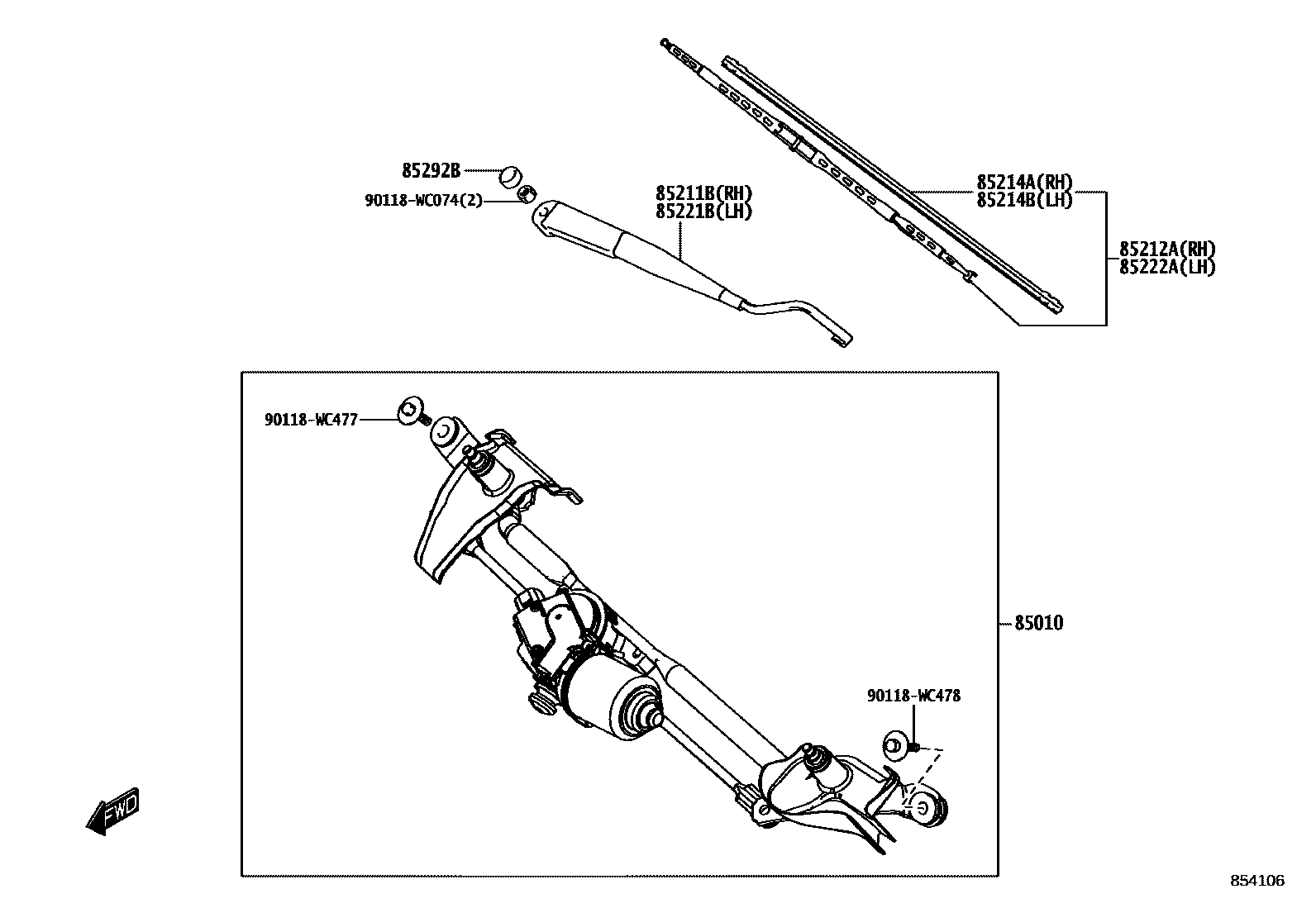

Toyota GLANZA — WINDSHIELD WIPER
85010MOTOR & LINK ASSY, FR WIPER
main85010-WC001
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
85292BCAP, FRONT WIPER ARM HEAD
90118WC074
main90118-WC074
90118WC477
main90118-WC477
90118WC478
main90118-WC478
11 parts on this diagram · 1 diagram in section
WINDSHIELD WIPER for Toyota GLANZA
This section contains 11 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota GLANZA. Key components include: MOTOR & LINK ASSY, FR WIPER, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH, RUBBER, WIPER, RH, RUBBER, WIPER, LH.
