Toyota GLANZA — WINDSHIELD WASHER

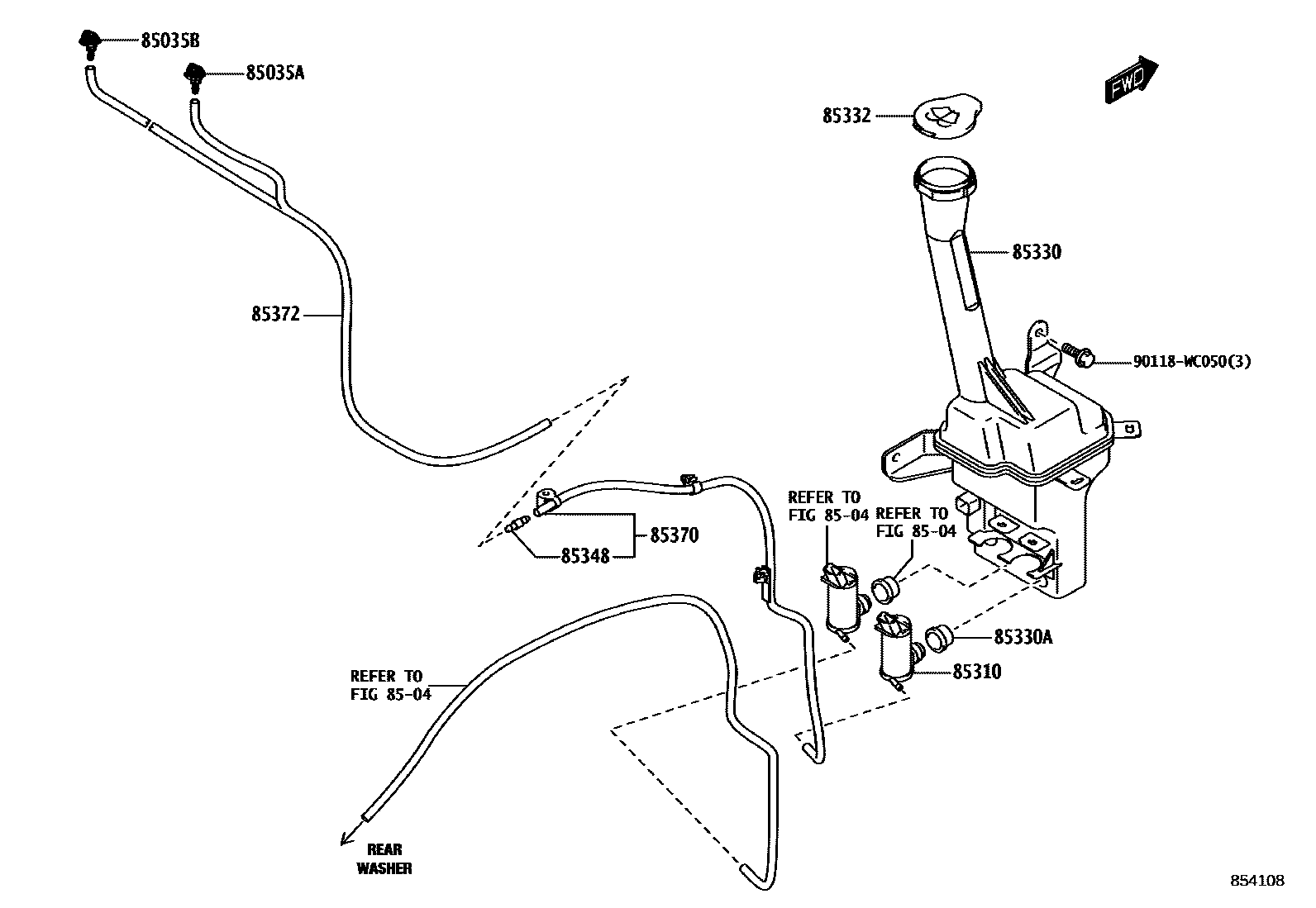

Parts diagram

85035ANOZZLE, FR WASHER, RH

85035BNOZZLE, FRONT WASHER, LH

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-WC001

85330JAR ASSY, WINDSHIELD WASHER

main85336-WC001

main85330-WC003

85330ABUSH, WINDSHIELD WASHER JAR

85332CAP, WINDSHIELD WASHER JAR

main85316-WC001

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85321-WC001

85370HOSE ASSY, WINDSHIELD WASHER

main90118-WC479

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90118-WC481

90118WC050

main90118-WC050

11 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota GLANZA

This section contains 11 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota GLANZA. Key components include: NOZZLE, FR WASHER, RH, NOZZLE, FRONT WASHER, LH, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER.
