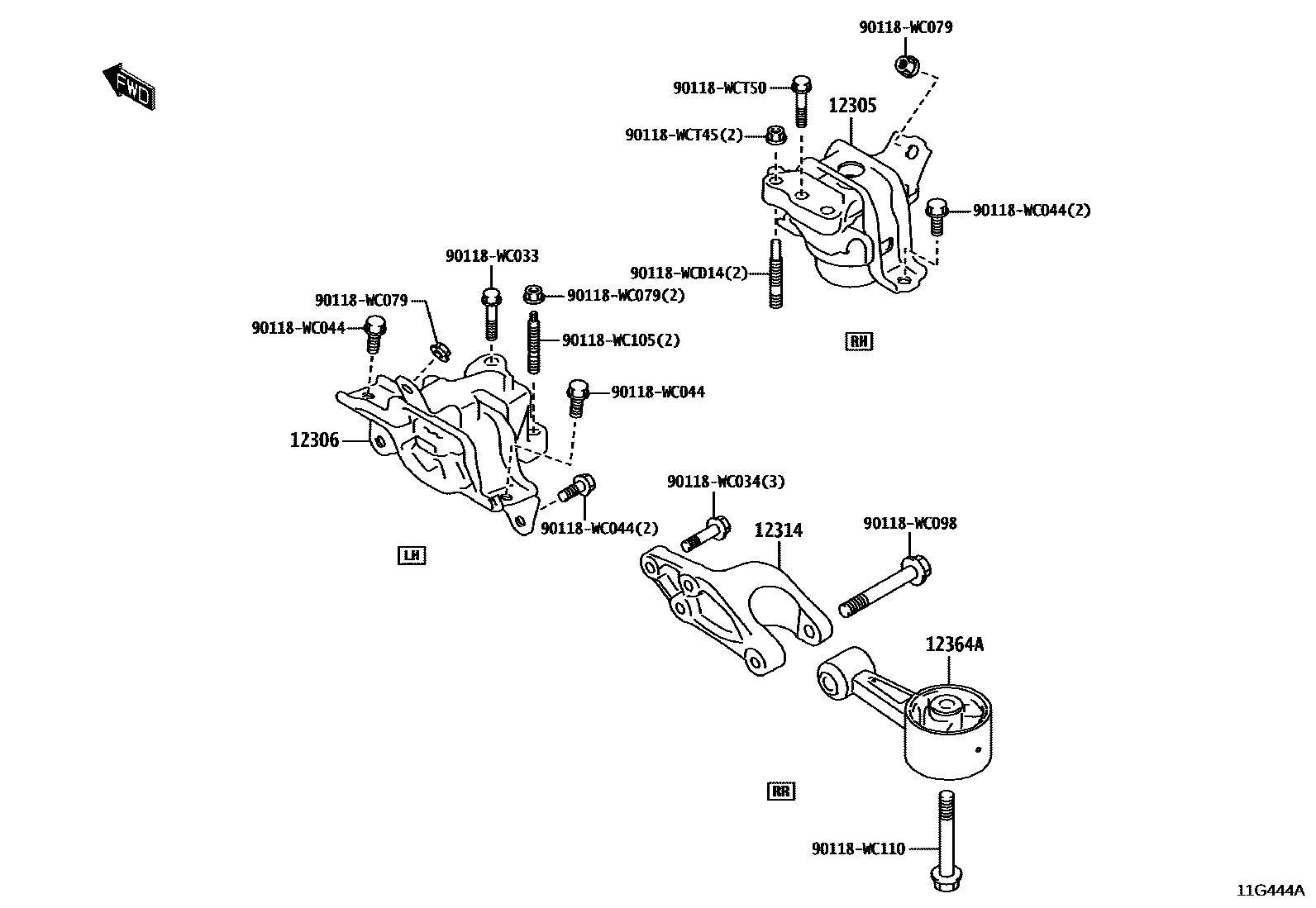

Toyota GLANZA — MOUNTING
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
main12305-WC004
12306INSULATOR SUB-ASSY, ENGINE MOUNTING, LH
main12306-WC009
12314BRACKET, ENGINE LATERAL CONTROL ROD
main12313-WC001
12364AROD, ENGINE LATERAL CONTROL
90118WC033
main90118-WC033
90118WC034
main90118-WC034
90118WC044
main90118-WC044
90118WC079
main90118-WC079
90118WC098
main90118-WC098
90118WC105
main90118-WC105
90118WC110
main90118-WC110
90118WCD14
main90118-WCD14
90118WCT45
main90118-WCT45
90118WCT50
main90118-WCT50
14 parts on this diagram · 1 diagram in section
MOUNTING for Toyota GLANZA
This section contains 14 genuine Toyota parts for the MOUNTING system of the Toyota GLANZA. Key components include: INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, INSULATOR SUB-ASSY, ENGINE MOUNTING, LH, BRACKET, ENGINE LATERAL CONTROL ROD, ROD, ENGINE LATERAL CONTROL.
