Toyota GLANZA — MAT & CARPET

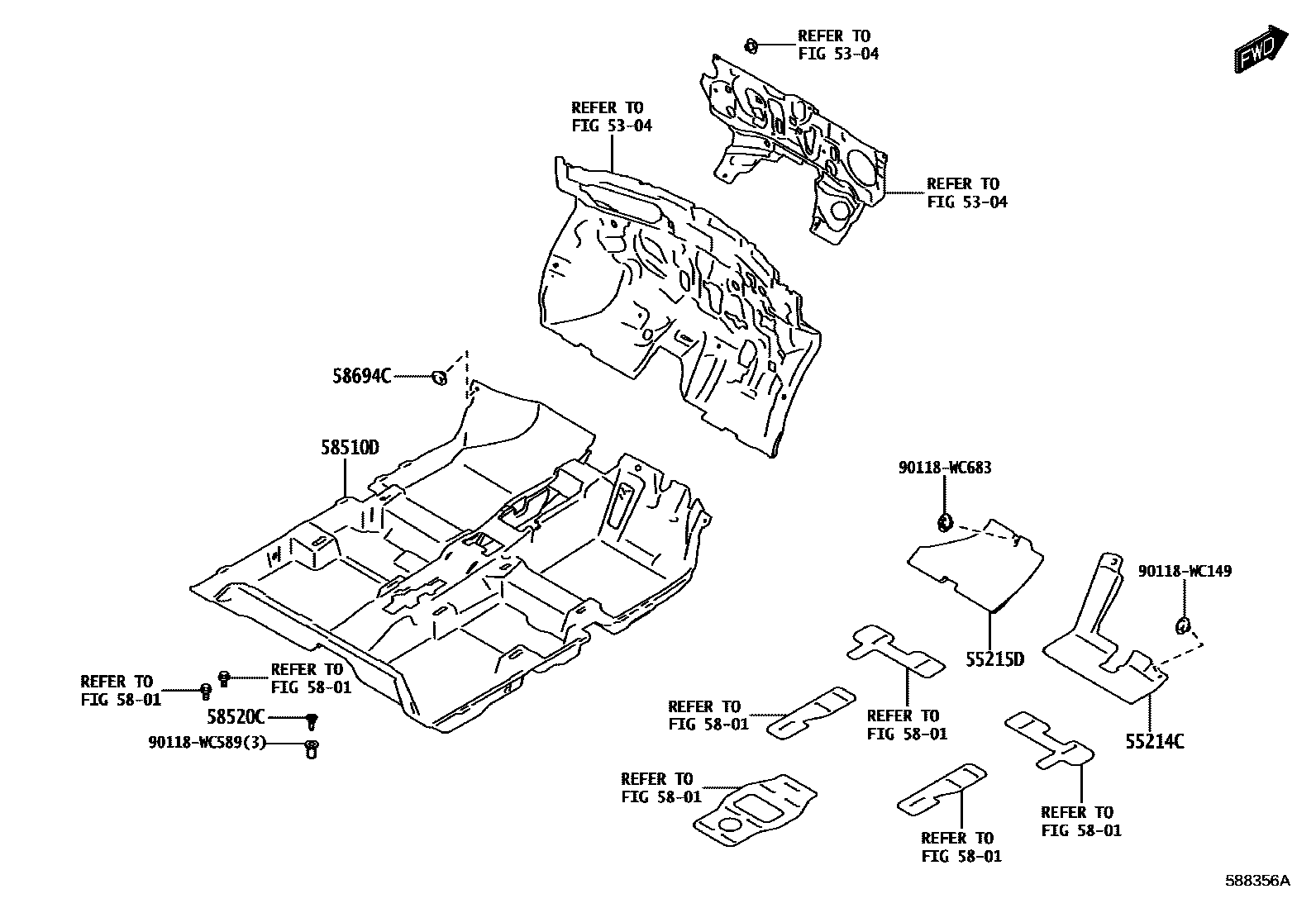

Parts diagram
5304FRONT FENDER APRON & DASH PANEL
→ Go to FIG 53-04
55214CPAD, DASH PANEL INSULATOR, NO.2
main90118-WCF45i202202
POS.1; POS.101; POS.2; POS.20; POS.25; POS.26; POS.3; POS.31; POS.36; POS.38; POS.45; POS.46; POS.51; POS.56; POS.57; POS.62; POS.70; POS.75; POS.79; POS.82; POS.83; POS.88; POS.95; POS.96
55215DPAD, DASH PANEL INSULATOR, NO.3
main55214-WC005i202202
POS.1; POS.101; POS.2; POS.20; POS.25; POS.26; POS.3; POS.31; POS.36; POS.38; POS.45; POS.46; POS.51; POS.56; POS.57; POS.62; POS.70; POS.75; POS.79; POS.82; POS.83; POS.88; POS.95; POS.96
5801FLOOR PAN & LOWER BACK PANEL
→ Go to FIG 58-01
58510DCARPET ASSY, FLOOR, FRONT
main58510-WC019i202202
POS.1; POS.101; POS.2; POS.20; POS.25; POS.26; POS.3; POS.31; POS.36; POS.38; POS.45; POS.46; POS.51; POS.56; POS.57; POS.62; POS.70; POS.75; POS.79; POS.82; POS.83; POS.88; POS.95; POS.96
main58510-WC020i202210
POS.106; POS.107; POS.108; POS.17; POS.4; POS.42; POS.43; POS.44; POS.67; POS.68; POS.69; POS.7; POS.80; POS.93; POS.94
58520CCLIP(FOR FRONT FLOOR CARPET)
main90118-WC252×3i202202
POS.1; POS.101; POS.2; POS.20; POS.25; POS.26; POS.3; POS.31; POS.36; POS.38; POS.45; POS.46; POS.51; POS.56; POS.57; POS.62; POS.70; POS.75; POS.79; POS.82; POS.83; POS.88; POS.95; POS.96
58694CGROMMET(FOR MAT SET PLATE)
main90118-WC149×2i202202
POS.1; POS.101; POS.2; POS.20; POS.25; POS.26; POS.3; POS.31; POS.36; POS.38; POS.45; POS.46; POS.51; POS.56; POS.57; POS.62; POS.70; POS.75; POS.79; POS.82; POS.83; POS.88; POS.95; POS.96
90118WC149
main90118-WC149
90118WC589
main90118-WC589
90118WC683
main90118-WC683

10 parts on this diagram · 2 diagrams in section

MAT & CARPET for Toyota GLANZA

This section contains 14 genuine Toyota parts for the MAT & CARPET system of the Toyota GLANZA. Key components include: FRONT FENDER APRON & DASH PANEL, PAD, DASH PANEL INSULATOR, NO.2, PAD, DASH PANEL INSULATOR, NO.3, FLOOR PAN & LOWER BACK PANEL, CARPET ASSY, FLOOR, FRONT.
