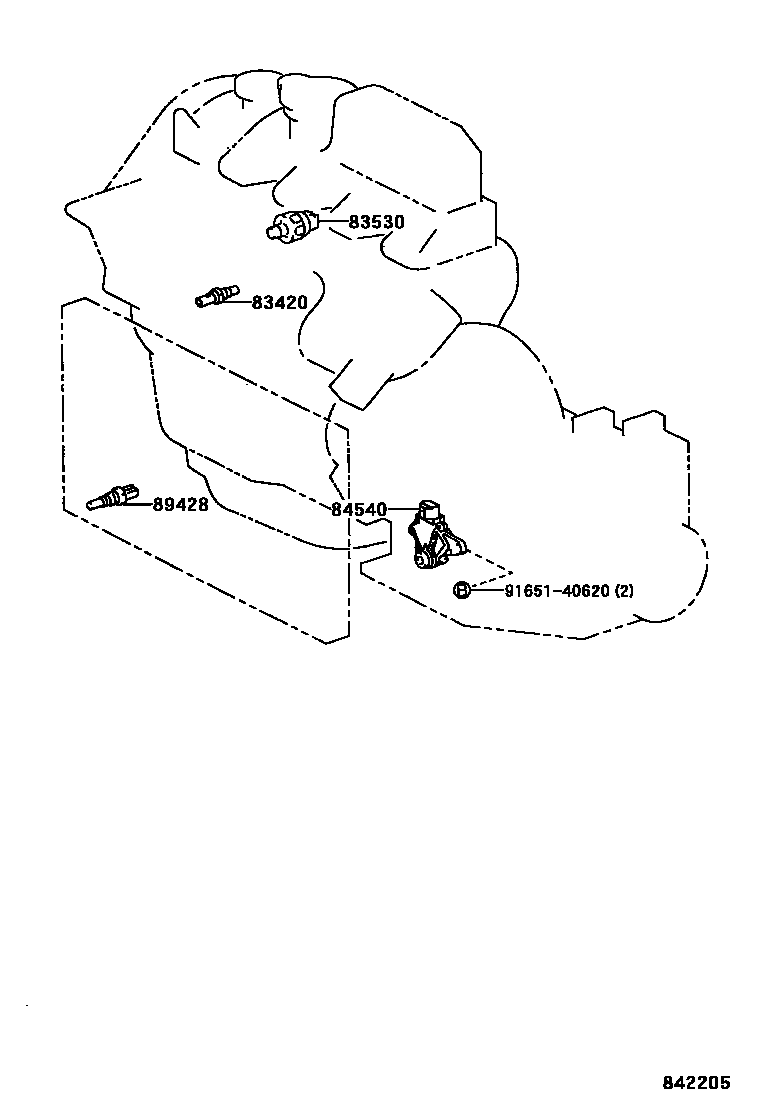

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iCXM10199805-200104

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iACM1#,SXM15200104

main83530-60010iCXM10199805-200104

main83530-60020iACM1#,SXM15200104

84540SWITCH ASSY, NEUTRAL START

main84540-12200iSXM10199805-200104

main84540-12210iSXM10199805-200104

main84540-12230iACM1#200104-200409

sub84540-32110

main84540-16050iCXM10,SXM15199805-200104

main84540-52010iSXM15200104-200208

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-20110iCXM10200104

9165140620

main91651-40620

5 parts on this diagram · 13 diagrams in section
