Toyota GAIA — METER
83110SPEEDOMETER ASSY
83128KNOB, TRIP COUNTER
83132CASE, COMBINATION METER
83134COVER, COMBINATION METER, NO.1
83138GLASS, SPEEDOMETER
83145LENS, METER, NO.1
83145BLENS, METER, NO.3
83145CLENS, METER, NO.4
83145DLENS, METER, NO.5
83242TACHOMETER ASSY, ENGINE
83243AGAUGE SUB-ASSY, FUEL RECEIVER
83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
83247PLATE, METER CIRCUIT
83293COMPUTER, TOTAL COUNTER MODULE
83970BUZZER ASSY, REVERSE WARNING
86650GBUZZER ASSY
8316120800CASE, COMBINATION METER MIRROR, NO.1
main83161-20800
9007600001
main90076-00001
9007600002
main90076-00002
9354014012
main93540-14012
9356855016
main93568-55016

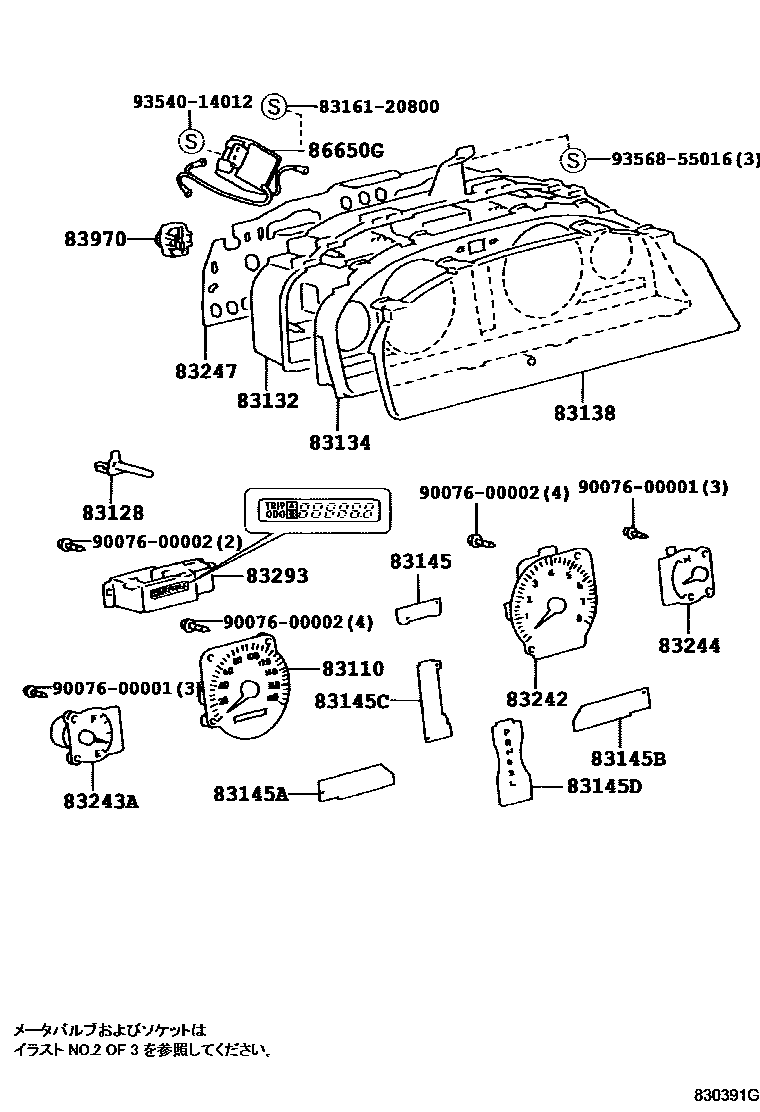

22 parts on this diagram · 7 diagrams in section
METER for Toyota GAIA
This section contains 37 genuine Toyota parts for the METER system of the Toyota GAIA. Key components include: BULB, COMBINATION METER, NO.1, SPEEDOMETER ASSY, KNOB, TRIP COUNTER, CASE, COMBINATION METER, CASE, COMBINATION METER, NO.2.
