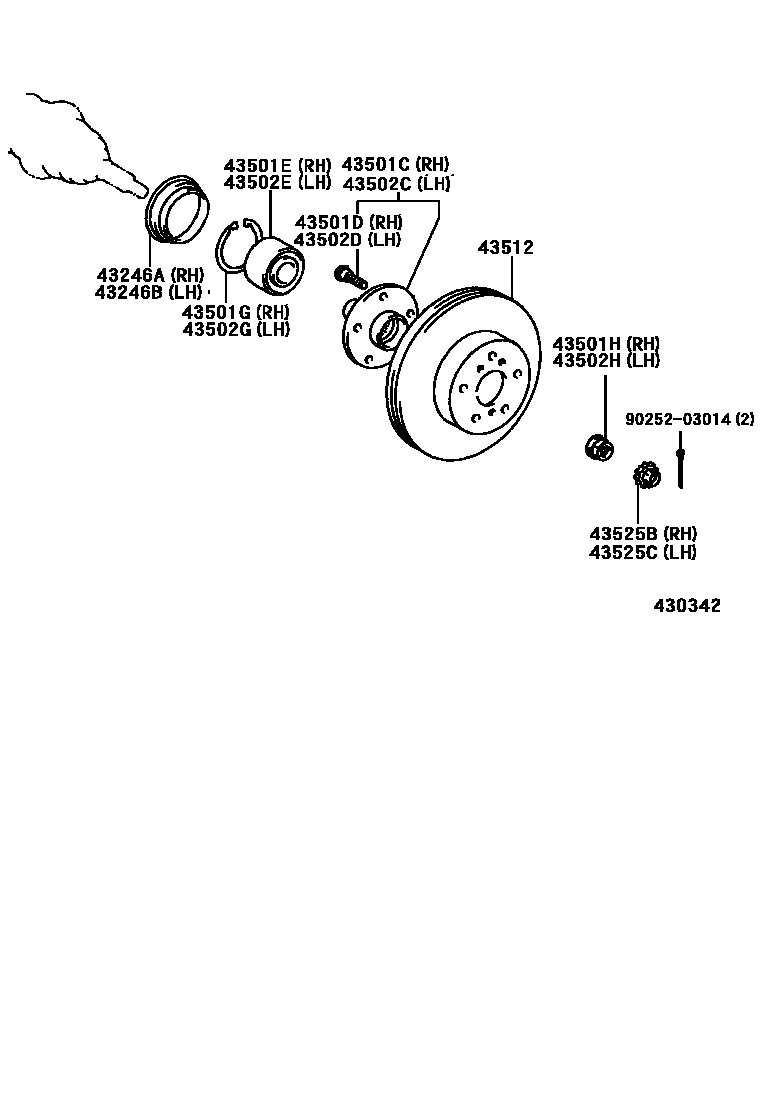

Toyota GAIA — FRONT AXLE HUB

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-32020i199805-200104

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-32020i199805-200104

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-44010i199805-200104

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02070×5i199805-200104

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-43009i199805-200104

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-88001i199805-200104

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90178-22001i199805-200104

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-44010i199805-200104

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02070×5i199805-200104

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-43009i199805-200104

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-88001i199805-200104

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90178-22001i199805-200104

43512DISC, FRONT

main43512-33020×2i199805-200104

main43512-44010×2i200104-200208

main43512-44011×2i200408-200409

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main42428-42010i199805-200104

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main42428-42010i199805-200104

9025203014

main90252-03014

16 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota GAIA

This section contains 16 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota GAIA. Key components include: DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH, DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH).
