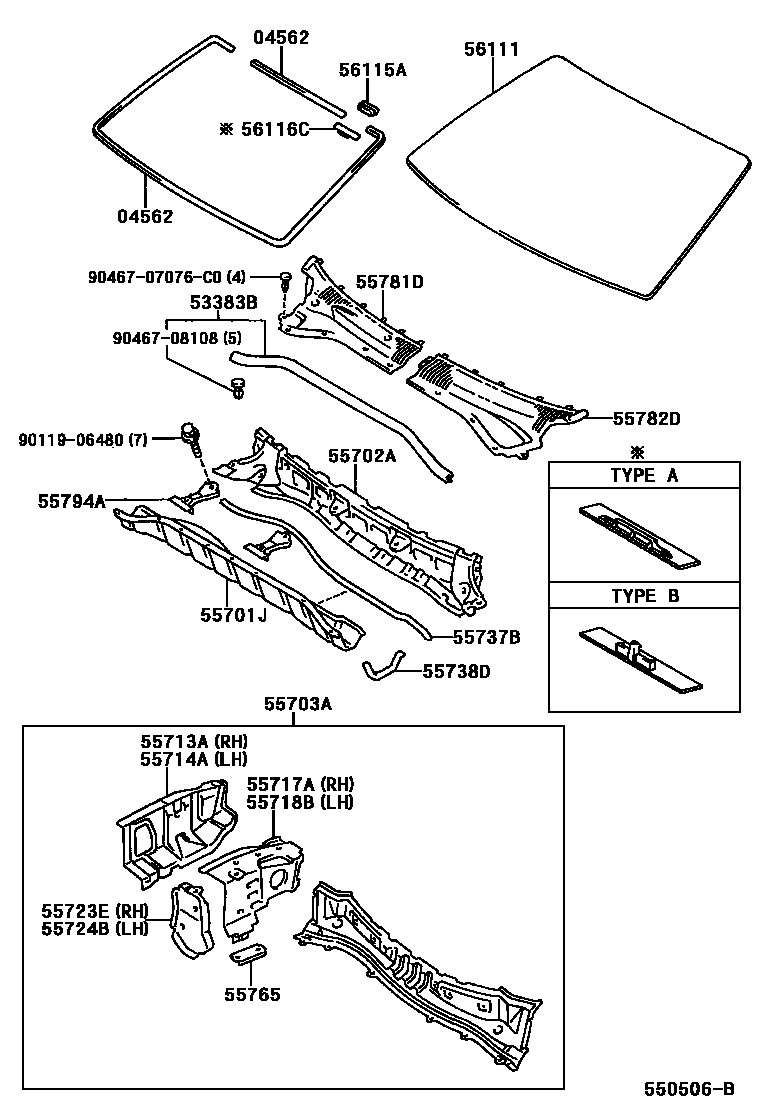

Toyota GAIA — COWL PANEL & WINDSHIELD GLASS
04562DAM KIT, WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT
55703APANEL SUB-ASSY, COWL TOP, INNER
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55717APANEL, COWL TOP SIDE, INNER RH
55718BPANEL, COWL TOP SIDE, INNER LH
55723EGUSSET, FRONT PANEL, RH
55724BGUSSET, FRONT PANEL, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55765BRACKET, HOOD DAMPER MOUNTING
55781DLOUVER, COWL TOP VENTILATOR, RH
55782DLOUVER, COWL TOP VENTILATOR, LH
55794ABRACKET, WEATHERSTRIP WIPER PIVOT GUIDE, NO.2
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
9011906480
main90119-06480
9046707076C0
main90467-07076C0
9046708108
main90467-08108
23 parts on this diagram · 1 diagram in section
COWL PANEL & WINDSHIELD GLASS for Toyota GAIA
This section contains 23 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota GAIA. Key components include: DAM KIT, WINDSHIELD GLASS, SEAL, HOOD TO COWL TOP, PANEL SUB-ASSY, COWL TOP, OUTER, PANEL SUB-ASSY, COWL TOP, OUTER FRONT, PANEL SUB-ASSY, COWL TOP, INNER.
