Toyota GAIA — ARMREST & VISOR

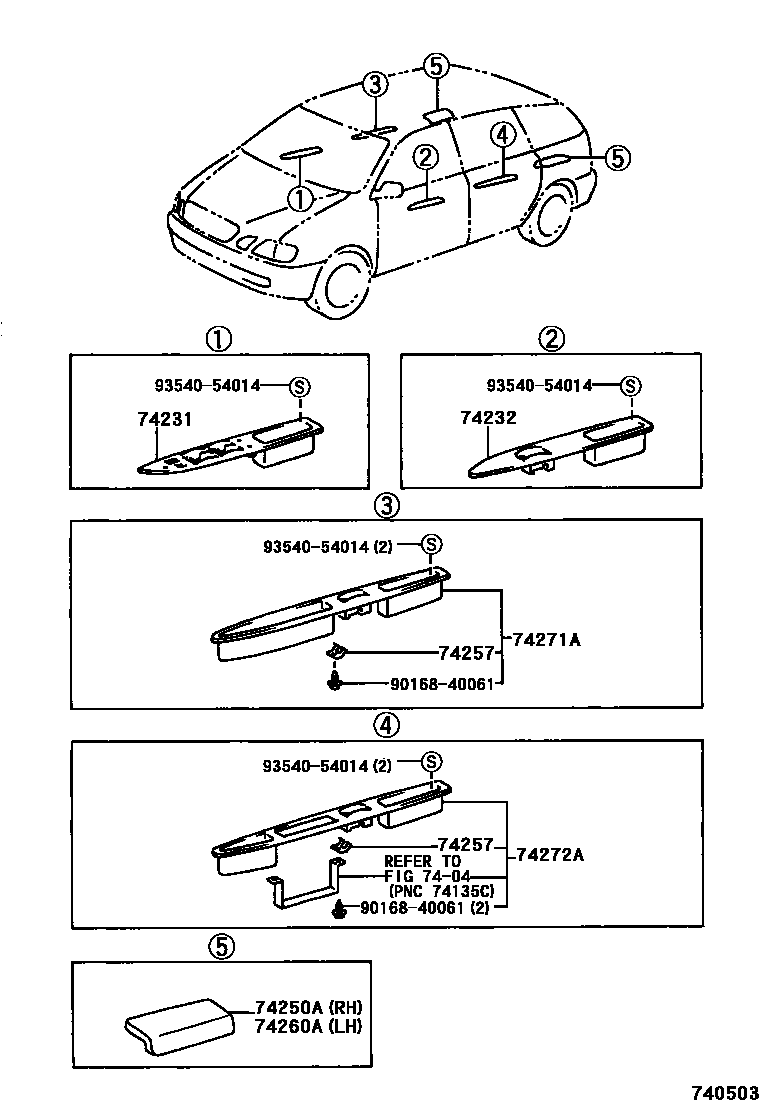

Parts diagram

7404ASH RECEPTACLE

→ Go to FIG 74-04

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-44040i199805-200104

main74231-44050i199805-200104

main74231-44120i200004-200104

main74231-44130i200004-200104

main74231-44140i200104-200208

main74231-44150i200104-200208

main74231-44160i200104-200409

main74231-44170i200104-200208

main74231-44210i200208-200405

main74231-44220i200212-200309

main74231-44230i200310-200409

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-44040i199805-200104

main74232-44080i200004-200104

main74232-44090i200104

main74232-44100i200104

main74232-44140i200208-200405

main74232-44150i200212-200309

main74232-44170i200310-200409

74250AARMREST ASSY, QUARTER, RH

main74250-44080-A0i199805-200104

main74250-44090-A0i199805-200004

main74250-44090-A1i200004-200104

main74250-44120-A0i199805-200104

main74250-44140-A0i199810-199903

main74250-44140-A1i199910-200004

main74250-44140-B0i200004-200104

main74250-44140-B1i200104-200409

main74250-44230-A0i200010-200104

main74250-44240-A0i200104-200409

main74250-44250-A0i200104-200409

main74250-44280-B0i200208-200405

main74250-44320-A0i200310-200409

74257SPRING, ARMREST, NO.1

main74257-44010×2i199805-200104

74260AARMREST ASSY, QUARTER, LH

main74260-44050-A0i199805-200104

main74260-44060-A0i199805-200004

main74260-44060-A1i200004-200104

main74260-44090-A0i200104-200208

main74260-44100-A0i199810-199903

main74260-44100-A1i199910-200004

main74260-44100-B0i200004-200104

main74260-44100-B1i200104-200409

main74260-44180-A0i200010-200104

main74260-44190-A0i200104-200409

main74260-44200-A0i200104-200409

main74260-44230-B0i200208-200405

main74260-44270-A0i200310-200409

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-44040i199805-200104

main74271-44090i200004-200104

main74271-44120i200104

main74271-44130i200104

main74271-44140i200208-200405

main74271-44150i200212-200309

main74271-44160i200310-200409

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-44030i199805-200104

main74272-44080i200004-200104

main74272-44110i200104

main74272-44120i200104

main74272-44130i200208-200405

main74272-44140i200212-200309

main74272-44150i200310-200409

9016840061

main90168-40061

9354054014

main93540-54014

10 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota GAIA

This section contains 21 genuine Toyota parts for the ARMREST & VISOR system of the Toyota GAIA. Key components include: ASH RECEPTACLE, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, ARMREST ASSY, QUARTER, RH, SPRING, ARMREST, NO.1.
