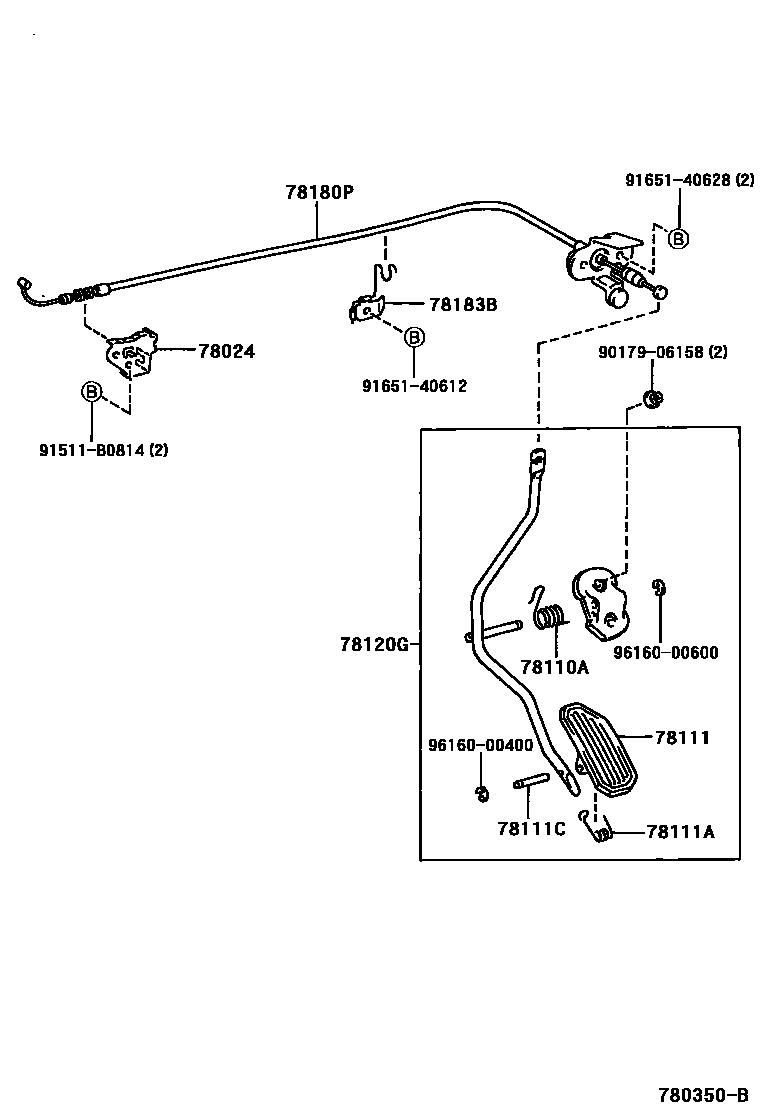

Toyota GAIA — ACCELERATOR LINK
78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78111PEDAL, ACCELERATOR
78111ASPRING (FOR ACCELERATOR PEDAL)
78111CPIN (FOR ACCELERATOR PEDAL)
78120GROD ASSY, ACCELERATOR PEDAL
78183BCLAMP, ACCELERATOR CONTROL CABLE
9017906158
main90179-06158
91511B0814
main91511-B0814
9165140612
main91651-40612
9165140628
main91651-40628
9616000400
main96160-00400
9616000600
main96160-00600
14 parts on this diagram · 3 diagrams in section
ACCELERATOR LINK for Toyota GAIA
This section contains 21 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota GAIA. Key components include: PEDAL ASSY, ACCELERATOR, BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, SPRING (FOR ACCELERATOR PEDAL ROD), BUSH (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR.
