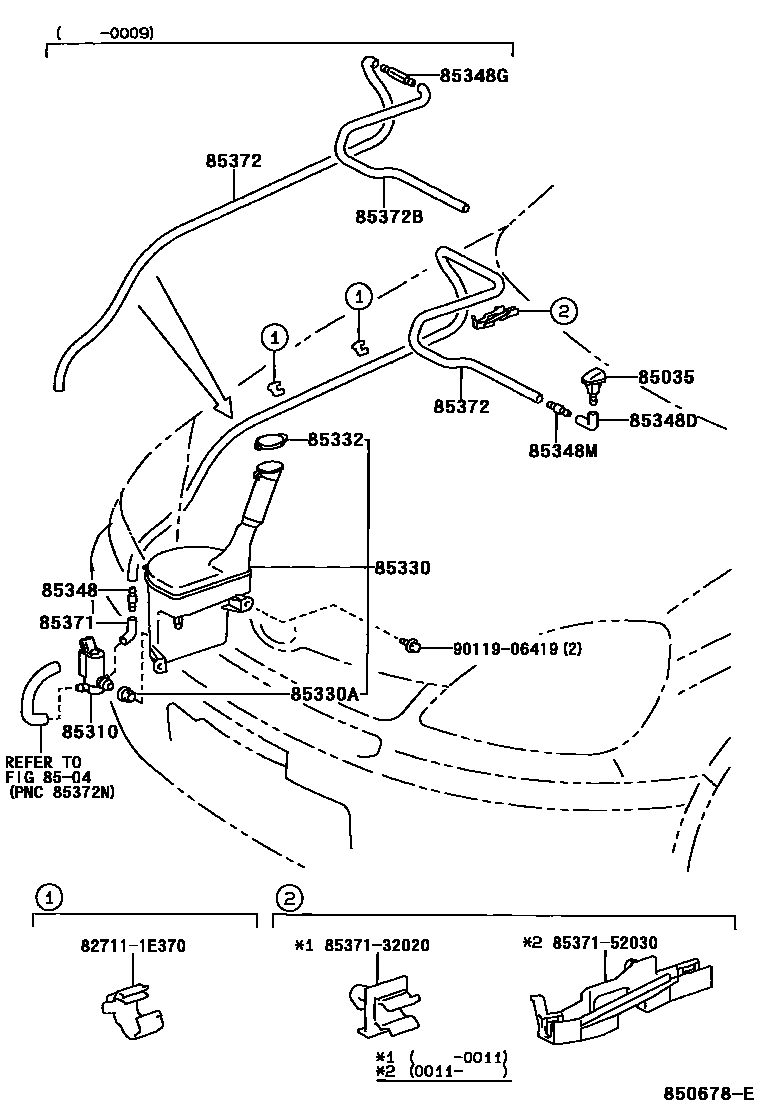

Toyota FUNCARGO — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-52040iNCP2#200208-200509

sub85381-52180

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10290iNCP2#199908-199912

main85330-20460iNCP2#200208-200509

sub85330-20461

main85330-52030iNCP2#200101-200110

85330JAR ASSY, WINDSHIELD WASHER

main85315-52050iNCP2#199908-200208

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iNCP2#199908-200208

85332CAP, WINDSHIELD WASHER JAR

main85316-42011iNCP2#199908-200208

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iNCP2#199908-200208

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85336-12230iNCP2#199908-200208

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-32150iNCP2#199908-200009

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122iNCP2#199908-200208

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iNCP2#199908-200208

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33589iNCP2#200009-200208

main90446-07001iNCP2#199908-200009

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iNCP2#199908-200009

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

8537132020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-32020

8537152030HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-52030

9011906419

main90119-06419

17 parts on this diagram · 1 diagram in section
