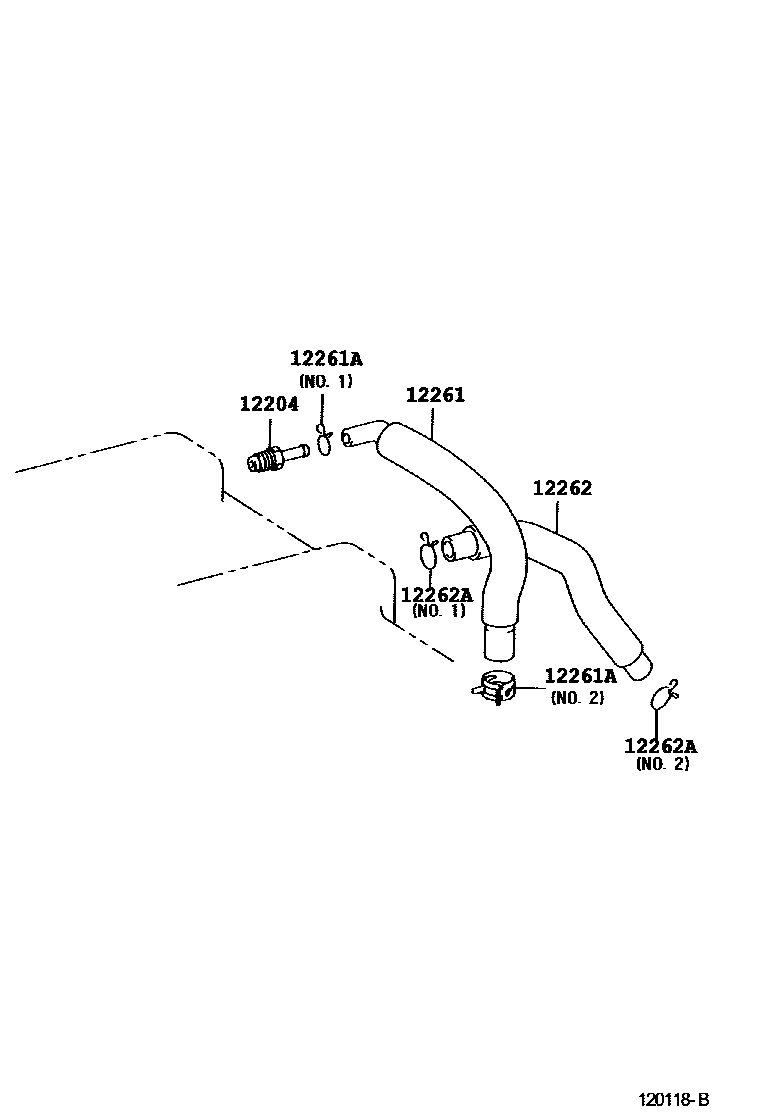

Toyota FUNCARGO — VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-21010i1NZFE,2NZFE..NCP2#200208-200401

main12204-21011i1NZFE,2NZFE..NCP2#200401

12261HOSE, VENTILATION

main12261-21030i1NZFE,2NZFE..NCP2#199908-200208

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-15019i1NZFE,2NZFE..NCP2#199908-200010

main90467-15120i1NZFE,2NZFE..NCP2#200010-200208

main90467-23007i1NZFE,2NZFE..NCP2#199908-200204

main90467-24038i1NZFE,2NZFE..NCP2#200304-200509

main96134-42300i1NZFE,2NZFE..NCP2#200208-200304

12262HOSE, VENTILATION, NO.2

main12262-21020i1NZFE,2NZFE..NCP2#199908-200208

12262ACLIP(FOR VENTILATION HOSE NO.2)

main16581-21050i1NZFE,2NZFE..NCP2#200408-200509

main90467-21004×2i1NZFE,2NZFE..NCP2#199908-200208

5 parts on this diagram · 1 diagram in section
