Toyota FUNCARGO — STANDARD TOOL

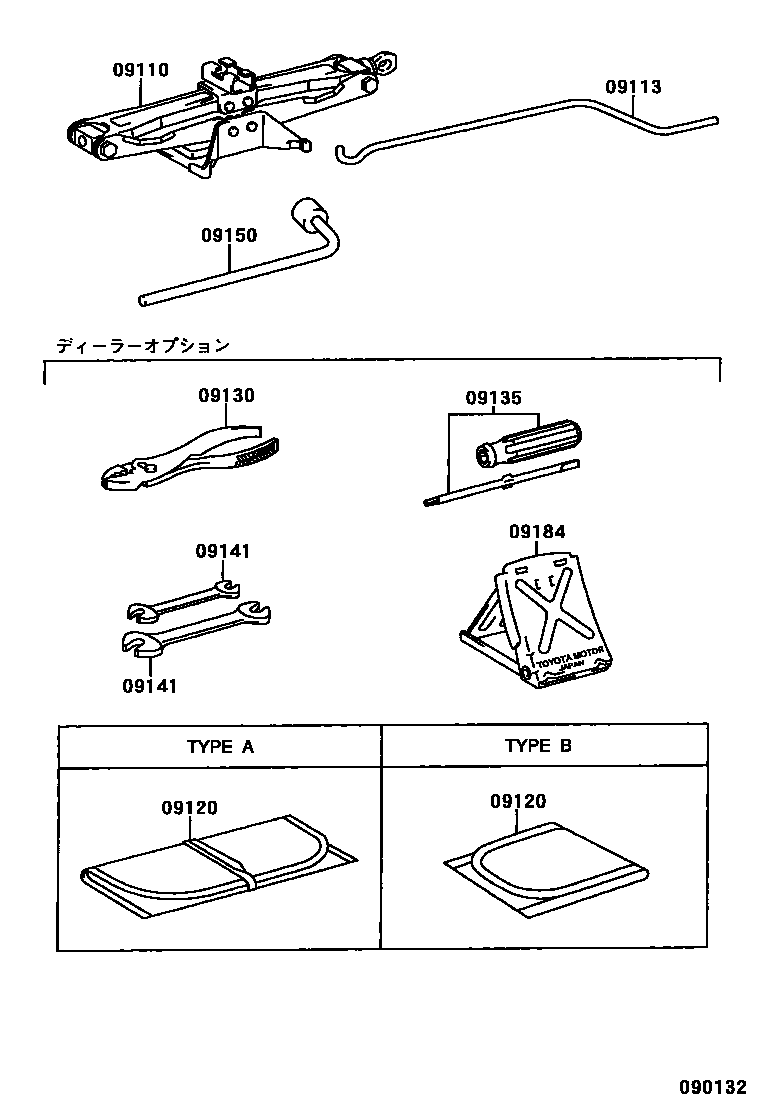

Parts diagram

09110JACK ASSY

main09111-52010i200208-200509

09113HANDLE, JACK

main09113-52010i199908-200208

09120BAG, TOOL

main09120-16030i200208-200509

main09120-48010i200008-200208

09130PLIERS

main99913-11500i199908-200208

09135DRIVER, SCREW

main99915-10700i199908-200208

09141SPANNER

main99914-10810i199908-200208

main99914-11214i199908-200208

09150WRENCH, HUB NUT BOX

main09150-40010i199908-200208

09184STOPPER, WHEEL

main09184-00010i199908-200208

8 parts on this diagram · 1 diagram in section
