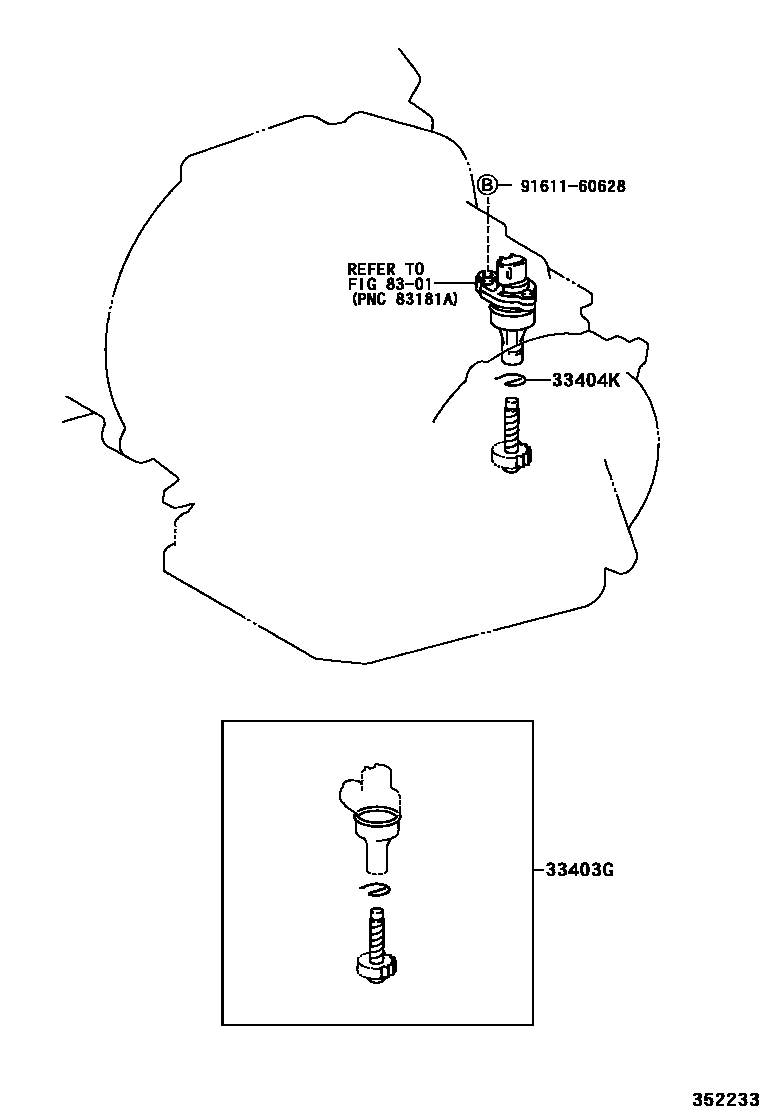

Toyota FUNCARGO — SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-59015i199908-200509

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005i199908-200509

8301METER

→ Go to FIG 83-01

9161160628

main91611-60628

4 parts on this diagram · 1 diagram in section

SPEEDOMETER DRIVEN GEAR (ATM) for Toyota FUNCARGO

This section contains 4 genuine Toyota parts for the SPEEDOMETER DRIVEN GEAR (ATM) system of the Toyota FUNCARGO. Key components include: GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM), CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE), METER.
