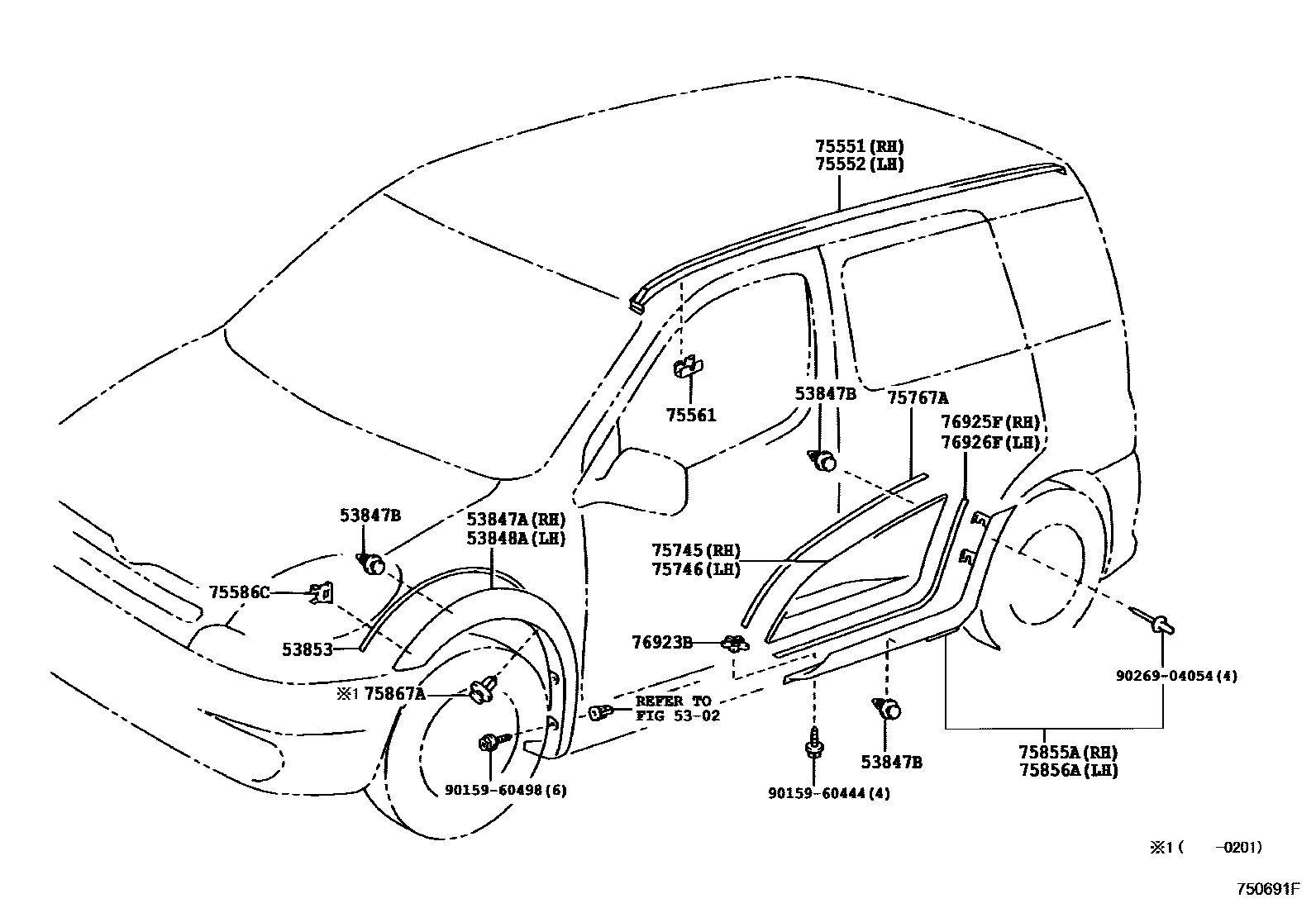

Toyota FUNCARGO — SIDE MOULDING
5302
53847AEXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, RH
sub53847-52030
WHITE,068
SILVER ME,KD6 ,KF2 ,199
GRAY ME.,KD7 ,KE1 ,KE3 ,KE7 ,KF4 ,KF5 ,KF6
WHITE,068
GRAY ME.,KK4 ,KK5 ,KK6 ,KK7 ,KK8 ,KK9
SILVER M.M.,1E7 ,KJ8 ,KK1 ,KK2
BLACK MC.,209
SUPER RED 5,3P0
CHAMPAGNE ME.,583
DARK GREEN MC.,6R4
AQUA M.M.,774
BLUE MC.,8M6
53847BCLIP, FRONT WHEEL OPENING EXTENSOION
53848AEXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, LH
sub53848-52030
WHITE,068
SILVER ME,KF2 ,KJ6 ,199
GRAY ME.,KD7 ,KE1 ,KE3 ,KE7 ,KF4 ,KF5 ,KF6
WHITE,068
GRAY ME.,KK4 ,KK5 ,KK6 ,KK7 ,KK8 ,KK9
SILVER M.M.,1E7 ,KJ8 ,KK1 ,KK2
BLACK MC.,209
SUPER RED 5,3P0
CHAMPAGNE ME.,583
DARK GREEN MC.,6R4
AQUA M.M.,774
BLUE MC.,8M6
53853PAD, FRONT WHEEL OPENING EXTENSION, NO.3
LT. GRAY,KD6 ,KD7 ,KE1 ,KE3 ,KE7 ,KF2 ,KF4 ,KF5 ,KF6 ,040 ,199 ,209 ,3P0 ,583 ,584,6R4 ,6S2 ,8M6
BLACK,209 ,3P0 ,6R4 ,8M6
75551MOULDING, ROOF DRIP SIDE FINISH, RH
75552MOULDING, ROOF DRIP SIDE FINISH, LH
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75586CRETAINER, FRONT WHEEL OPENING EXTENSOION
75745MOULDING, REAR DOOR OUTSIDE, LOWER RH
sub75745-52050
WHITE,068
SILVER ME,KF2 ,KJ6 ,199
GRAY ME.,KD7 ,KE1 ,KE3 ,KE7 ,KF4 ,KF5 ,KF6
WHITE,068
GRAY ME.,KK4 ,KK5 ,KK6 ,KK7 ,KK8 ,KK9
SILVER M.M.,1E7 ,KJ8 ,KK1 ,KK2
BLACK MC.,209
SUPER RED 5,3P0
CHAMPAGNE ME.,583
DARK GREEN MC.,6R4
AQUA M.M.,774
BLUE MC.,8M6
75746MOULDING, REAR DOOR OUTSIDE, LOWER LH
sub75746-52050
WHITE,068
SILVER ME,KD6 ,KF2 ,199
GRAY ME.,KD7 ,KE1 ,KE3 ,KE7 ,KF4 ,KF5 ,KF6
WHITE,068
GRAY ME.,KK4 ,KK5 ,KK6 ,KK7 ,KK8 ,KK9
SILVER M.M.,1E7 ,KJ8 ,KK1 ,KK2
BLACK MC.,209
SUPER RED 5,3P0
CHAMPAGNE ME.,583
DARK GREEN MC.,6R4
AQUA M.M.,774
BLUE MC.,8M6
75767APAD, REAR DOOR MOULDING, NO.1
LT. GRAY,KD6 ,KD7 ,KE1 ,KE3 ,KE7 ,KF2 ,KF4 ,KF5 ,KF6 ,040 ,199 ,209 ,3P0 ,583 ,584,6R4 ,6S2 ,8M6
BLACK,209 ,3P0 ,6R4 ,8M6
75855AMOULDING, ROCKER PANEL, REAR RH
sub75855-52902
75856AMOULDING, ROCKER PANEL, REAR LH
sub75856-52902
WHITE,068
SILVER ME,KD6 ,KF2
GRAY ME,KD7 ,KE1 ,KE3 ,KE7 ,KF4 ,KF5 ,KF6
75867ACLIP, ROCKER PANEL MOULDING
76923BRETAINER, SIDE MUDGUARD
76925FPROTECTOR, SIDE MUDGUARD, RH
LT. GRAY,KJ8 ,KK1 ,KK2 ,KK4 ,KK5 ,KK6 ,KK7 ,KK8 ,KK9
BLACK,209 ,3P0 ,6R4 ,8M6
76926FPROTECTOR, SIDE MUDGUARD, LH
LT. GRAY,068 ,1E7 ,209 ,3P0 ,583 ,6R4 ,774 ,8M6 ,KJ8 ,KK1 ,KK2 ,KK4 ,KK5 ,KK6 ,KK7,KK8 ,KK9
BLACK,209 ,3P0 ,6R4 ,8M6
9015960444
main90159-60444
9015960498
main90159-60498
9026904054
main90269-04054
21 parts on this diagram · 2 diagrams in section
