Toyota FUNCARGO — SIDE MEMBER

0001 1������� 0002 1������� 0003 1�������� 0004 1��(��-������� ������)

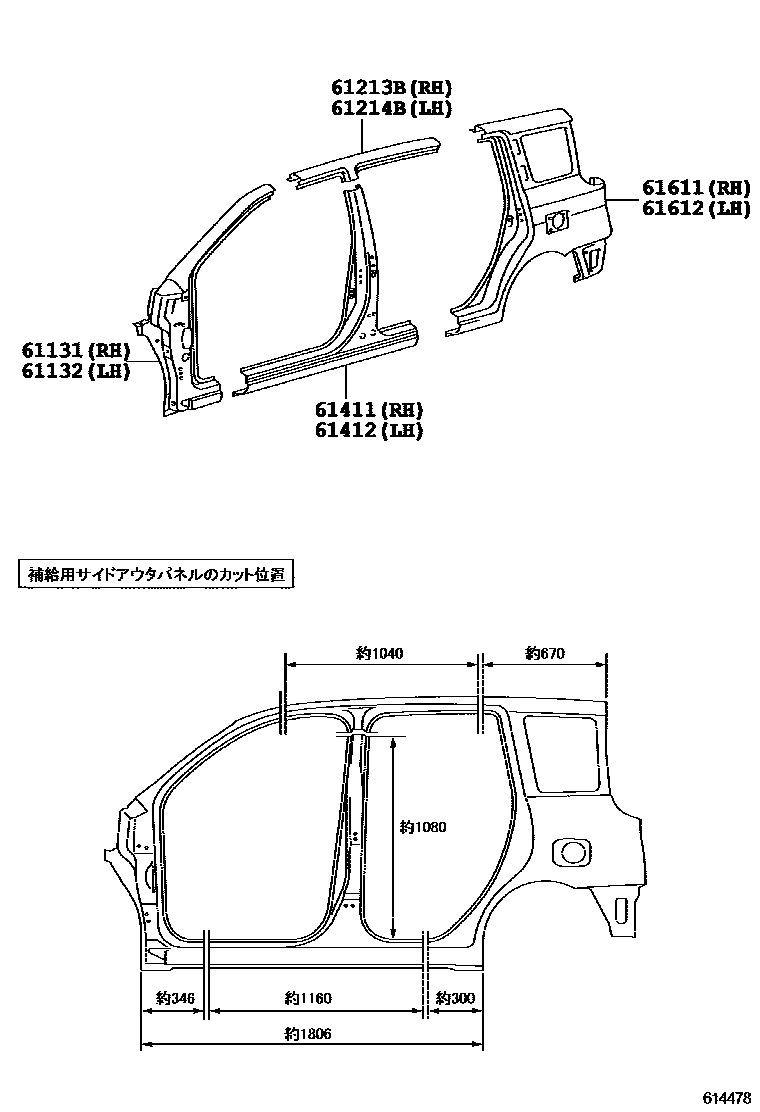

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-52020iNCP2#199908-200208

main61131-52030iNCP2#200208-200509

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-52020iNCP2#199908-200208

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-52020iNCP2#199908-200208

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-52020iNCP2#199908-200208

61411PANEL, ROCKER, OUTER RH

main61411-52030iNCP2#199908-200208

main61411-52040iNCP2#..G,X200208-200509

61412PANEL, ROCKER, OUTER LH

main61412-52030iNCP2#199908-200208

main61412-52040iNCP2#199908-200208

61611PANEL, QUARTER, RH

main61601-52020iNCP2#200208-200509

main61601-52030iNCP2#..G,X200208-200509

61612PANEL, QUARTER, LH

main61602-52030iNCP2#200208-200509

main61602-52040iNCP2#199908-200208

8 parts on this diagram · 4 diagrams in section
