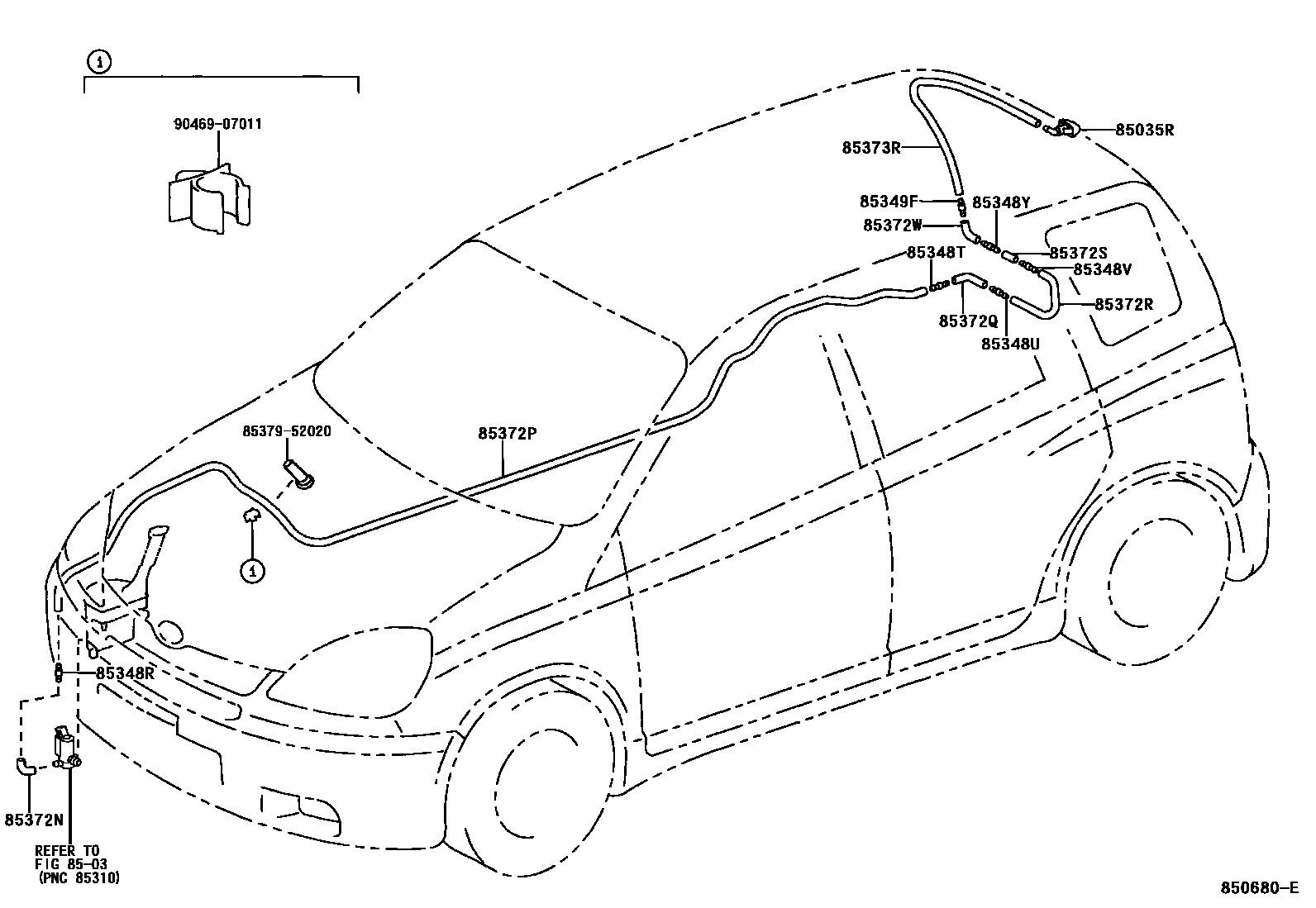

Toyota FUNCARGO — REAR WASHER
8503WINDSHIELD WASHER
85035RNOZZLE SUB-ASSY, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349FJOINT, REAR WASHER HOSE, NO.1
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
8537952020JOINT
main85379-52020
9046907011
main90469-07011
17 parts on this diagram · 4 diagrams in section
REAR WASHER for Toyota FUNCARGO
This section contains 22 genuine Toyota parts for the REAR WASHER system of the Toyota FUNCARGO. Key components include: WINDSHIELD WASHER, NOZZLE SUB-ASSY, REAR WASHER, JOINT, REAR WASHER HOSE, NO.1, JOINT, REAR WASHER HOSE, NO.2, JOINT, REAR WASHER HOSE, NO.3.
