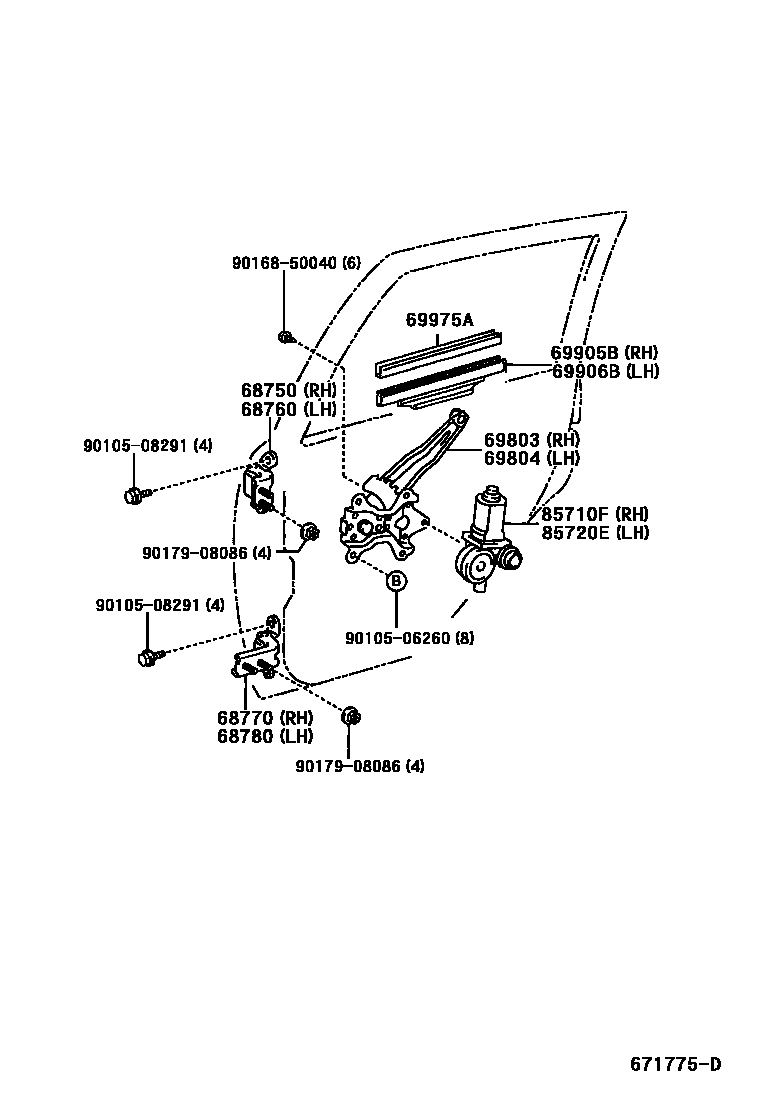

Toyota FUNCARGO — REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-52011i199908-200208

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-52011i199908-200208

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52011i199908-200208

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52011i199908-200208

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-52020i199908-200208

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-52020i199908-200208

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-52020i199908-200208

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-52010i199908-200208

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010×2i199908-200208

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-52030i199908-200011

main85720-52080i200011-200208

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-52040i199908-200011

main85710-52090i200011-200208

9010506260

main90105-06260

9010508291

main90105-08291

9016850040

main90168-50040

9017908086

main90179-08086

15 parts on this diagram · 1 diagram in section

REAR DOOR WINDOW REGULATOR & HINGE for Toyota FUNCARGO

This section contains 15 genuine Toyota parts for the REAR DOOR WINDOW REGULATOR & HINGE system of the Toyota FUNCARGO. Key components include: HINGE ASSY, REAR DOOR, UPPER RH, HINGE ASSY, REAR DOOR, UPPER LH, HINGE ASSY, REAR DOOR, LOWER RH, HINGE ASSY, REAR DOOR, LOWER LH, REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH.
