Toyota FUNCARGO — REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-52050i199908-200208

81550HBULB, TAIL & STOP LAMP

main90981-13044i199908-200509

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011i199908-200509

81550NBULB, BACK UP LAMP

main90981-13043i199908-200509

81551LENS, REAR COMBINATION LAMP, RH

main81551-52050i199908-200208

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-52050i199908-200208

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-52050i199908-200208

main81554-52350i200208-200307

main81554-52351i200308-200509

81555BSOCKET PLUG, NO.1

main90075-60015i199908-200208

main90075-60015i200208-200509

main90075-60017i200208-200509

main90075-60017i199908-200208

main90075-60027i199908-200208

main90075-60027i200208-200509

81560LAMP ASSY, REAR COMBINATION, LH

main81560-52040i199908-200208

81561LENS, REAR COMBINATION LAMP, LH

main81561-52040i199908-200208

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-52050i199908-200208

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81564-52040i199908-200208

main81564-52330i200208-200307

main81564-52331i200308-200509

7611216010

main76112-16010

9017906070

main90179-06070

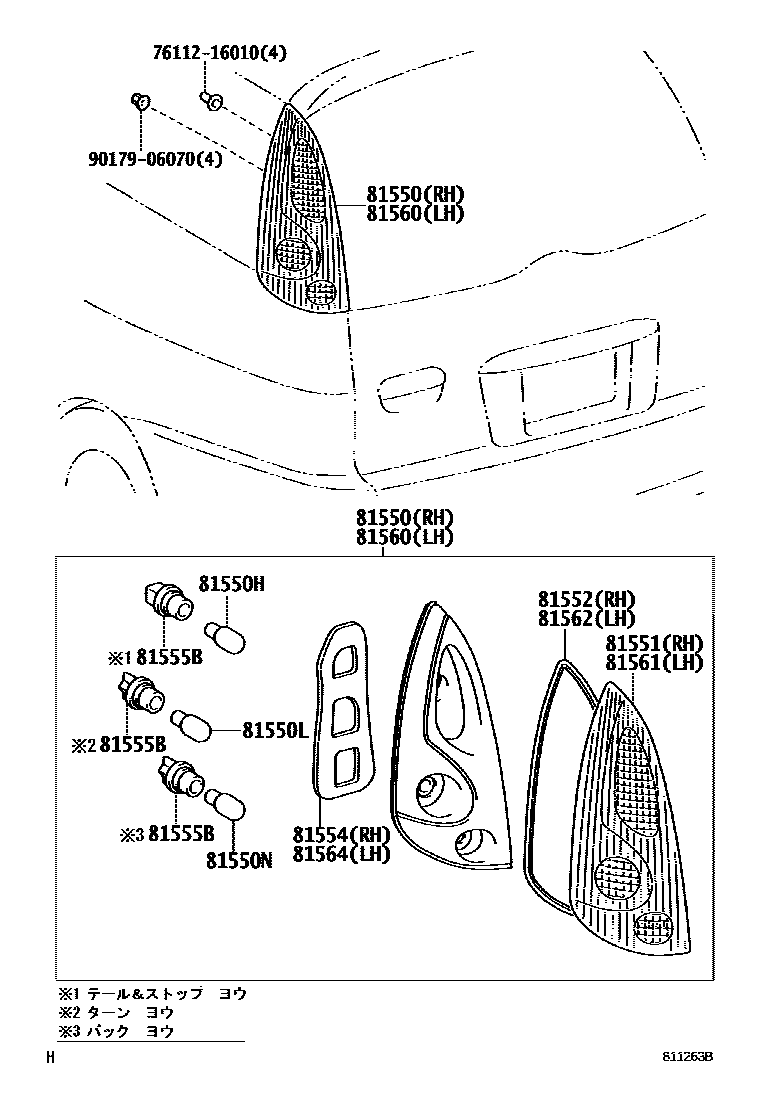

14 parts on this diagram · 2 diagrams in section

REAR COMBINATION LAMP for Toyota FUNCARGO

This section contains 17 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota FUNCARGO. Key components include: LAMP ASSY, REAR COMBINATION, RH, BULB, TAIL & STOP LAMP, BULB, REAR TURN SIGNAL LAMP, BULB, BACK UP LAMP, LENS, REAR COMBINATION LAMP, RH.
