Toyota FUNCARGO — RADIO RECEIVER & AMPLIFIER & CONDENSER

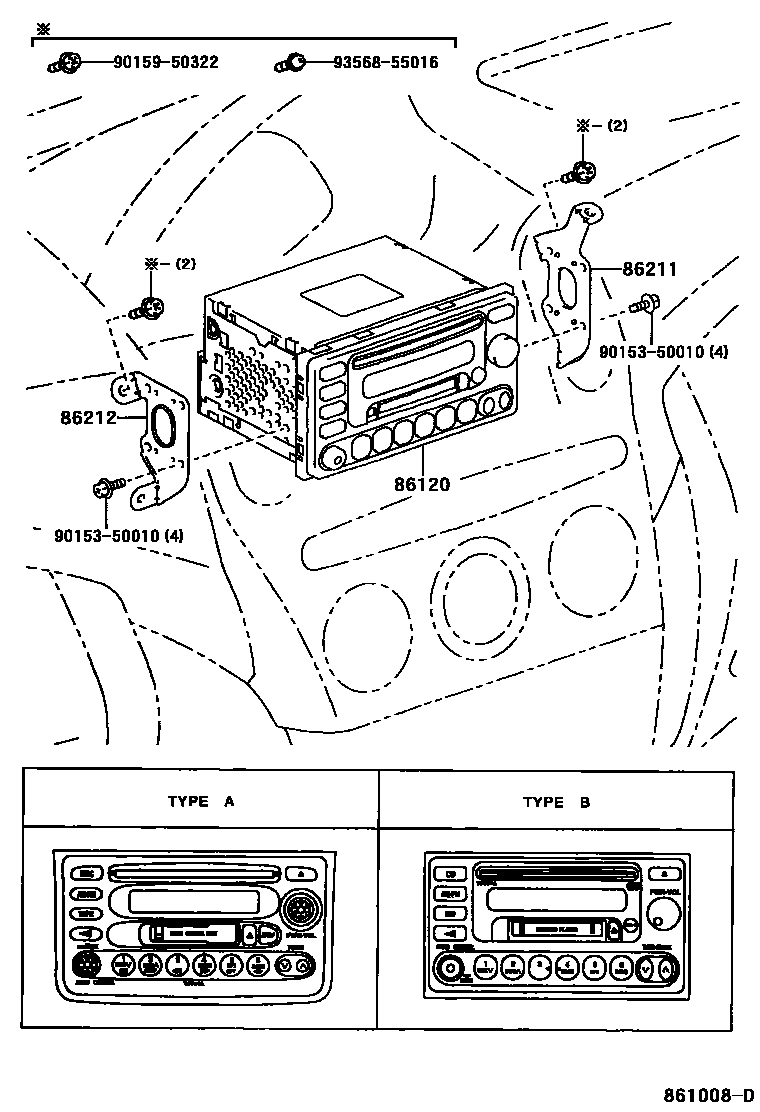

Parts diagram

86120RECEIVER ASSY, RADIO

main86120-52090-C0i199908-200208

main86120-52090-H0i199908-200208

main86120-52110i199908-200208

86211BRACKET, RADIO, NO.1

main86211-52030i199908-200208

main86211-52040i199908-200208

86212BRACKET, RADIO, NO.2

main86212-52030i200208-200509

main86212-52040i199908-200208

9015350010

main90153-50010

9015950322

main90159-50322

9356855016

main93568-55016

6 parts on this diagram · 2 diagrams in section

RADIO RECEIVER & AMPLIFIER & CONDENSER for Toyota FUNCARGO

This section contains 10 genuine Toyota parts for the RADIO RECEIVER & AMPLIFIER & CONDENSER system of the Toyota FUNCARGO. Key components include: CONDENSER, RADIO SETTING, RECEIVER ASSY, RADIO, BRACKET, RADIO, NO.1, BRACKET, RADIO, NO.2.
