Toyota FUNCARGO — PARTIAL ENGINE ASSEMBLY

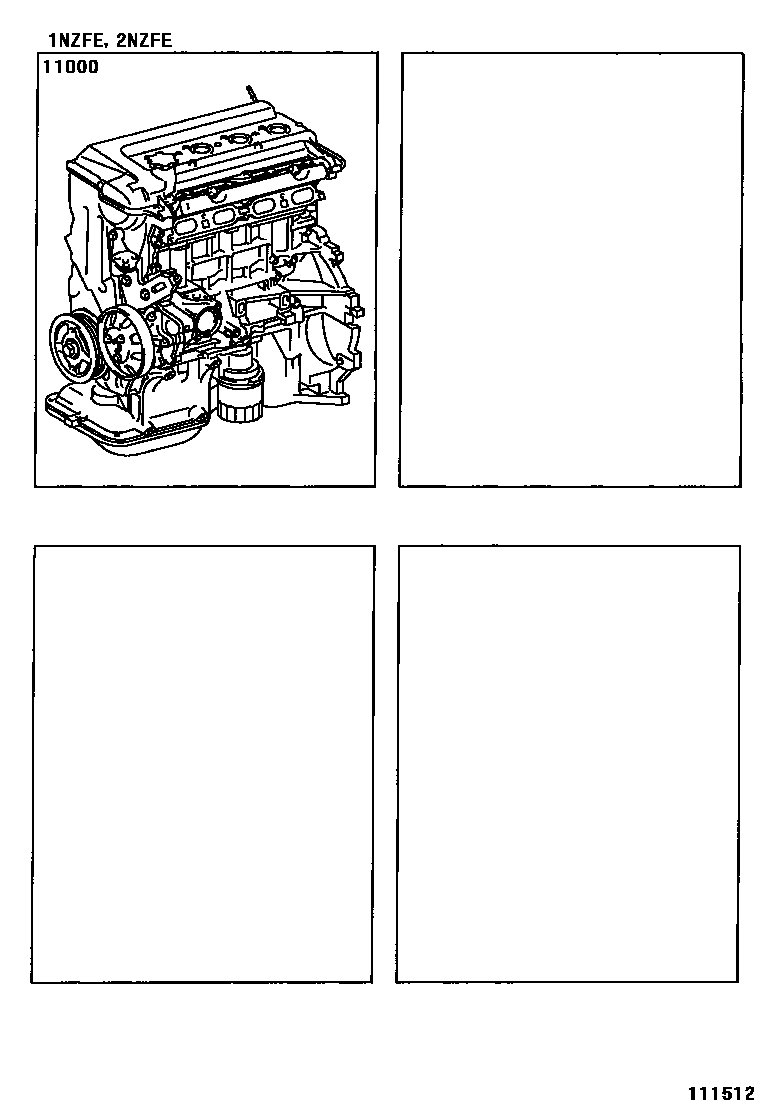

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-21040i199908-200002
main19000-21041i200002-200008
sub19000-21042
main19000-21050i199908-200002
main19000-21051i200002-200008
sub19000-21052
main19000-21160i200008-200208
sub19000-21161
sub12204-21011
main19000-21171i200008-200208
sub19000-21172
sub12204-21011
main19000-21200i200208-200312
sub12204-21011
main19000-21210i200208-200509
sub19000-21621
sub12204-21011
main19000-21631i200312-200509

1 parts on this diagram · 1 diagram in section
